3.175*38.25 Tungsten Carbide Composite Rods High Hardness For PCB Tools

3.175*38.25 Tungsten Carbide Composite Rods High Hardness For PCB Tools

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: Gingte Li
Certification: ISO9001:2015
Model Number: φ3.175*38.25 or others

Payment & Shipping Terms:

Minimum Order Quantity: 10KGs
Price: negotiable
Packaging Details: First paper packing each piece then pack into paper boxes or plastic box,next use exported cartons or wooden cases,or packed as customers'requirement
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 600 tons/year
Get Best Price Contact Now

Detail Information

Material: Contains 100% Virgin Tungsten And Coblat Size: According To Client's Requirement To Customize
Appolication: Suitable For Machining Cast Iron ,aluminum Alloy ,quenched Steels, Brass Est , Widely Used In PCB Micro Drill And Milling Tools Service: 24-hour Online After-sale Service
Quality: HIP Sintering, High Hardness And Durability Shipments: Some Products Are In Stock For Fast Delivery
Color: Sliver Grey Grade: K10 K20 K30 K40
High Light:

cemented carbide rods

,

tungsten carbide bar

Product Description

3.175*38.25 Tungsten Carbide Composite Rods High Hardness For PCB Tools

Cemented carbide rod JU20 3.175*38.25 high strength high hardness high toughness for PCB tools etc




PRODUCT ADVANTAGE:

1. With rich experiences on the product that our product can from client's design and can provde technical support
2. 100% raw meterial and recycle material
3. Hardness,toughness , wear resistance ,durability
4. Strict quality control and assurance system
5. Passed ISO9001:2008 international Quality Management System
6. cheap price with factory wholesale



APPLICATION:



1. With high temperature hardness , for making drills , end mill , reamer ,taps ,burrs etc.

2. Suitable for cast iron ,non-ferrous metals , hard wood , common wood etc

3. High strengh , mainly used for stamping tool can withstand great pressure.

4. For punching ,stamping forging tool under larger stress , fabricating drawing dies of steel tubes and rods under high compressibility ratio.

5. Suitable for machining cast iron ,aluminum alloy ,quenched steels, brass etc,widely used in PCB micro drill and milling tools.



CUSTOMER SERVICE:



1. Our aim is to make every customer satisfied and we can be WIN-WIN

2. Well-trained sales can give you professional suggestions on product

3. Professional sales team 24 hours online service





Feastures:
  • No Pore Pressure Sintering
  • High Strength High Hardness High Toughness
  • Item Complete
  • Stock Available
Product Name Tunsten Carbide Rod
Material cemented carbide
Size  φ3.175*38.25 or others available
Size Tolerance h6 or as customer's request
Color As picture
Recommend Grade GF8 etc
Grain Size Medium Grain
Application for pcb tools
Processing Treatment Clean ground and polished or as customer request.
Product Features Long life,good wear resistance and high hardness.
Certification ISO9001







Grade Performances:



Grade ISO Grade WC % CO % Grain Size Density Hardness T.R.S Applications
(μm) g/cm3 HRA HRC HV N/mm²
GF8 K30 92 8 1.6 14.7 90 75.9 1400 ≥3500 Suitable for machining cast iron,aluminum alloy,quenched steels,brass etc,widely used in PCB micro drill and milling tools.
GF20 K40 80 20 1.2 13.7 84.5 66 900 ≥4200 High strength,mainly used for stamping tool can withstand great pressure.





Grade ISO Grade WC % CO % Grain Size Density Hardness T.R.S Applications
(μm) g/cm3 HRA HRC HV N/mm²
GF6X K10 94 6 0.8 14.9 91.5 78.4 1600 ≥3200 Suitable for steel cast iron,alloy cast iron,refractory steel,alloy steel.
YL10.2 K30 88 10 0.6 14.4 91.5 79.3 1650 ≥3850 With high temperature hardness,widely used in PCB micro drills,for making drills,end mill,reamer,taps,burrs etc.





Size Options:



Type OD(MM) L(MM) Un-ground tolerance Fine ground tolerance
φ1~φ4×L 1~4 38.5 50 100 330 -0.00/+0.30 -0.00+L×1% h6
φ5~φ40×L 5~40 100 310 330 -0.00/+0.6

For any other sizes we are able to custom-made according to clients’ requirements or drawings.

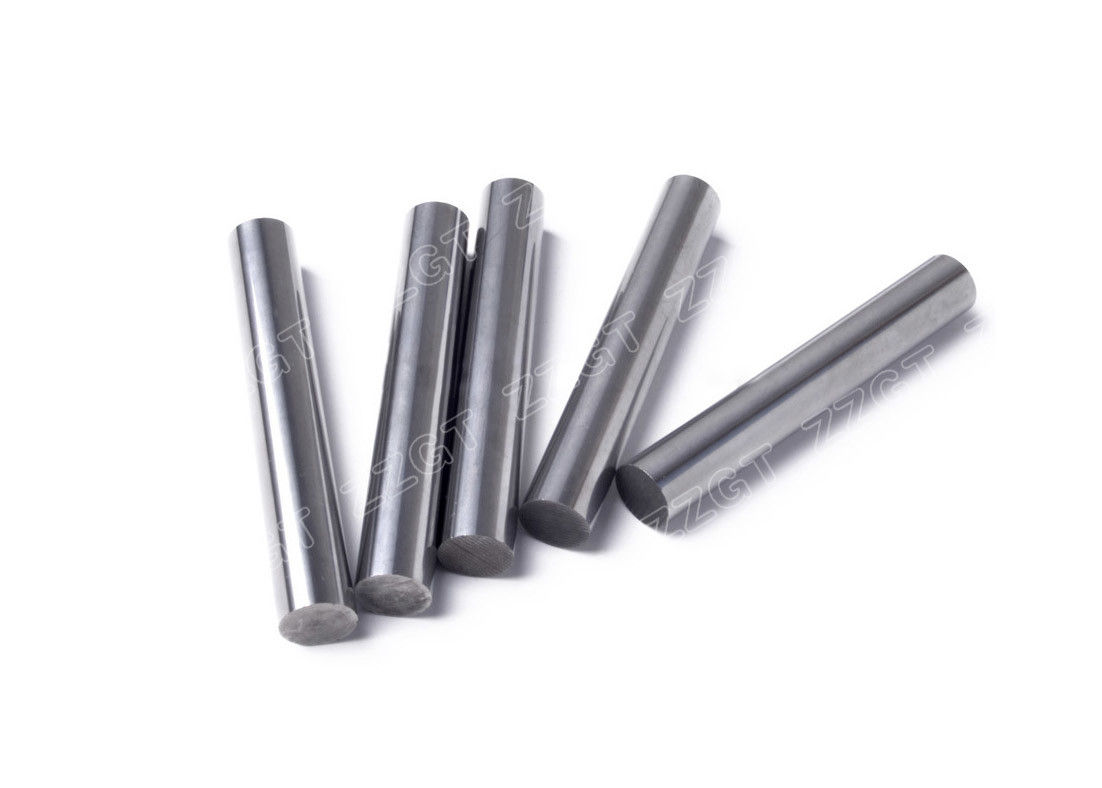

Product Display :

3.175*38.25 Tungsten Carbide Composite Rods High Hardness For PCB Tools 0

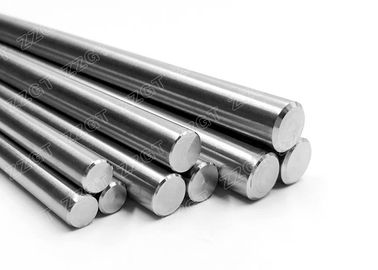

Tungsten Carbide Rods GF8 φ10*100 HRA90 for Milling Tools



Packing Process:

Tungsten Carbide Rods GF8 φ10*100 HRA90 for Milling Tools





FAQ



Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
