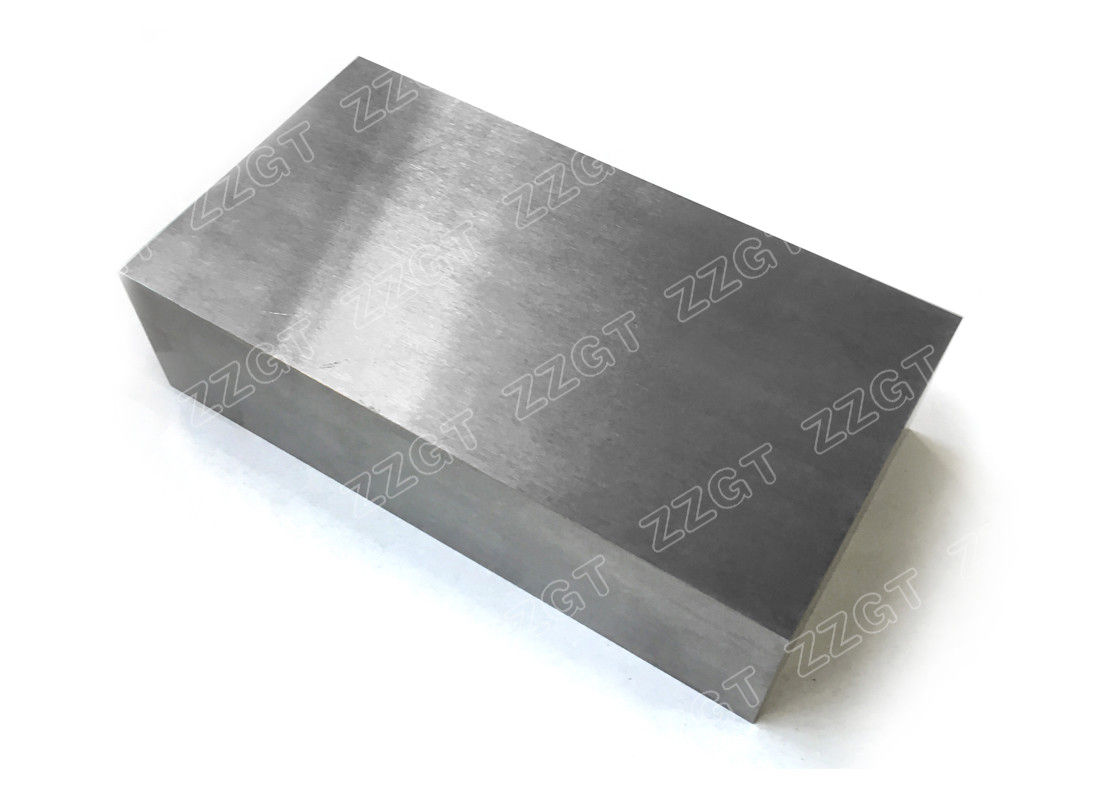

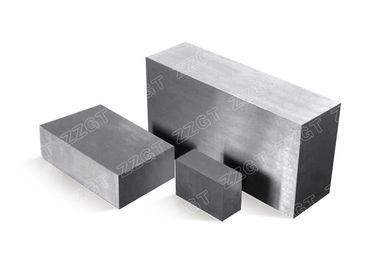

K30 Grade Virgin Tungsten Carbide Block HIP Sintered Type ISO Certificated
Product Details:
| Place of Origin: | ZhuZhu , Hunan , China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | 50*200*40 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10KGs |
|---|---|
| Price: | negotiable |
| Packaging Details: | First paper packing each piece then pack into paper boxes or plastic box,next use exported cartons or wooden cases,or packed as customers'requirement. |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Material: | Contains Virgin Tungsten And Cobalt | Quality: | Excellent Wear Resistance And Strong Ridiging |
|---|---|---|---|
| Technology: | Imported Equipment HIP Sinter | Shipments: | Some Products Are In Stock For Fast Delivery |
| Size: | Various Grade And Size For Choise | Service: | 24-hour Online After-sale Service |
| Highlight: | tungsten carbide sheet,tungsten carbide wear plates |
||
Product Description
Virgin Tungsten cobalt board K30, 50*200*40 or other HIP sinter ISO certificate factory wholesale
Carbide board Descriptions :
Tungsten carbide boards are factory cheap price , shock-resistance , material is 100% virgin tungsten carbide, imported equipment HIP sinter , and can provide various size and the technical support which can select right grade of carbide to match client's using purpose.Goods packed in standard of export package.Suitable for the maching of cast iron , non-ferrous metals as well as wood ,bamboo.
Feastures:
- Good finishing and long tool life
- High hardness and wearability
- Customized sliver gray cemented carbide board
- Stable performance ,no broken
| Product Name | Tunsten Carbide board |
| Material | cemented carbide |
| Size | 50*200*40 or others available |
| Size Tolerance | ±0.1 or as customer's request |
| Color | As picture |
| Recommend Grade | YG8 YG15 YS2T etc |
| Grain Size | Medium and fine Grain |
| Application | for stamping mold |
| Processing Treatment | Six Face fine ground or as customer request. |
| Product Features | Long life,good wear resistance and high hardness. |
| Certification | ISO9001 |
Grade Performances:
| Grade | Hardness |
Density
|
T.R.S | Application Recommended |
| HRA | g/cm3 | MPα | ||
| YG6A | 91.5 | 14.9 | ≥3500 | Has wear resistance higher than YG6,used for processing hard wood, original wood,aluminum section bar,brass rod and cast iron. |
| YG8 | 89.5 | 14.7 | ≥3200 | Wear and percussion resistance,used for processing hard wood,soft wood, ferrous and non~ferrous. |
| YG15 | 87 | 14 | ≥3800 | for making stamping die, wear resistance parts. |
| YG20 | 84.5 | 13.7 | ≥4200 | with high strength,suitable for making progressive die stamping die etc. |
| YS2T | 92 | 14.5 | ≥3850 | Fine carbide, High wear resistance,high bending strength, high resistance to bonding, high thermal strength. Machining of refractory alloys, stainless steel and high manganese steel etc. |
Size Options:
| Type | L (mm) |
W (mm) |
T (mm) |
Type | L (mm) |
W (mm) |
T (mm) |
| 300×250×T | 300 | 250 | 5-65 | 270×120×T | 270 | 120 | 5-65 |
| 300×200×T | 300 | 200 | 5-65 | 150×150×T | 150 | 150 | 5-65 |
| 320×215×T | 320 | 215 | 5-65 | 150×100×T | 150 | 100 | 5-65 |
| 350×250×T | 350 | 250 | 5-65 | 120.5×107×T | 120.5 | 107 | 5-65 |
| 300×160×T | 300 | 160 | 5-65 | 120.5×120.5×T | 120.5 | 120.5 | 5-65 |
| 200×200×T | 200 | 200 | 5-65 | 100×100×T | 100 | 100 | 5-65 |
| 200×100×T | 200 | 100 | 5-65 | 100×85×T | 100 | 85 | 5-65 |
| 200×60×T | 200 | 60 | 5-65 | 100×50×T | 100 | 50 | 5-65 |
| 200×150×T | 200 | 150 | 5-65 | 105×105×T | 105 | 105 | 5-65 |
| 250×250×T | 250 | 250 | 5-65 | 68×57×T | 68 | 57 | 5-20 |
| 250×200×T | 250 | 200 | 5-65 | 60×50×T | 60 | 50 | 5-20 |
| 250×150×T | 250 | 150 | 5-65 | 50×50×T | 50 | 50 | 5-20 |
| 250×130×T | 250 | 130 | 5-65 | 40×40×T | 40 | 40 | 5-20 |
| … | … | … | … | … | … | … | … |
For any other sizes we are able to custom-made according to clients’ requirements or drawings.
About us:
Gingte is a professional manufacturer of cemented carbide with rich experience in this industry.
The company is committed to research and development, production and sales of new material and new products of cemented carbide.
So far, we have several series of major products includes cemented carbide block, rods, plates , disc cutter, oil and mining tools and so on. Our products are popular in the market due to the good quality and reasonable price.
Welcome you to visit us and cooperate with us.
Packing Process:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippmemt
