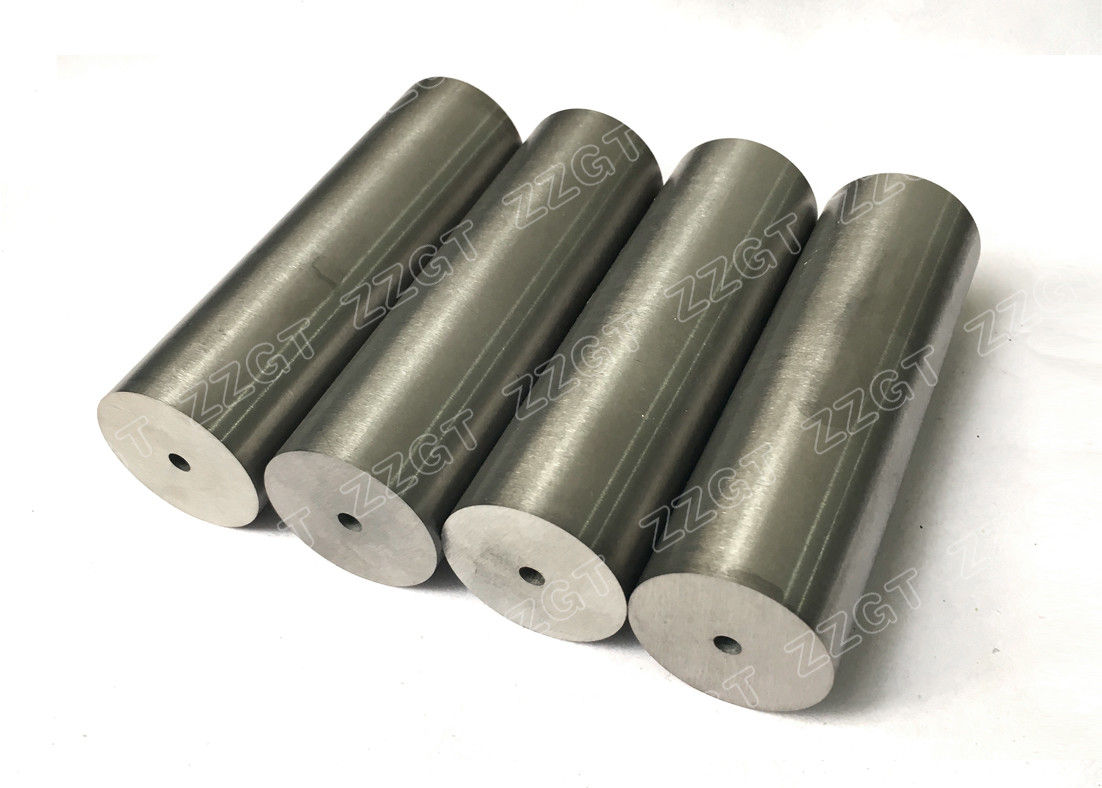

100% Virgin Material Tungsten Carbide Pellets φ45*φ19*80 For Punching Die
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | φ45*φ19*60 or others |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10KGs |
|---|---|
| Price: | negotiable |
| Packaging Details: | First paper packing each piece then pack into paper boxes,next use exported cartons or wooden cases,or packed as customers'requirement. |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Material: | Tungsten Carbide | Surface Treatment: | Clean Ground |
|---|---|---|---|
| Applications: | For Fastener Industry | Purpose: | Forging |
| Chemical Composition: | WC+Cobalt | Roughness: | 0.8 Or Others |
| Shipping Terms: | FOB,CIF,C&F Etc By Sea Or By Air | Trade Term: | FOB CIF C&F |
| High Light: | dies for wire drawing,tungsten carbide drawing dies |
||
Product Description
100% Virgin Material Tungsten Carbide Pellets φ45*φ19*80 For Punching Die
100% Virgin Material GT55 Tungsten Carbide Pellets φ45*φ19*80 for Punching Die
Carbide Pellets Descriptions :
Tungsten carbide pellets are widely used for making finished die casting mould, punch dies, wire drawing die, machine mold, progressive die, extrusion die, press mold, mould parts, trimming die, cold heading die, forging mold, cold forming die etc.
|
Product Name |
Tunsten Carbide Pellets |
|
Material |
cemented carbide |
|
Size |
φ45*φ19*60 or custom-made |
|
Size Tolerance |
Free tolerance or as customer's request |
|
Color |
Gray |
|
Recommend Grade |
GT55 or others |
|
Grain Size |
Coarse Grain |
|
Application |
For Fastener Industry |
|
Processing Treatment |
Clean ground or |
|
Product Features |
Long life, good impact resistance |
|
Certification |
ISO9001 |
Grade Performance:
| Tungsten Carbide Cold Forging/heading Dies | |||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended | |
| g/cm³ | MPa | HRA | |||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
| YG15C | 14 | ≥4000 | 86.5 |
For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. |
|
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. | |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. | |
| GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. | |
Size Options:
|
Type |
OD |
ID |
H |
Tolerance |
||
|
OD |
Id |
H |
||||
|
φD10~14×φd |
10~14 |
1.0～5.0 |
15～40 |
D×+3% |
d×-3% |
H×+3% |
|
φD15~24×φd |
15~24 |
1.5～8.0 |
20～60 |
|||
|
φD25~40×φd |
25~40 |
1.5～25 |
30～60 |
|||
|
φD42~95×φd |
42~95 |
2.0～50 |
20～95 |
|||
For any other sizes we are able to custom-made according to clients’ requirements or drawings.
Applications:
Packing Process:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
