3 Flute Tungsten Carbide Products Square End Mill With Coating For 55° Aluminum Processing
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | standard end mill |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard package |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 400T/ year |
|
Detail Information |
|||
| Material: | 10% Cobalt | Suface Treatment: | Precision Grinding |
|---|---|---|---|
| Workpiece Material: | Aluminum Alloys | Angle: | 55° |
| Coating: | Yes | ||
| High Light: | cemented tungsten carbide products,tungsten carbide material products |
||
Product Description
3 Flute Tungsten Carbide Products Square End Mill With Coating For 55° Aluminum Processing
3 Flute Tungsten Carbide Square End Mill With Coating For 55° Aluminum Processing
Product Information:
Our square end mills with Sharp, high precision, good surface effects and high cutting efficiency,versatile desigh with excellent chip evacuation,suitable for slotting and edge-milling operations for aluminum alloys,with special customized coating,special edge,high rate of metal removal,effectively slove stick chips of edge.

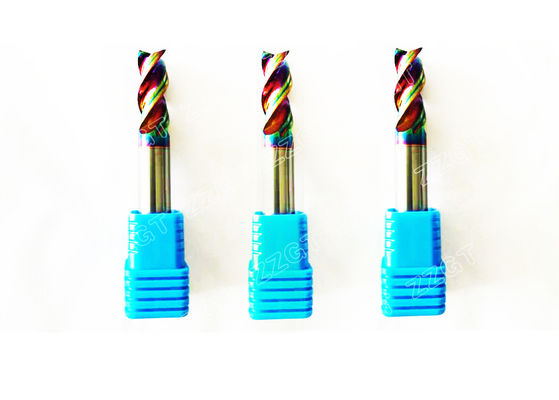

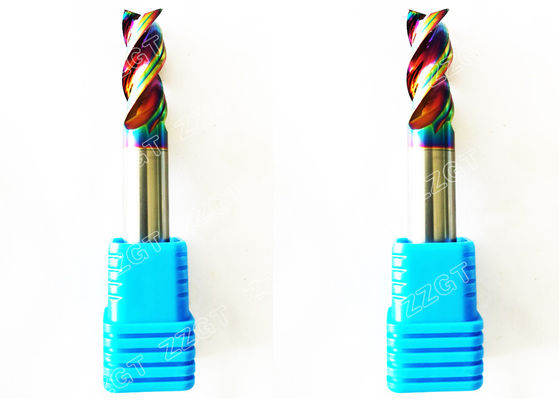

Product Display:
Recommend Grade Performance:
| Grades | Density | T.R.S | Hardness | Sutiable Material | |
| g/cm³ | MPa | HRA | |||
| JU20 | 14.4 | ≥4000 | 91.7 | aluminum ,steel ,cast iron ,ductile cast iron ,stainless,wood,PVC,acrylic etc. | |
Size Chart:
| Sr.No. | D | Lc | d | L | Flute |
| 1 | 1 | 3 | 4 | 50 | 3 |
| 2 | 1.5 | 4.5 | 4 | 50 | 3 |
| 3 | 1.8 | 5 | 4 | 50 | 3 |
| 4 | 2 | 6 | 4 | 50 | 3 |
| 5 | 3 | 9 | 4 | 50 | 3 |
| 6 | 4 | 12 | 4 | 50 | 3 |
| 7 | 5 | 13 | 6 | 50 | 3 |
| 8 | 6 | 15 | 6 | 50 | 3 |
| 9 | 8 | 20 | 8 | 60 | 3 |
| 10 | 10 | 25 | 10 | 75 | 3 |
| 11 | 12 | 30 | 12 | 75 | 3 |
| 12 | 16 | 40 | 16 | 100 | 3 |
| 13 | 20 | 50 | 20 | 100 | 3 |
| 14 | 25 | 50 | 25 | 100 | 3 |
Advanced Equipments:
*Advanced automatic CNC grinding machine and testing equipment
* Spray Drying system
* HIP sintering furnace
* 500T Hydrolic pressing machine
* 200T TPA pressing machine
* Cold Isostatic Press
* Wire cutting machine
* Universal grinding machine
* Electric Spark machine,etc
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How can i place an order ?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
Q: What is your terms of delivery ?
A: We accept EXW, FOB, C&F, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
