Wearable High Hardness K10 YG15 Tungsten Carbide Plate For Agricultural Tillage

Wearable High Hardness K10 YG15 Tungsten Carbide Plate For Agricultural Tillage

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: Gingte Li
Certification: ISO9001:2015
Model Number: K30,K40

Payment & Shipping Terms:

Minimum Order Quantity: samples are accepted
Price: Negotiable
Packaging Details: paper box, wooden carton or according to customers demands
Delivery Time: 7-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 400T/ year
Get Best Price Contact Now

Detail Information

Material: WCCO Alloy Surface Treatment: Blank
Grade: YG6 Trade Terms: FOB,CIF And So On
High Light:

tungsten carbide alloy products

,

tungsten carbide material products

Product Description

Wearable High Hardness K10 YG15 Tungsten Carbide Plate For Agricultural Tillage

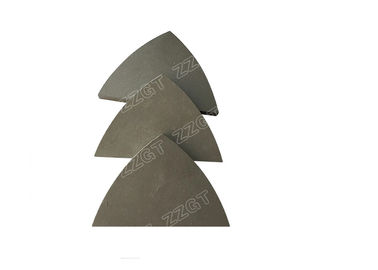

Wearable K10 YG15 tungsten carbide plate for agricultural tillage



Description:

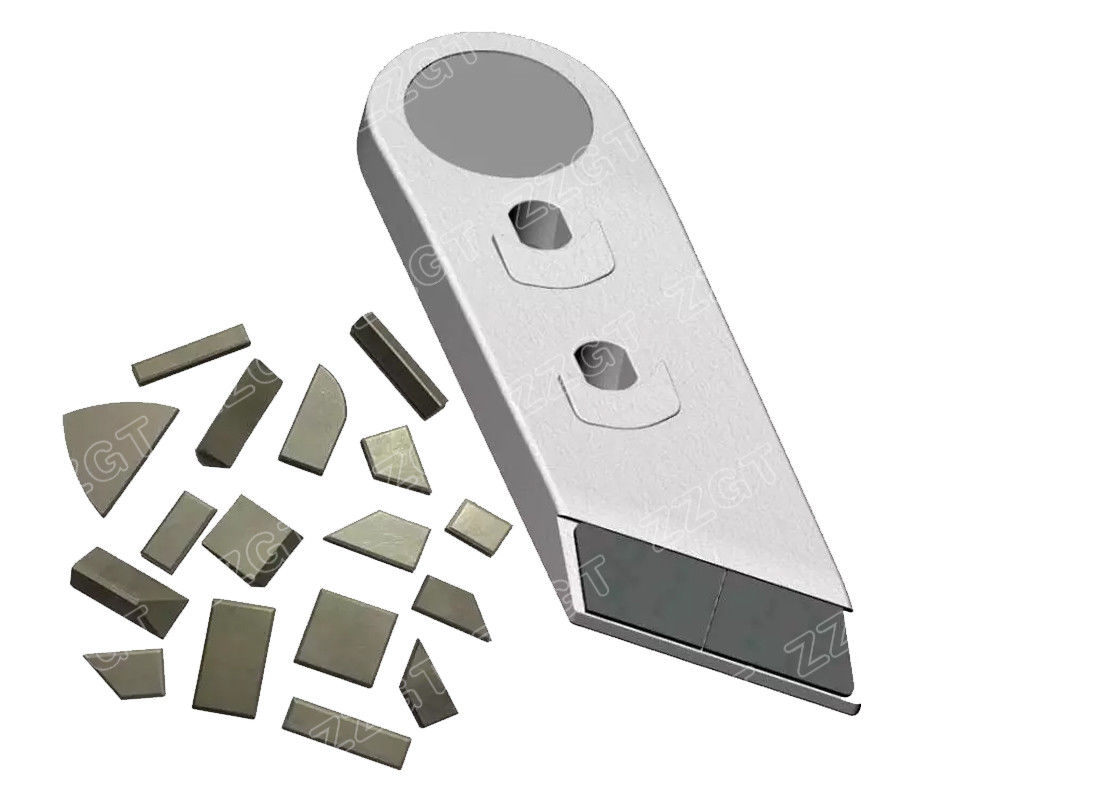

Tungsten carbide weld on tip
Carbide weld on tips for the tillage , cultivator , ploughs the best grade NO is YG11,YG8C, YG15, As some agricultural wear parts have to work in severe environment, so just the castig with high strength is not enough, to protect the castings from quick worn , these grade will greatly increase the service life.





Key characteristics:


• high reliability
• Easy to be welded
• Good impact and wear resistance
• Stable performance
• High cost-effective
• Long life time



Grade Performance:



Only grades of tungsten carbide specifically suited in terms of hardness and durability are utilized for these applications. These grades have especially long service lives and are highly resistant to breakage.




Grade Density  T.R.S Hardness Performance & Application Recommended
g/cm3 MPα HRA
YG6 14.9 2100 90 or coring crowns,electric coal drill bits,coal cutting picks,oil cone bits and scraping knife bits, usd in geological prospecting, coal mining and oil well boring.
YG8 14.7 2400 89.5 For coring crowns, electric coal drill bits, coal cutting picks, cone drill bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring.
YG8C 14.7 2450 88.5   Mostly used as the buttons of small and mediumsized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations.
YG9C 14.6 2450 87.8 Suitable to strips, conical buttons for rotary percussion-resistant, geological prospecting buttons, cut soft and medium hard formations.
YG10C 14.4 2550 87 Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations.
YG11C 14.4 2600 87  Largely for the inserts and buttons of percussion bits and tricone bits to cut medium-hard, hard, and very hard formations.
YG13C 14.2 2650 86.5 Predominatly for the buttons of tricone bits and inserts of rotary percussion bits to cut hard and vey hard formations.
YG15C 14 2700 86.5 For oil cone drill bits, for medium soft and medium -hard rocks.
YG15 14 2500 87.5 Good strength and less wear resistance,for bits of rotary hammer rock drills and heavy rock drills, for hard and very hard rocks.





More Details:



Wearable High Hardness K10 YG15 Tungsten Carbide Plate For Agricultural Tillage 0







Factory Equipments:



*Spray Drying system

*HIP sintering furnace

*500T Hydrolic pressing machine

*200T TPA pressing machine

*Cold Isostatic Press

*Wire cutting machine

* Universal grinding machine

*Electric Spark machine,etc



Wearable High Hardness K10 YG15 Tungsten Carbide Plate For Agricultural Tillage 1
