• WC Tungsten Carbide Products , Cemented Carbide Sleeves With Straight Bore
  • WC Tungsten Carbide Products , Cemented Carbide Sleeves With Straight Bore
WC Tungsten Carbide Products , Cemented Carbide Sleeves With Straight Bore

WC Tungsten Carbide Products , Cemented Carbide Sleeves With Straight Bore

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: Gingte Li
Certification: ISO9001:2015
Model Number: φ35*φ10*80 or others

Payment & Shipping Terms:

Minimum Order Quantity: 10KGs
Price: negotiable
Packaging Details: First paper packing each piece then pack into paper boxes,next use exported cartons or wooden cases,or packed as customers'requirement.
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 400 tons/year
Get Best Price Contact Now

Detail Information

Material: Tungsten Carbide Surface Treatment: Mirror Polish
Applications: Water Pump, Oil Pump Etc Purpose: Punching
Chemical Composition: WC+Cobalt Roughness: 0.2 Or Others
Shipping Terms: FOB,CIF,C&F Etc By Sea Or By Air
High Light:

cemented tungsten carbide products

,

tungsten carbide material products

Product Description

Tungsten Carbide Bush & Cemented Carbide Sleeves with Straight Bore



Product Features :

Tungsten Carbide Sleeves and Bush is the basic material among the frictional materials.They are widely use as the basic components for sealing. And the bushings are widely adopted in petrochemical industry. Tungsten carbide bush can withstand high pressure and are resistant to corrosion so are used in water pumps, oil pumps and various other pumps. Today, tungsten carbide bush has been playing an important role in the field of long working parts material.



The features possessed by the cemented carbide sleeve include high strength, robust construction, easy availability, durability, excellent performance and many others. We have established our strong footholds in the international market by satisfying the customers with a premium range of cemented carbide bush/sleeve.



Tungsten carbide Sleeve (OD/10~300, ID/3~260, H/8~150)

1. used for water pump, oil pump and other pumps, especially used for high pressure or corrosion resistance poumps.

2. has a good wear resistance

3. keeping operation precision, prolong the lifetime of rolling axletree.

4. good materials, perfect performance, high machining accuracy,has high reputation all over the world.

5. various types and grades, supplied as required







Product Specifications:

Product Name

tungsten carbide bush/sleeve

Material

cemented carbide

Size

φ35*φ10*80 or custom-made

Size Tolerance

finished or as customer's request

Color

as picture

Recommend Grade

YG8 etc

Grain Size

Medium Grain

Application

water pump, oil pump etc

Processing Treatment

OD ,ID and two face all mirror polished

Product Features

Long life, good wear resistance

Certification

ISO9001







Recommend Grades:

Grade

Binder(Wt%)

Density(g/cm3)

Hardness(HRA)

YG6

6

14.8

90.0

YG6A

6

14.9

92.0

YG8

8

14.7

89.5

YG12

12

14.2

88.0

YG15

15

14.0

87.0

YG20

20

13.5

85.5



Nickle Binder grades: YN6 YN8 etc.

Cobalt Binder grades: YG6 YG8 YG6A YG12 YG15 YG20 etc.






Various Sizes for Options:



Type

OD

ID

H

φD25~30×φd

25~40

5~25

50~80

φD30~95×φd

42~95

5~50

50~100

For any other sizes we are able to custom-made according to clients’ requirements or drawings.

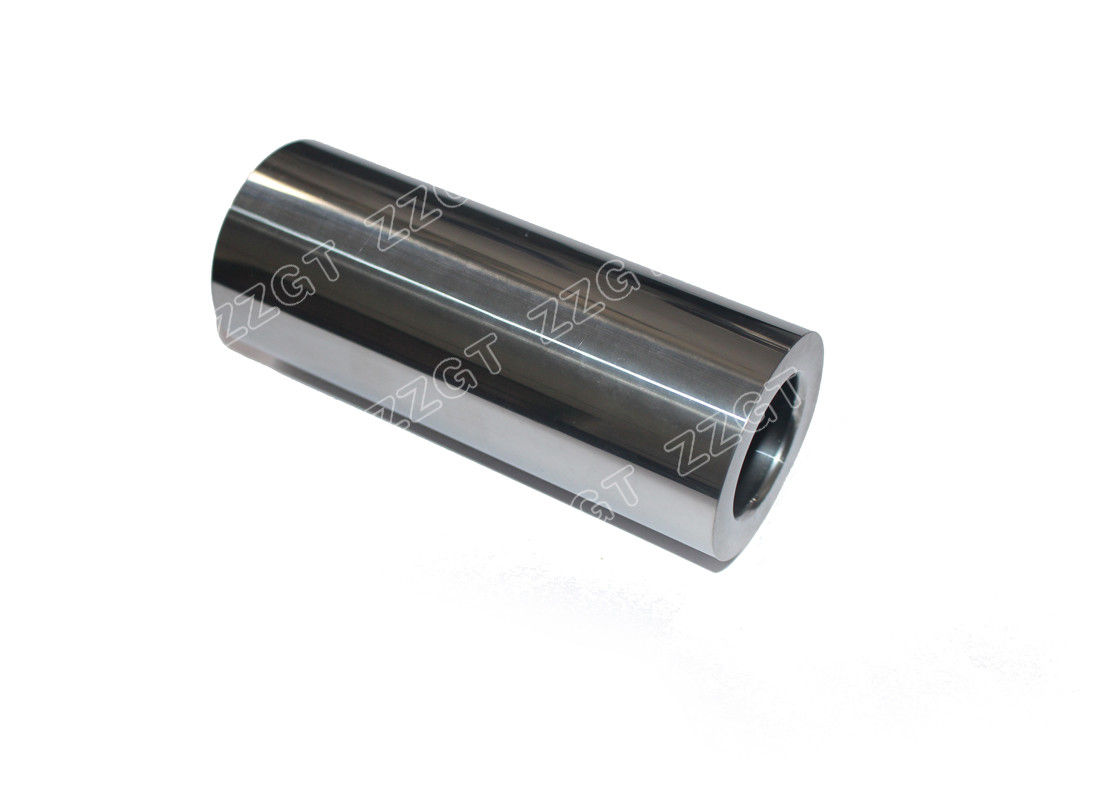

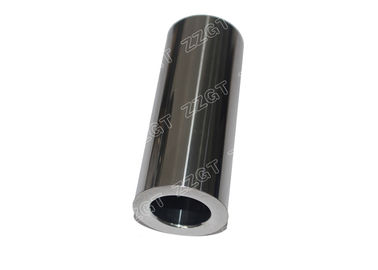

Product Display:



WC Tungsten Carbide Products , Cemented Carbide Sleeves With Straight Bore 0





Quality assurance:

  • Every production process has a special person to test to ensure quality

  • Have professional engineers to check the quality

  • All products are under strict quality system management based on ISO9001:2008



Packing Process:

WC Tungsten Carbide Products , Cemented Carbide Sleeves With Straight Bore 1





FAQ



Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How can i place an order ?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.



Q: What is your terms of delivery ?
A: We accept EXW, FOB, C&F, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.



Q: How long is your delivery time ?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.





Contact us at your free time when you are interested in our products : )
