Nuts & Bolts Use Tungsten Carbide Cold Heading Dies , G50 Tungsten Steel Punching Dies
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | 30*3*25 or others |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10KGs |
|---|---|
| Price: | negotiable |
| Packaging Details: | First paper packing each piece then pack into paper boxes,next use exported cartons or wooden cases,or packed as customers'requirement. |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Material: | Tungsten Steel | Surface Treatment: | Sandblasting |
|---|---|---|---|
| Usages: | For Nuts And Bolts | Purpose: | Forging |
| Chemical Composition: | WC+Cobalt | Roughness: | 3.2 Or Others |
| Shipping Terms: | FOB,CIF,C&F Etc By Sea Or By Air | Grain Size: | 2.4 |
| Highlight: | cold forging die,tungsten carbide die |
||
Product Description

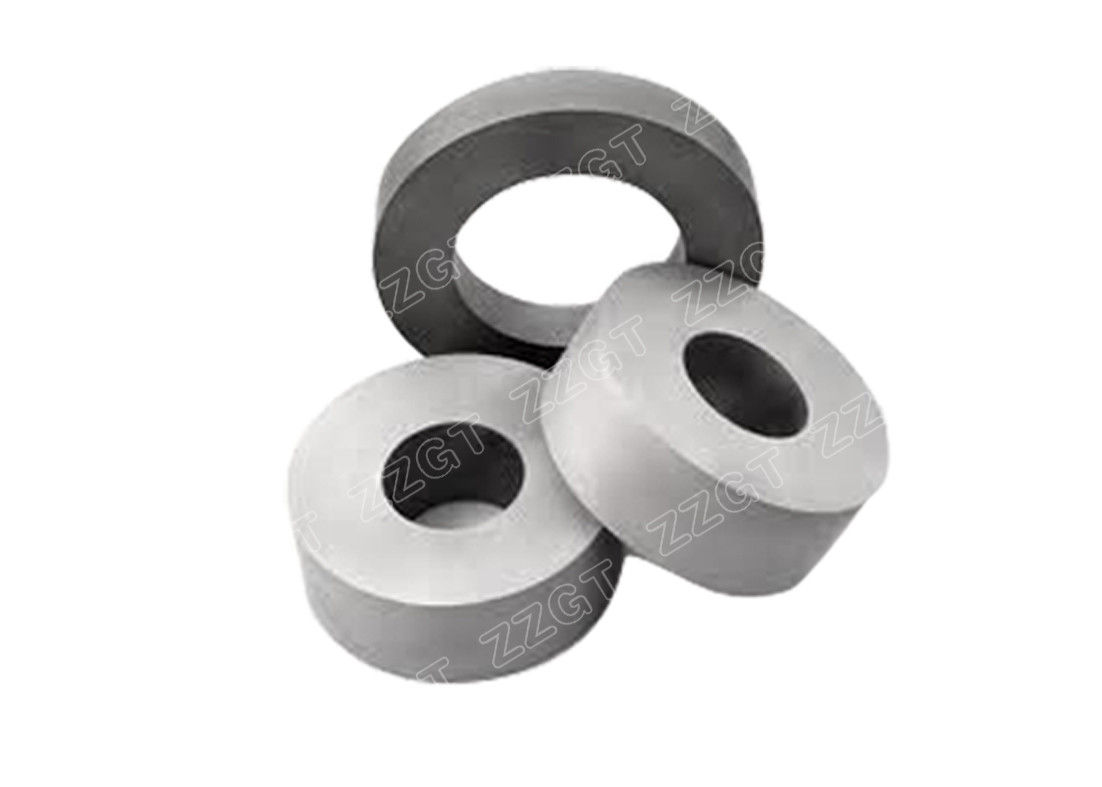

Tungten Steel Punching Dies G50 Grade for Nuts and Bolts with Different Sizes
Product Quick Detail :
Cemented carbide punching dies are widely used for the hot-press forging and cold-press forging of various metal or non-metal material.Carbide are better than any other kind of die steel in hardness and wear resistance. YG grade cemented carbide are used as the material of cemented carbide punching dies.
Product Specifications:
1. Product Name: Tungsten Steel Punching Dies
2. Material: Tungsten Steel
3. Size: 30*3*25 or as customer's request
4. Size Tolerance: free tolerance or as customer's request
5. Shape: Round Shape with hole
6. Recommend Grade: G50 etc
7. Grain Size: Coarse Grain
8. Applications: For Nuts and bolts
9. Processing Treatment: Unground
10. Product Features: Long life, high strength
11. Certification: ISO9001
Our Services:
We could produce cemented carbide dies in both the standard configurations (round, square, and rectangle) and in custom shapes as specified by our customers CAD drawings.
Various Grades for Options:
| Tungsten Carbide Cold Forging/heading Dies | |||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended | |
| g/cm³ | MPa | HRA | |||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
| YG15C | 14 | ≥4000 | 86.5 |
For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. |
|
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. | |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. | |
| YG25C | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. | |
Various Sizes for Options:
|
Type |
OD |
ID |
H |
Tolerance |
||
|
OD |
Id |
H |
||||
|
φD10~14×φd |
10~14 |
1.0～5.0 |
15～40 |
D×+3% |
d×-3% |
H×+3% |
|
φD15~24×φd |
15~24 |
1.5～8.0 |
20～60 |
|||
|
φD25~40×φd |
25~40 |
1.5～25 |
30～60 |
|||
|
φD42~95×φd |
42~95 |
2.0～50 |
20～95 |
|||
For any other sizes we are able to custom-made according to clients’ requirements or drawings.
Applications:
Quality assurance:
-
Every production process has a special person to test to ensure quality
-
Have professional engineers to check the quality
-
All products are under strict quality system management based on ISO9001:2008
