Steel Wire Use Tungsten Carbide Pellets With High Thermal Conductivity

Steel Wire Use Tungsten Carbide Pellets With High Thermal Conductivity

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: Gingte Li
Certification: ISO9001:2015
Model Number: various carbide die sizes

Payment & Shipping Terms:

Minimum Order Quantity: 20KGs
Price: negotiable
Packaging Details: First paper packing each piece then pack into paper boxes,next use exported cartons or wooden cases,or packed as customers'requirement
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 400 tons/year
Get Best Price Contact Now

Detail Information

Material: Tungsten Carbide Applicatios: For Fasteners Industry
Purpose: Drawing Quality: High Hardness Good Wear Resistance
Roughness: 0.8 Or Others Shipping Term: FOB,CIF,C&F Etc By Sea Or By Air
Grain Size: 1.5---2.4 TRS: >3200
Feedback: Within 24 Hours
High Light:

tungsten carbide drawing dies

,

carbide wire drawing dies

Product Description

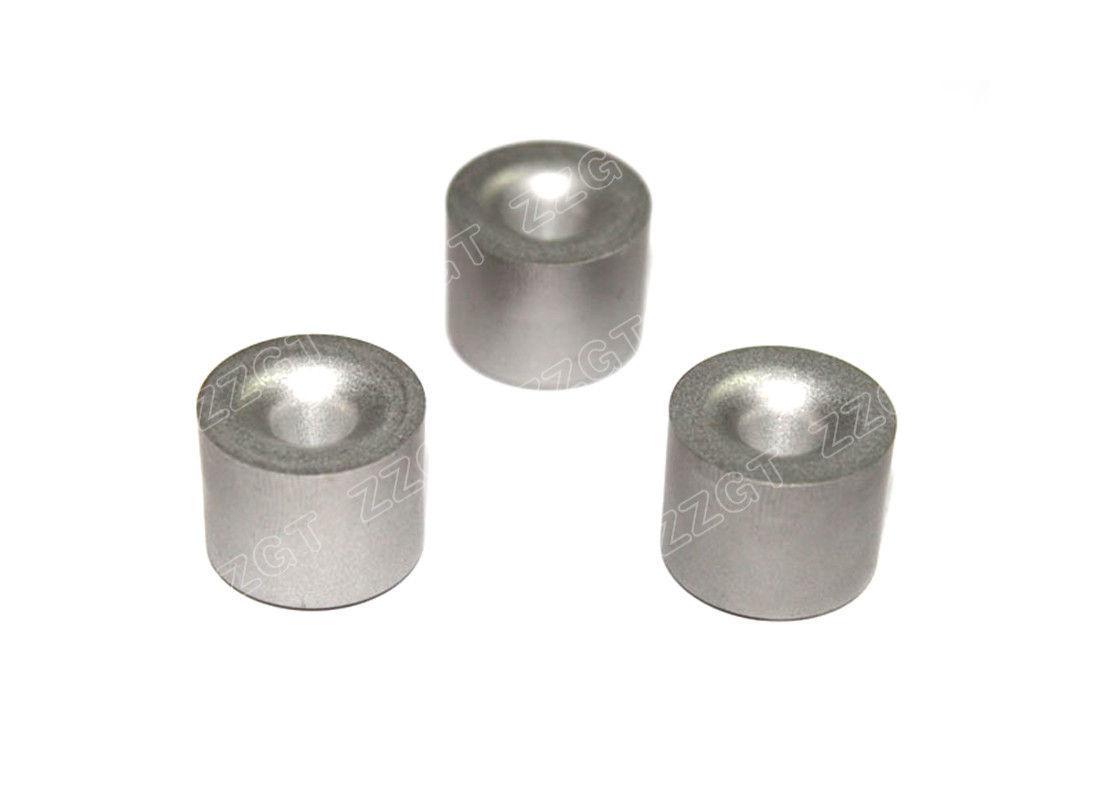

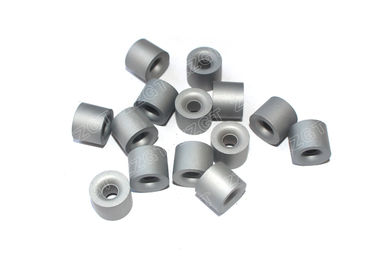

Steel Wire Use Tungsten Carbide Pellets With High Thermal Conductivity

Steel wire using Cemented Carbide Drawing Dies with high thermal conductivity





Product Advantages:



1. Export more than 10 years to German, Russia, India, etc.

2. Almost 500 ready molds, we can supply you all the sizes without mold free;

3. Bore size from 0.4mm to 68mm, Diameter from 10mm to 120mm;

4. Long production experience, we can give you solutions or suggestions with your specific requirements;

5. High performance, long working lifetime, stable and durability quality

6. OEM production as per your drawing and requirements;





Product Descriptions:



Carbide drawing dies whose application scope is very extensive, mainly used for drawing rods,wire,silk, pipe material and so on. It is suitable for drawing process steel,copper,tungsten ,molybdenum and alloy material.





Our Service:



High effect is the lifeline of fastener factory . And the service life of tool play impotant role in the field of drawing dies products.The reasonable tools design is the base of manner , Gingte pursue the stable quality, make the design better and will to cooperate with you and provide the responsibility as a tools maker , for any other size or special requirements that we are able to custom made according to client's requirements or drawings.



Various Grades for Options:



Grade Physical and mechanical properties Applications recommended
Density g/cm3 Hardness No Less Than HRA(HV) TRS No Less Than (Mpa)
YG6X (K10) 14.8-15.1 91 1490 For drawing steel and nonferrous wires or bars of less than Dia.6.00mm under not so much stress.
YG6 (K20) 14.7-15.1 89.5 1650 For drawing steel , nonferrous alloy bars of less than Dia.20.00mm under more stuess and also for drawing tubes of less than Dia.10.00mm.
YG8 (K30) 14.6-14.9 89 1800 For drawing steel and nonferrous bars and tubes, Also for manufacturing mechanical parts, tools and wear parts.




Various Sizes for Options:

Type OD ID H Tolerance
OD Id H
φD10~14×φd 10~14 1.0~5.0 15~40 D×+3% d×-3% H×+3%
φD15~24×φd 15~24 1.5~8.0 20~60
φD25~40×φd 25~40 1.5~25 30~60
φD42~95×φd 42~95 2.0~50 20~95

For any other sizes we are able to custom-made according to clients’ requirements or drawings.





Product Performance:

1. High Hardness: 6%-10% Co grade, fine to medium grain size

2. High Strength: 15%-25% Co grade, medium to coarse grain size

3. Good Wear Resistance: Fine to Ultrafine grain size, hardness can reach 92-93HRA





Applications:

Full Size Fast Delivery Cemented Carbide Pellets for Extrusion Dies



Quality assurance:

  • Every production process has a special person to test to ensure quality

  • Have professional engineers to check the quality

  • All products are under strict quality system management based on ISO9001:2008





Why Choose Us ?

1. Proffessional cemented carbide manufacturer over 10 years.

2. Located in zhuzhou, A well-known hub for the production of cemented carbide,We have easy access to a wealth of raw materials.

3. Annual production capacity over 400tons.

4. More than 10000 sets of exisiting non-standard molds,fast delivery!

5. Top R&D team and 12-member QC team that follows a five-point inspection routine,covering raw material,production processes, semi-finished products, finished products and packaged goods.

6. ISO9001:2008 Quality Management System.







Packing Process:

Full Size Fast Delivery Cemented Carbide Pellets for Extrusion Dies





FAQ:



Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How can i place an order ?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.



Q: What is your terms of delivery ?
A: We accept EXW, FOB, C&F, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.



Q: How long is your delivery time ?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
