Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: ZZGT Li
Certification: ISO9001:2015
Model Number: Customized

Payment & Shipping Terms:

Minimum Order Quantity: Samples are accepted
Price: Negotiable
Packaging Details: Paper box , Wooden Carton or Customized accepted
Delivery Time: 7-15days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 400T/year
Get Best Price Contact Now

Detail Information

Grade: YG8C/YG11C/YG13C Material: Tungsten Steel
ISO: K30 Surface Finish: Passvitation
Size: K040 Application: Rock Chisel Drill
High Light:

YG13C Tungsten Carbide Tips

,

YG11C Tungsten Carbide Tips

,

Tungsten Drill Bit K040

Product Description

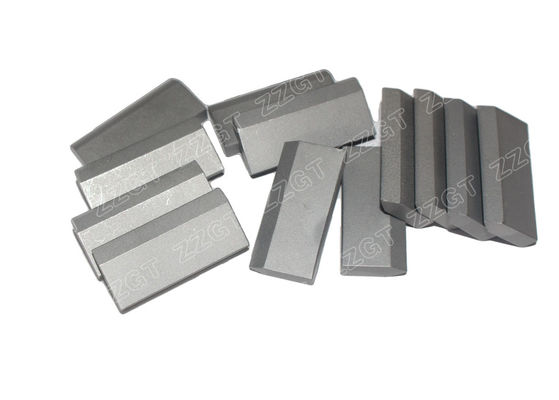

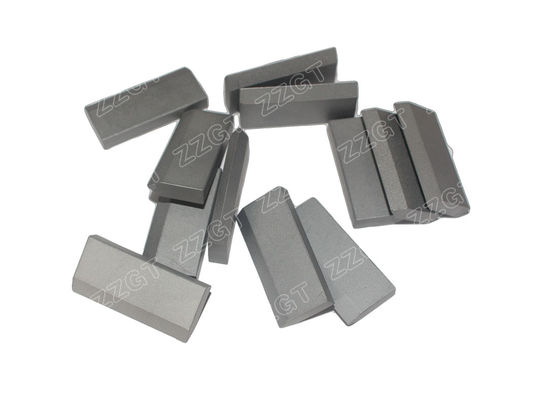

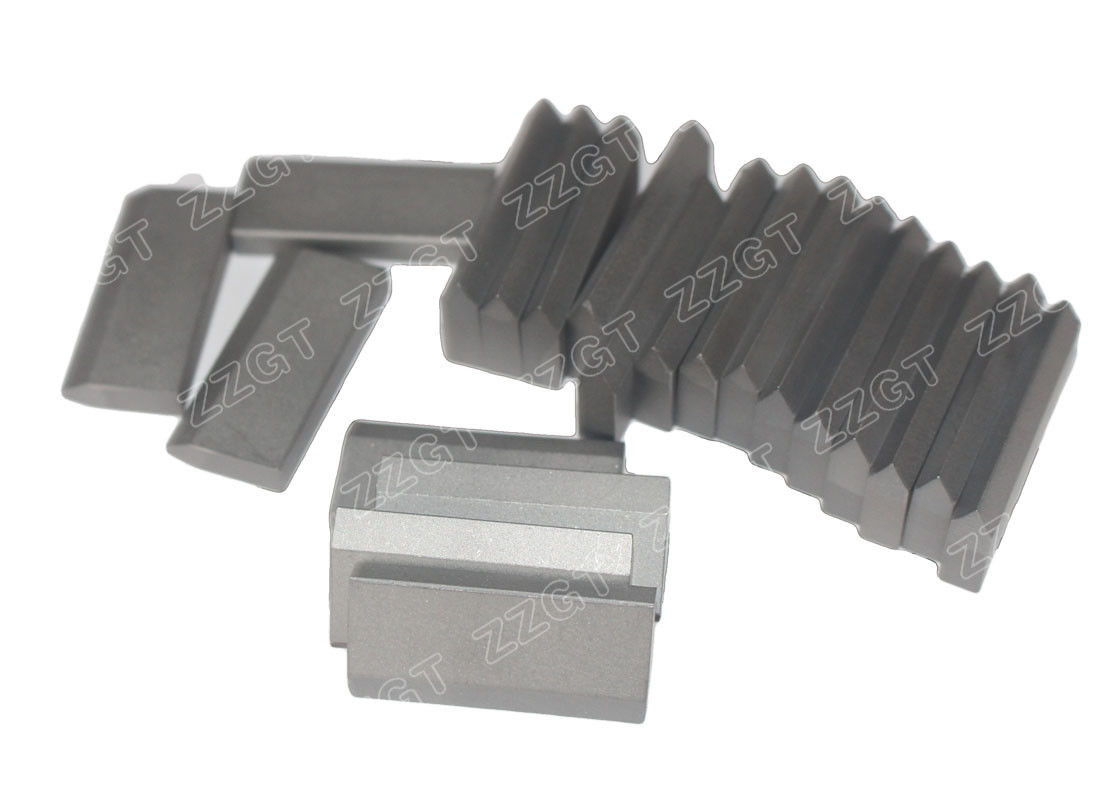

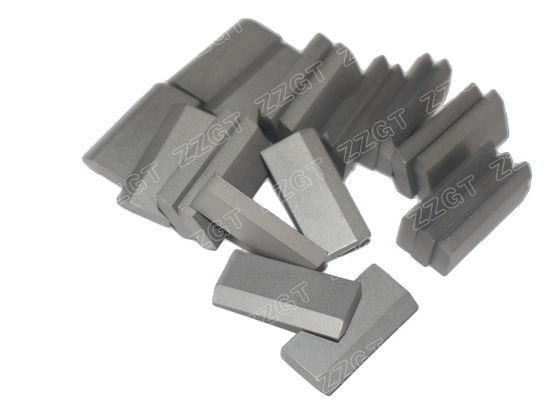

Rock Chisel Drill YG8C YG9C YG11C YG13C Tungsten Carbide Tips K040

High Performance YG8C YG9C YG11C YG13C Rock Chisel Drill Tungsten Carbide Tips K040



About Products:



Tungsten carbide tips are widely used for better wear application like chisel, cross, drill bits, making auger tips in excavators.
carbide chisel tips are also for mining tools, rock tools, quarrying, mining, tunnelling, construction and so on.



Our carbide button have long service life, which is grounded and grinded by equipment. We provide strong technology support and
our dedicated staffs guaranteed the quality.



Product Description:



Product Name Cemented Carbide tips
Material hard metal
Size K040
Size Tolerance Blank
Color Sliver grey
Recommend Grade K30
Grain Size Coarse Grain
Application excavator drilling
Processing Treatment HIP sintering
Product Features Long life, wear resistance
Certification ISO9001-2015



Rock Chisel Drill YG8C YG9C YG11C YG13C Tungsten Carbide Tips K040 0



Grade Performance



Tungsten Carbide Cold Forging/heading Dies
Grades Density T.R.S Hardness Performance & application recommended
g/cm³ MPa HRA
YG11 14.4 ≥3000 88.5 Forming or stamping dies for metal powders and nonmetal powders.
YG15 14 ≥3400 87.5 For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress.
YG20 13.5 ≥3800 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG15C 14 ≥4000 86.5 For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood.
YG16C 13.9 ≥3500 85.5 Impact resistance forging dies.
YG18C 13.7 ≥3600 84.5 Impact resistance forging dies, hot-press forging dies and rollers.
YG20C 13.5 ≥3800 83.5 Dies for wear resistant or impact resistant application.
YG22C 13.3 ≥4000 83 Nut forming dies and high impact resistance forging dies.
GT55 13.1 ≥4250 82.5 Stainless bolt header dies and rollers.





Factory Equipments:



There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd

* HIP sintering furnace

* Spraying Draying system

* 200T TPA acutomatic press machine

* CNC Grinder

* Spark Erosion machine

* Wire cutting machine,etc



Rock Chisel Drill YG8C YG9C YG11C YG13C Tungsten Carbide Tips K040 1
