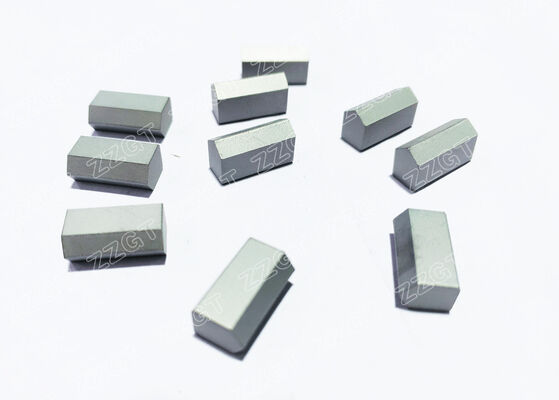

K1 Type K115 Code Tungsten Carbide Mining Bits For Embedding Cross
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | K115 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable |
| Packaging Details: | First paper packing each piece then pack into paper boxes or plastic box,next use exported cartons or wooden cases,or packed as customers'requirement. |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Material: | 100% Raw Material Tungsten Carbide | Size: | 15*12*8 |
|---|---|---|---|
| Treatment: | HIP Sintering | Grade: | YG11C |
| Hardness: | 87 HRA | Purpose: | For Hard Rock Formations |
| High Light: | tungsten carbide parts,carbide button bits |
||
Product Description
K1 Type K115 Code Tungsten Carbide Mining Bits For Embedding Cross
K1 Type K115 Code Tungsten Carbide Mining Drill Bits For Embedding Cross
Application of K115 Type Tungsten Carbide Mining Insert:
This K1 Type mining insert suitable for embedding rotary percussive drill bits of heavy rock drilling machines for drilling hard rock formations of calss f=18 or above.It is for embedding chisel and cross drill bit of various diameters.The drilling efficiency of chisel drill bits is higher than that of cross drill bit,however,withstand a high load Chisel drill bits are use for drilling homogeneous rock formations of various hardness and the impact load of the drilling machines shall be less than 6 kilograms .m.It is advisable to use cross drill bits for drilling rock formations with high hardness.
Grade Performances:
| Grade | Density | T.R.S | Hardness | Performance & Application Recommended |
| g/cm3 | MPα | HRA | ||
| YG8C | 14.7 | 2450 | 88.5 | Mostly used as the buttons of small and mediumsized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations. |
| YG9C | 14.6 | 2450 | 87.8 | Suitable for super hard rock formation with excellent wear resistance. |
| YG10C | 14.4 | 2550 | 87 | Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations. |
| YG11C | 14.4 | 2600 | 87 | Suitable for soft, medium and hard rock formations, with high toughness. |
| YG13C | 14.2 | 2650 | 86.5 | Predominatly for the buttons of tricone bits and inserts of rotary percussion bits to cut hard and vey hard formations. |
| YG15C | 14 | 2700 | 86.5 | For oil cone drill bits, for medium soft and medium -hard rocks. |
Standard Size Ranges for Options:
K106,K107,K108,K109,K110,K111,K112,K113,K114,K115,K116,K117,K118.

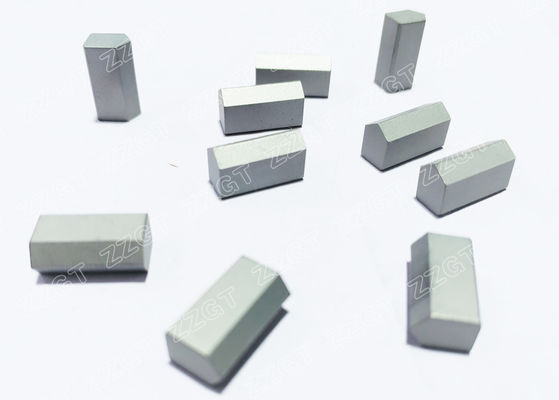

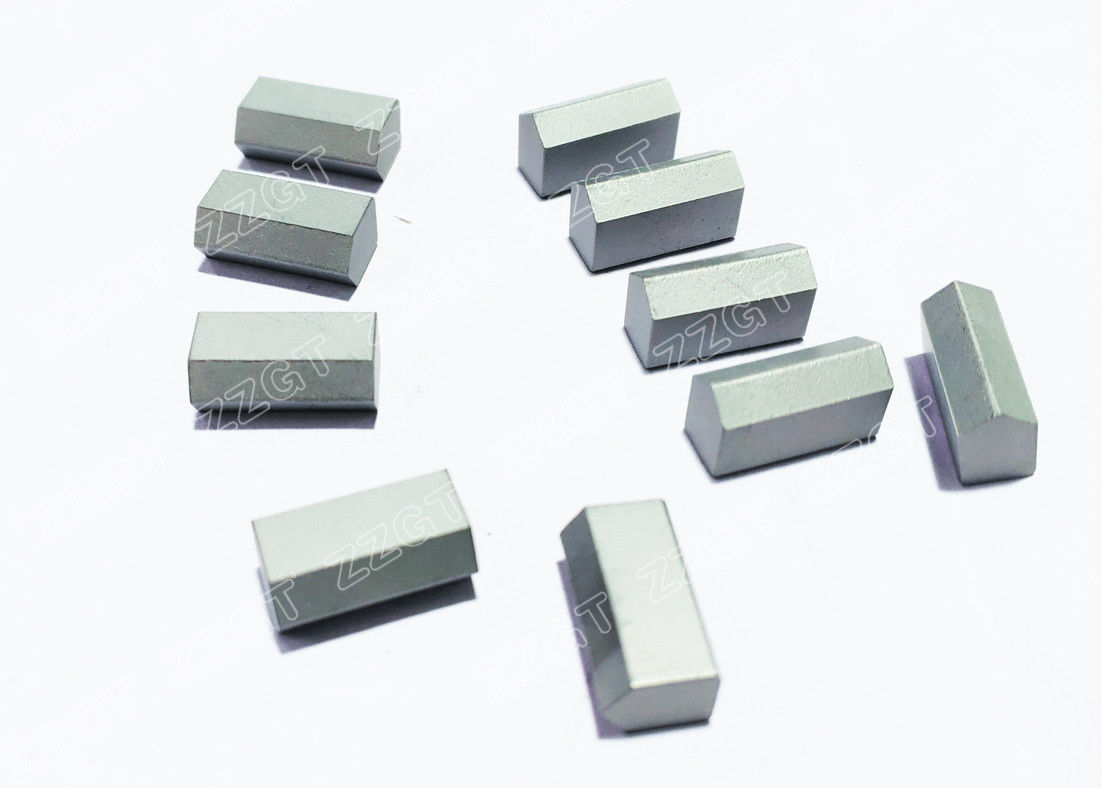

Product Display:
Packing Process:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How can i place an order ?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
Q: What is your terms of delivery ?
A: We accept EXW, FOB, C&F, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Contact us at your free time when you are interested in our products : )
