K30 Tungsten Carbide Studs For Ore Mining Crusher Machine HPGR
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | ZZGT Li |
| Certification: | ISO9001-2015 |
| Model Number: | φ15x35 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Samples are accepted |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Paper box , Wooden Carton or Customized accepted |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, D/A, T/T, Western Union, |
| Supply Ability: | 400T/year |
|
Detail Information |
|||
| Services: | 24hours | Material: | 100% Virgin Tungsten Carbide Powder |
|---|---|---|---|
| Feature: | Durable And Long Life Time | Surface Finish: | Ground And Passvitation |
| Grade: | YG15/YG12 | Application: | HPGR |
| Hardness: | HRA 87.8~90.5 | Processing Type: | Mould Pressing |
| Highlight: | K30 Tungsten Carbide Studs,HPGR Tungsten Carbide Studs,K30 Tungsten Carbide Stud Pins |
||
Product Description

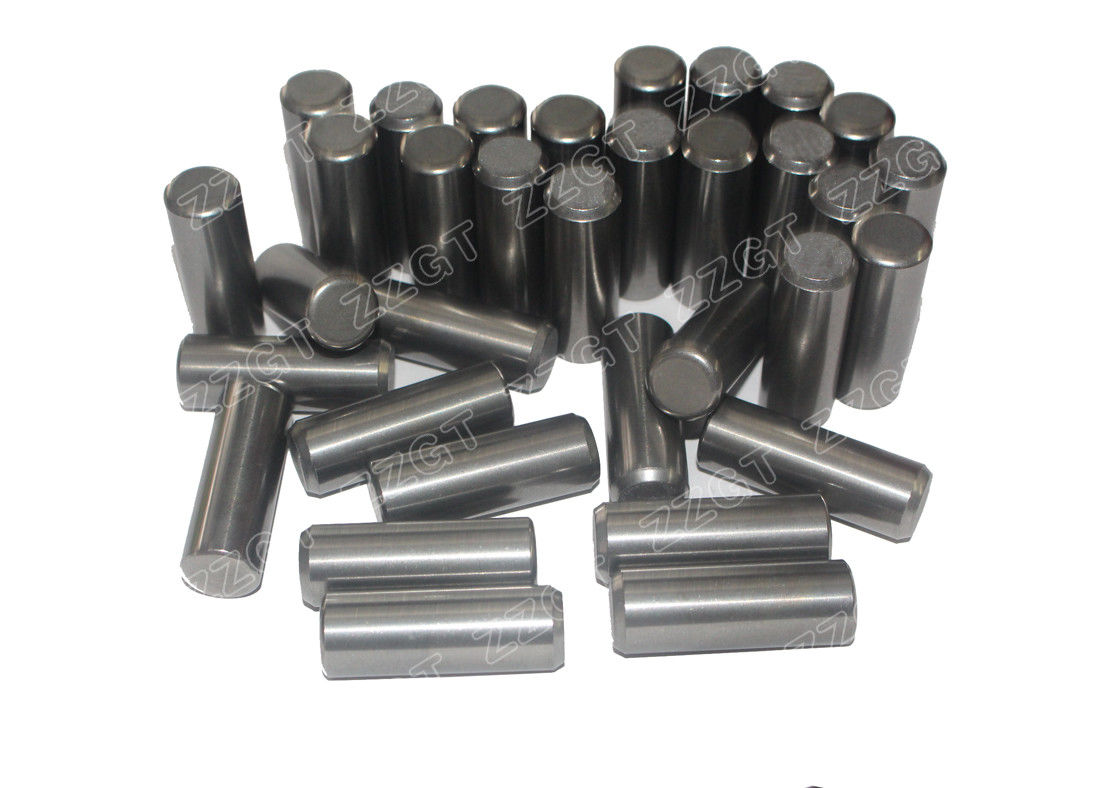

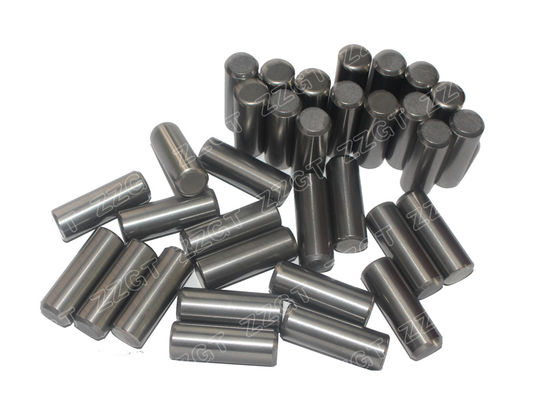

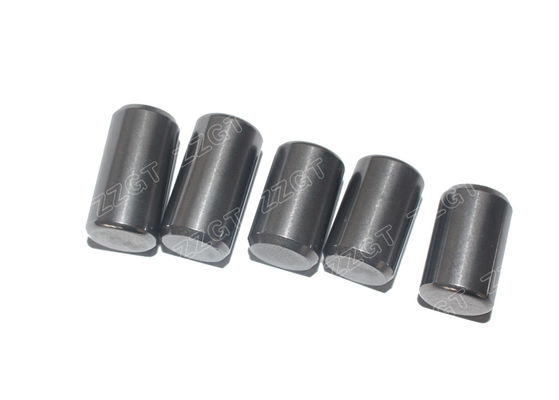

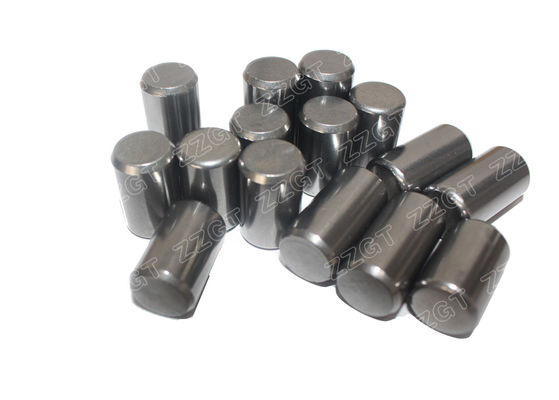

K30 tungsten carbide studs for ore mining crusher machine HPGR
HPGR tungsten carbide studs — Functions & Applications
Tungsten carbide studs are critical wear‑resistant pin inserts embedded into the roller surface of High‑Pressure Grinding Rolls (HPGR) for mineral processing, cement and aggregate industries.
- Protect the roll steel substrate: With exceptional hardness, compressive strength and impact toughness, these studs shield the underlying steel roller body from severe abrasion, high compression and rock impact during continuous crushing operations, greatly extending roll service life compared with welded overlay surfaces.
- Build self‑protecting material bed: The protruding studs trap fine ore particles between them, forming a stable autogenous wear layer (“rock‑on‑rock” grinding). This material lining further reduces direct wear on stud surfaces and improves operational stability.
- Enable inter‑particle comminution: They create a rough working surface to maintain effective high‑pressure compression on the feed bed, promoting inter‑particle crushing of hard ores instead of direct metal‑rock friction, achieving efficient fine grinding and pre‑crushing.
- Reduce downtime and operating cost: Thanks to long wear life, they cut the frequency of roller refurbishment and replacement, shorten production downtime, lower maintenance expense and stabilize plant throughput capacity.
- Process diverse abrasive feed materials: Widely applied for crushing iron ore, copper ore, bauxite, limestone, cement clinker and other hard, highly‑abrasive raw materials in mining beneficiation and cement production lines, often working as pre‑grinding components ahead of ball millsrydmet2018...
Product Description:
| Product Name | Cemented Carbide stud pins |
| Material | Hard metal |
| Size | customized |
| Size Tolerance | standard tolerance |
| Color | Sliver grey |
| Recommend Grade | Good wear resistance |
| Grain Size | Middle Grain Size |
| Application | Used for mining crusher studs |
| Processing Treatment | HIP sintering |
| Product Features | Long life, wear resistance |
| Certification | ISO9001-2015 |
Grade Performance
| Tungsten Carbide Cold Forging/heading Dies | |||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended | |
| g/cm³ | MPa | HRA | |||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
| YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. | |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. | |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. | |
| GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. | |
More Details:
Factory Equipments:
There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd
* HIP sintering furnace
* Spraying Draying system
* 200T TPA acutomatic press machine
* CNC Grinder
* Spark Erosion machine
* Wire cutting machine,etc
