Heat Resistant Rough Ground YG6X Tungsten Carbide Nozzles

Heat Resistant Rough Ground YG6X Tungsten Carbide Nozzles

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: ZZGT Li
Certification: ISO9001-2015
Model Number: φ20.3*φ8*12.6

Payment & Shipping Terms:

Minimum Order Quantity: Samples are accepted
Price: Negotiable
Packaging Details: Paper box , Wooden Carton or Customized accepted
Delivery Time: 7-15days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 400T/year
Get Best Price Contact Now

Detail Information

Services: 24hours Material: 100% Virgin Tungsten Carbide Powder
Feature: Rough Ground Surface Finish: Ground
Grade:: YG6X Application: Wear Parts
High Light:

YG6X Tungsten Carbide Nozzles

,

Rough Ground Tungsten Carbide Nozzles

,

Heat Resistant YG6X Carbide Nozzles

Product Description

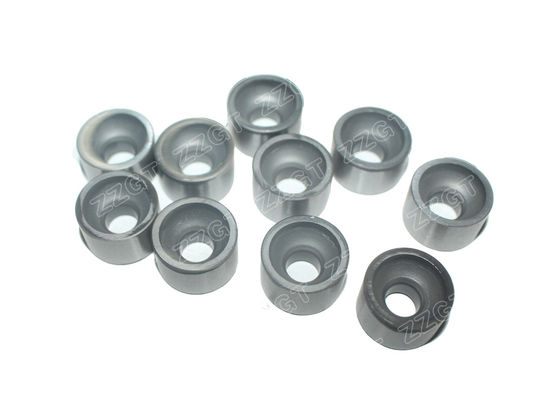

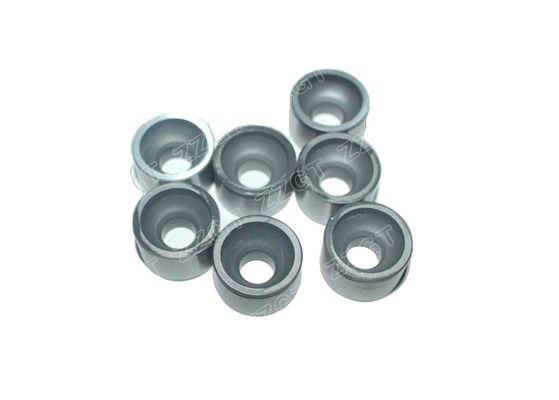

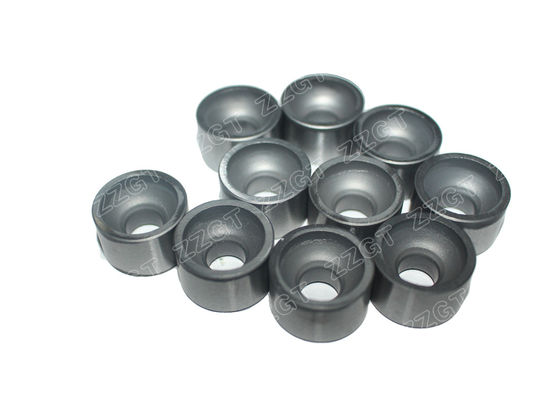

Heat Resistant Rough Ground YG6X Tungsten Carbide Nozzles

YG6X hard metal tungsten carbide nozzles



Cemented carbide has a series of excellent properties, such as high hardness, wear resistance, good strength and toughness, heat resistance, corrosion resistance, etc., especially its high hardness and wear resistance, even at 500 ℃, it is basically unchanged, and still has high hardness at 1000 ℃. Cemented carbide is widely used as cutting tool materials, such as turning tools, milling cutters, planers, drills, boring cutters, etc., for cutting cast iron, non-ferrous metals, plastics, chemical fiber, graphite, glass, stone materials and ordinary steel, as well as for cutting heat-resistant steel, stainless steel, high manganese steel, tool steel and other difficult materials.


Product Description:



Product Name cemented carbide nozzles
Material tungsten  carbide
Size φ20.3*φ8*12.6
Size Tolerance standard tolerance
Color Sliver grey
Recommend Grade Good wear resistance
Grain Size  Fine Grain Size
Application For wear parts
Processing Treatment HIP sintering
Product Features Long life, wear resistance
Certification ISO9001-2015



Heat Resistant Rough Ground YG6X Tungsten Carbide Nozzles 0



Grade Performance



Tungsten Carbide Cold Forging/heading Dies
Grades Density T.R.S Hardness Performance & application recommended
g/cm³ MPa HRA
YG11 14.4 ≥3000 88.5 Forming or stamping dies for metal powders and nonmetal powders.
YG15 14 ≥3400 87.5 For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress.
YG20 13.5 ≥3800 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG15C 14 ≥4000 86.5 For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood.
YG16C 13.9 ≥3500 85.5 Impact resistance forging dies.
YG18C 13.7 ≥3600 84.5 Impact resistance forging dies, hot-press forging dies and rollers.
YG20C 13.5 ≥3800 83.5 Dies for wear resistant or impact resistant application.
YG22C 13.3 ≥4000 83 Nut forming dies and high impact resistance forging dies.
GT55 13.1 ≥4250 82.5 Stainless bolt header dies and rollers.







Factory Equipments:



There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd

* HIP sintering furnace

* Spraying Draying system

* 200T TPA acutomatic press machine

* CNC Grinder

* Spark Erosion machine

* Wire cutting machine,etc



Heat Resistant Rough Ground YG6X Tungsten Carbide Nozzles 1
