K20 K30 Tungsten Carbide round tube inserts for Choke Throttle Valve
Product Details:
Place of Origin: | Zhuzhou,Hunan,China |
Brand Name: | ZZGT Li |
Certification: | ISO9001-2015 |
Model Number: | Customize |
Payment & Shipping Terms:
Minimum Order Quantity: | Samples are accepted |
---|---|
Price: | Negotiable |
Packaging Details: | Paper box , Wooden Carton or Customized accepted |
Delivery Time: | 7-15days |
Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
Supply Ability: | 400T/year |
Detail Information |
|||
Services: | 24hours | Material: | 100% Virgin Tungsten Carbide Powder |
---|---|---|---|
Feature: | Durable And Long Life Time | Surface Finish: | Polished |
Grade: | K20/K30 | Application: | Concrete Milling Machine |
High Light: | K30 Tungsten Carbide Tube Inserts,K20 Tungsten Carbide Tube Inserts,Choke Throttle Valve Round Tube Inserts |
Product Description

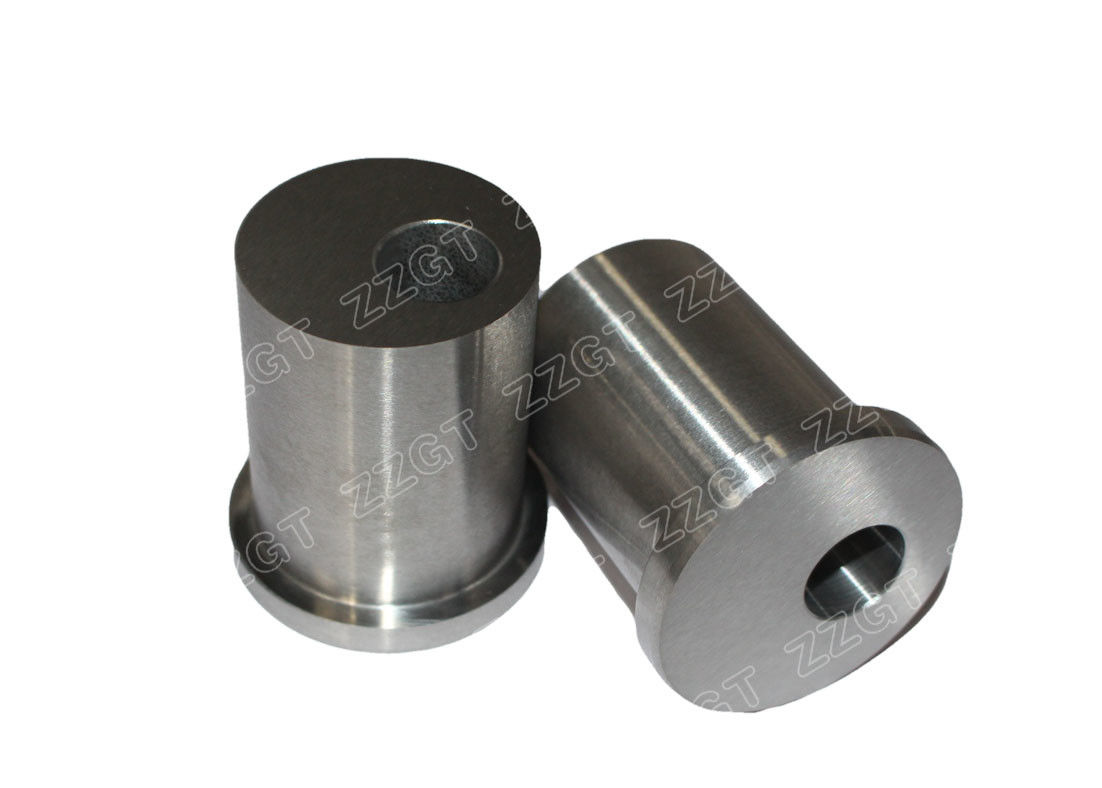

K20 K30 Tungsten Carbide round tube inserts for Choke Throttle Valve
tungsten carbide tube insert in choke throttle valve for Wellhead Control Valve Parts
1. Engraving machine for marking logo and specifications
2. Skin packing machine to avoice the surface scratch
3. Steady and clear classification
4. Soft inner pack ,safe mark, safe transporation
Product Description:
Product Name | Cemented Carbide tube insert |
Material | Hard metal |
Size | Customized |
Size Tolerance | as the drawing |
Color | Sliver grey |
Recommend Grade | Good wear resistance |
Grain Size | Middle Grain Size |
Application | For Mould dies |
Processing Treatment | HIP sintering |
Product Features | Long life, wear resistance |
Certification | ISO9001-2015 |
Grade Performance
Tungsten Carbide Cold Forging/heading Dies | |||||
Grades | Density | T.R.S | Hardness | Performance & application recommended | |
g/cm³ | MPa | HRA | |||
YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. | |
YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. | |
YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. | |
GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. |
Factory Equipments:
There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd
* HIP sintering furnace
* Spraying Draying system
* 200T TPA acutomatic press machine
* CNC Grinder
* Spark Erosion machine
* Wire cutting machine,etc
