1.6Ra E50 Tungsten Carbide Cutter For Scraper Buckets

1.6Ra E50 Tungsten Carbide Cutter For Scraper Buckets

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: ZZGT Li
Certification: ISO9001-2015
Model Number: 45mmmm

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Paper box , Wooden Carton or Customized accepted
Delivery Time: 15days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 400T/year
Get Best Price Contact Now

Detail Information

Sample: Available Material: Tungsten Steel
Feature: Good Impact Resistance Surface Finish: 1.6Ra
Grade: E50 Application: Used On Scraper Buckets
High Light:

E50 Tungsten Carbide Cutter


1.6Ra Tungsten Carbide Cutter

Product Description

1.6Ra E50 Tungsten Carbide Cutter For Scraper Buckets

Custom Tungsten Carbide Cutter Used On Scraper Buckets For Tunnel Boring Machine


Qucik Details:

Cemented carbide,or WC,has a number of unique and impressive characteristics,the most significant being the ability to resist abrasion. It is the hardest metal known to man.Sintered and finished carbide has a combination of compressive strength,extreme hot hardness at high temperatures,and resistance to abrasion,corrosion and thermal shock.Cemented carbide special products are made of cemented carbide and have the advantage of cemented carbide which is of wear resistance, hardness and corrosion.we are engaged in exporting,manufacturing and supplying a superior quality spectrum of TBM Tungsten Carbide Shield Cutter For Tunnel Boring Machine in Zhuzhou,Hunan,China.TBM Tungsten Carbide Shield Cutters are mainly used in underground mining and traffic tunnelling like metro, railway and road tunneling,made of high virgin raw material with submicron and average grain size.It has high hardness and impact toughness, very good mechanical & chemical stability,tolerance control is strict,grades can be chosen as per customer requirements.We are engaged to produce super quality carbide cutting tools all the time. Factory focused on developing new grade of carbide material and develop new carbide cutting tools for create the high efficiency machining and reduce the production cost for our clients.

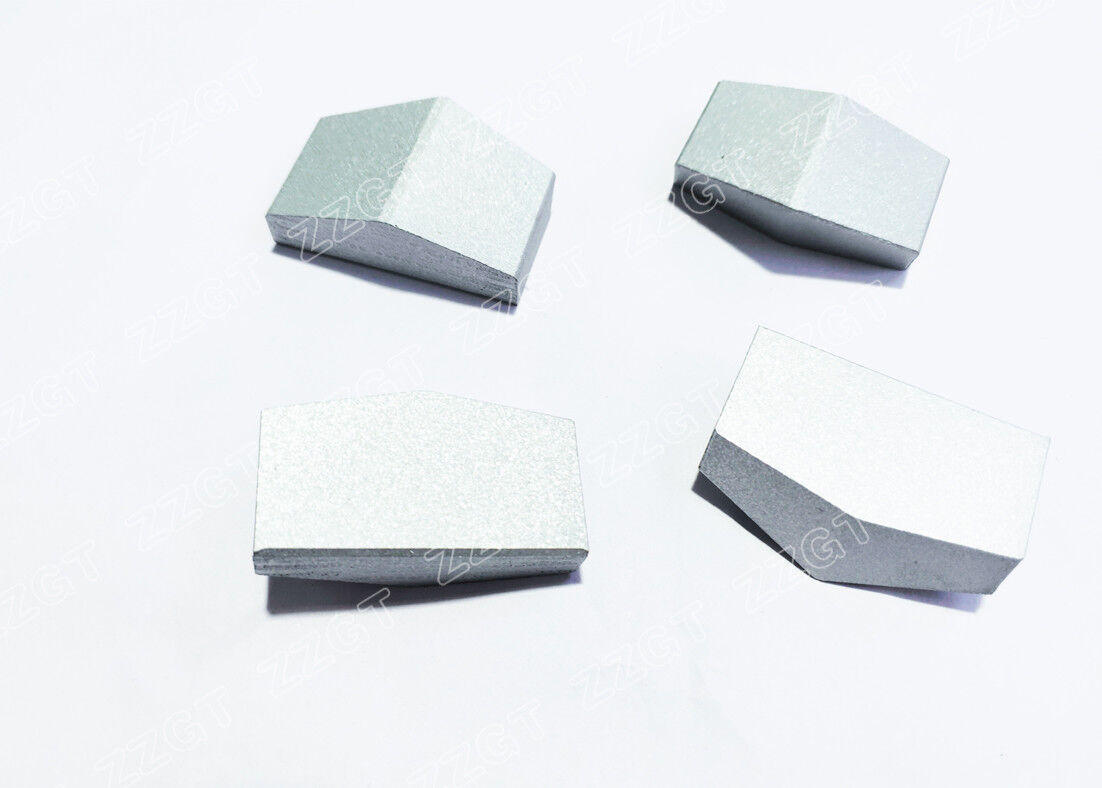

Product Picture:

1.6Ra E50 Tungsten Carbide Cutter For Scraper Buckets 0



Product Description:

Grade Density  T.R.S Hardness Performance & Application Recommended
g/cm3 MPα HRA
YG8C 14.7 2450 88.5   Mostly used as the buttons of small and mediumsized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations.
YG9C 14.6 2450 87.8 Suitable for super hard rock formation with excellent wear resistance.
YG10C 14.4 2550 87 Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations.
YG11C 14.4 2600 87  Suitable for soft, medium and hard rock formations, with high toughness.
E50 14.2 2650 86.5 Predominatly for the buttons of tricone bits and inserts of rotary percussion bits to cut hard and vey hard formations.
YG15C 14 2700 86.5 For oil cone drill bits, for medium soft and medium -hard rocks



Factory Equipments:


There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd

* HIP sintering furnace

* Spraying Draying system

* 200T TPA acutomatic press machine

* CNC Grinder

* Spark Erosion machine

* Wire cutting machine,etc

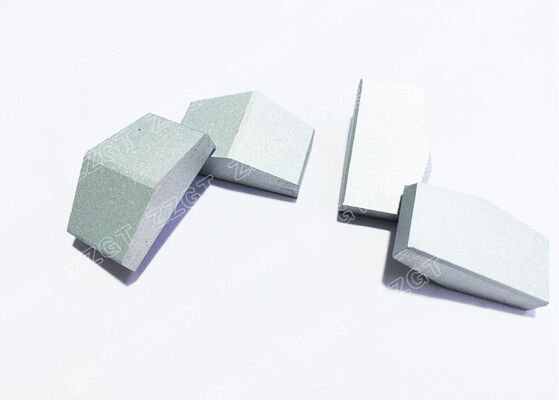

1.6Ra E50 Tungsten Carbide Cutter For Scraper Buckets 1






Q: Are you trading company or manufacturer ?

A: We are factory.


Q: How can i place an order ?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.


Q: What is your terms of delivery ?
A: We accept EXW, FOB, C&F, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.


Q: How long is your delivery time ?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.


Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.


Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
