φ15x16 YG13C Tungsten Carbide Buttons For DTH Bits
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | ZZGT Li |
| Certification: | ISO9001-2015 |
| Model Number: | φ15x16 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Samples are accepted |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Paper box , Wooden Carton or Customized accepted |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 400T/year |
|
Detail Information |
|||
| Services: | 24hours | Material: | 100% Virgin Tungsten Carbide Powder |
|---|---|---|---|
| Feature: | Durable And Long Life Time | Surface Finish: | Ground |
| Grade: | YG13C | Application: | DTH Bit |
| High Light: | YG13C Tungsten Carbide Buttons,φ15x16 Tungsten Carbide Buttons,ISO 9001 cemented carbide buttons |
||
Product Description

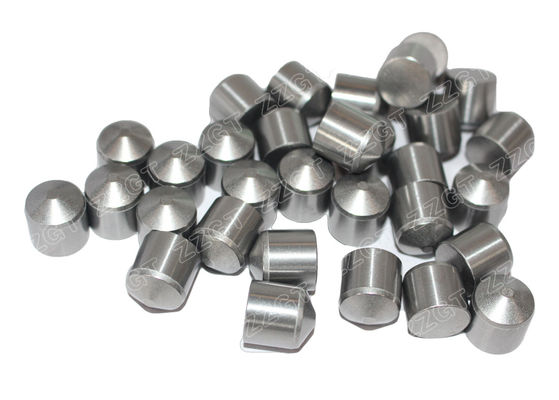

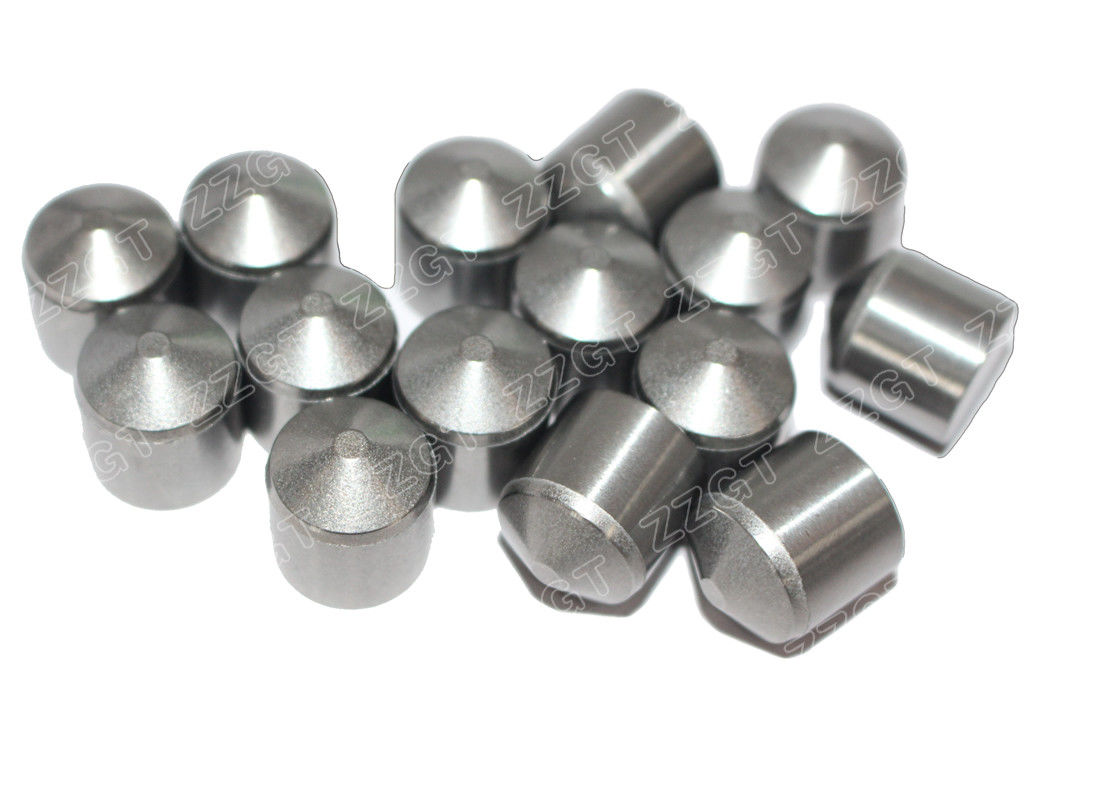

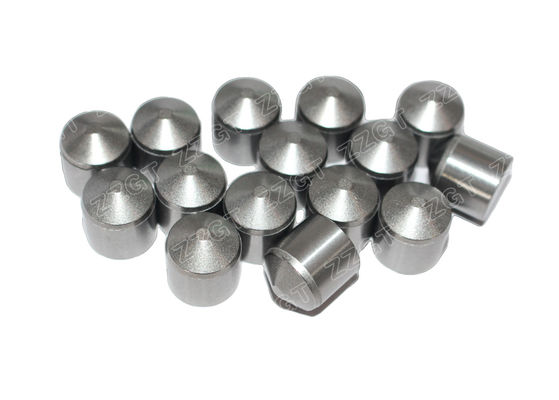

φ15x16 YG13C Tungsten Carbide Buttons For DTH Bits
ISO 9001 Certificate YG13C Tungsten Carbide TC buttons for DTH bits and hard rock bit
Tungsten carbide buttons are sintered by coarse grained WC powder, with proerties of high hardness and good transverse-rupture strength, as well as corrosion resistance, resistance to acid and alkali, long service life.
They are mainly classified as follows: the cutting tips used by cold pavement milling-planing machine, the cutting tips used by rotary digging machinery, the cutting tips used by coal digging machine, the cutting tips used by roadway and tunnel boring machine, the cutting tips used by trench excavator etc. They are widely used for crushing or milling rocks. Cutting tips are tools for rock digging widely used in mining and geotechnical engineering.
Product Description:
| Product Name | Cemented Carbide buttons |
| Material | Hard metal |
| Size | φ15x16 |
| Size Tolerance | standard tolerance |
| Color | Sliver grey |
| Recommend Grade | Good wear resistance |
| Grain Size | Middle Grain Size |
| Application | For Crushing |
| Processing Treatment | HIP sintering |
| Product Features | Long life, wear resistance |
| Certification | ISO9001-2015 |
Grade Performance
| Tungsten Carbide Cold Forging/heading Dies | |||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended | |
| g/cm³ | MPa | HRA | |||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
| YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. | |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. | |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. | |
| GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. | |
More Details:
Factory Equipments:
There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd
* HIP sintering furnace
* Spraying Draying system
* 200T TPA acutomatic press machine
* CNC Grinder
* Spark Erosion machine
* Wire cutting machine,etc
