Hardalloy insert for drill string stabilizers HF4000
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | ZZGT Li |
| Certification: | ISO9001:2015 |
| Model Number: | Diameter 10x 8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Samples are accepted |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Paper box , Wooden Carton or Customized accepted |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 400T/year |
|
Detail Information |
|||
| Material: | Virgin Tungsten Carbide | ISO: | K20 |
|---|---|---|---|
| Surface: | Sand Blasted | Application: | HF4000 Stabilizer |
| Service: | 24hours | OEM: | Accepted |
| Highlight: | Hardalloy drill string stabilizer insert,Tungsten carbide mining drill insert,HF4000 stabilizer insert with warranty |
||
Product Description

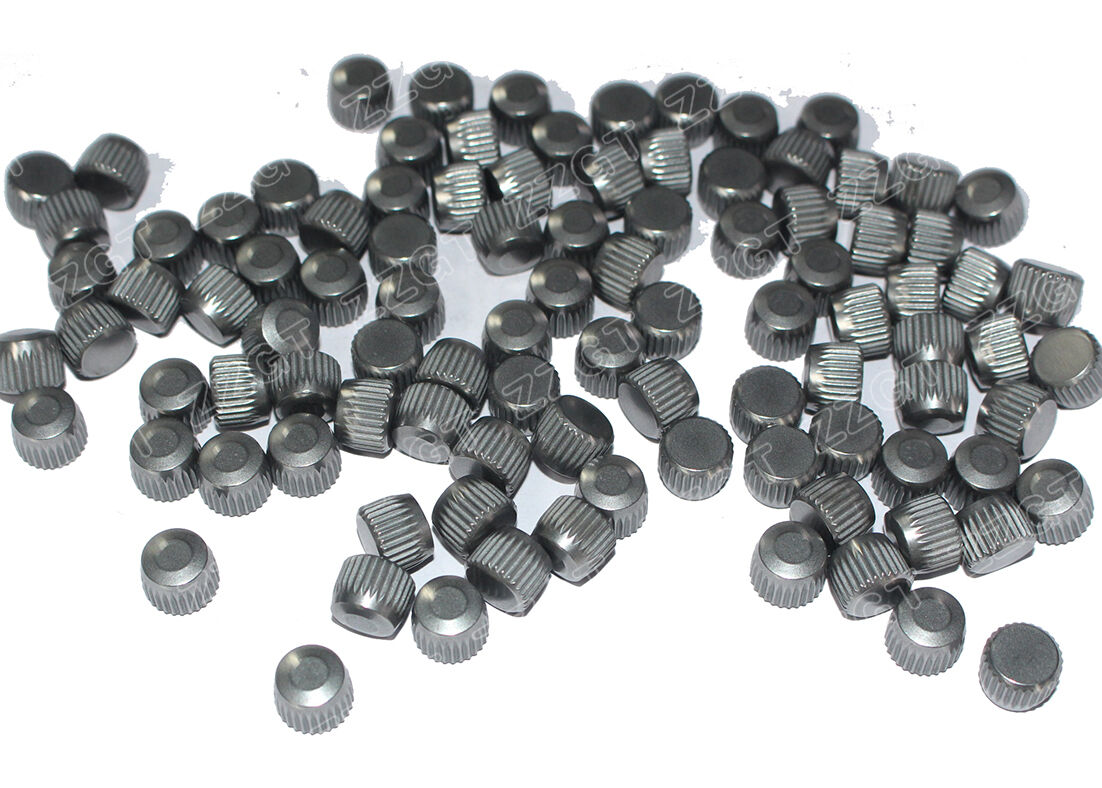

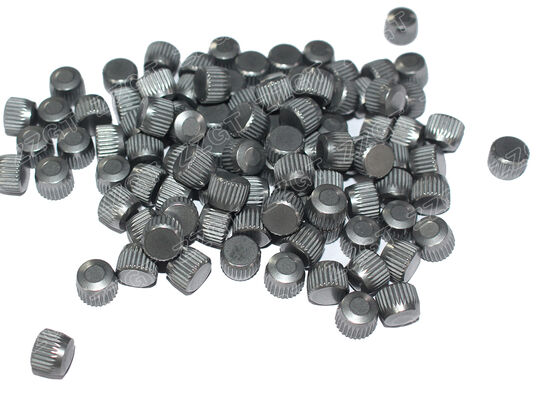

Hardalloy Insert for Drill String Stabilizers HF4000
Zhuzhou Gingte Cemented Carbide Company maintains an unwavering commitment to product quality and customer satisfaction. Through careful selection of staff, equipment, and raw materials, we achieve exceptional product quality that has earned recognition in both domestic and international markets.
HF4000 Stabilizer Technology
In drilling string stabilizers (downhole tools used in oil and gas drilling to control wellbore deviation), international practice categorizes hardfacing methods using a numbering system from HF1000 to HF6000.
HF4000 refers specifically to the "inserted cemented carbide stud/button" type stabilizer. This proven wear-resistant technique involves embedding carbide materials into the stabilizer body as studs or buttons, providing deep carbide coverage ideal for highly abrasive formations and applications requiring strong deviation control.
Material and Applications
Material: Inserts are manufactured from cemented carbide (tungsten carbide), typically using YG8 grade material. This provides exceptional hardness (up to 86 HRA or above) and effectively resists wear from contact with hard metals in the wellbore and abrasive rock formations.
Applicable Formations: Ideal for easily worn, hard rock formations including chert, quartzite, and other highly abrasive strata. The preferred choice for high-abrasion drilling environments.
Grade Performance Specifications
| Grades | Density (g/cm³) | T.R.S (MPa) | Hardness (HRA) | Performance & Application |
|---|---|---|---|---|
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders |
| YG15 | 14 | ≥3400 | 87.5 | Drawing dies for steel tubes and rods; punching, stamping, forging tools under large stress |
| YG20 | 13.5 | ≥3800 | 85.5 | Stamping dies for watch parts, spring plates, battery jars, small steel balls, screws, screw caps |
| YG15C | 14 | ≥4000 | 86.5 | Oil cone drill bits; cutting medium soft and hard rocks; wood debarking and cutting |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant applications |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies |
| GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers |
Product Details
Advanced Manufacturing Equipment
Zhuzhou Gingte Cemented Carbide Co., Ltd utilizes state-of-the-art production equipment including:
- HIP sintering furnace
- Spraying Drying system
- 200T TPA automatic press machine
- CNC Grinder
- Spark Erosion machine
- Wire cutting machine
