YG11C Hard alloy insert for drill string stabilizers HF4000
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | ZZGT Li |
| Certification: | ISO9001:2015 |
| Model Number: | Diameter 10x 8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Samples are accepted |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Paper box , Wooden Carton or Customized accepted |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 400T/year |
|
Detail Information |
|||
| Material: | Virgin Tungsten Carbide | ISO: | K20 |
|---|---|---|---|
| Surface: | Sand Blasted | Application: | HF4000 Stabilizer |
| Service: | 24hours | OEM: | Accepted |
| Highlight: | YG11C hard alloy drill insert,tungsten carbide stabilizer insert,HF4000 drill string stabilizer |
||
Product Description

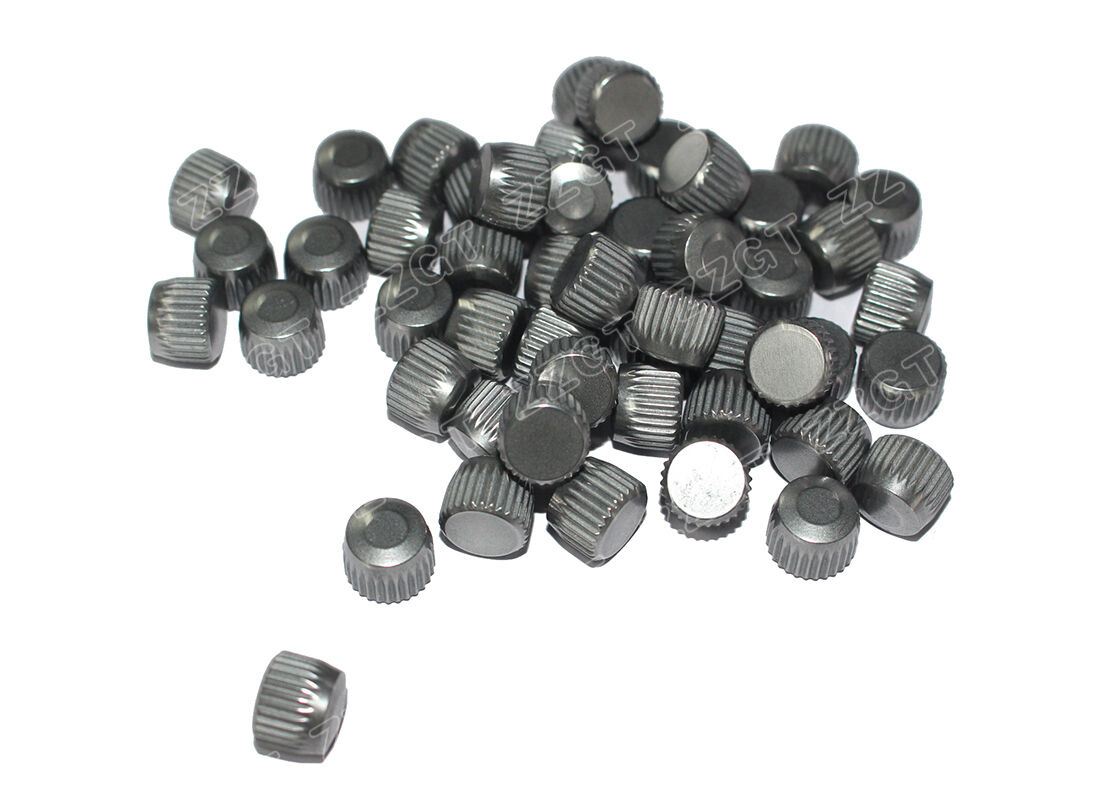

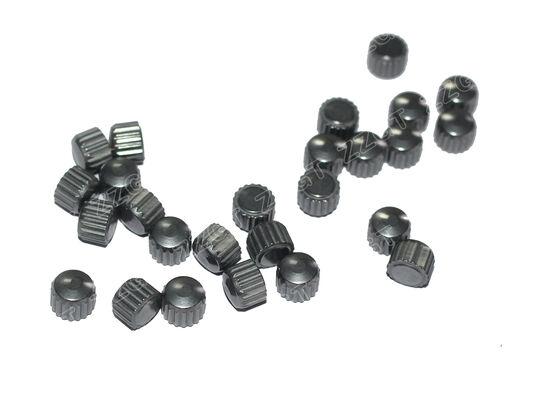

YG11C Hard Alloy Insert for Drill String Stabilizers HF4000
Since its foundation, Zhuzhou Gingte Cemented Carbide Company has maintained a steadfast commitment to product quality and customer satisfaction. Through careful selection of staff, equipment, and raw materials, we achieve exceptional product quality that has earned recognition in both domestic and international markets.
About HF4000 Stabilizer Technology
In the field of drill string stabilizers (downhole tools used in oil and gas drilling to control wellbore deviation), international practice categorizes hardfacing methods using a numbering system from HF1000 to HF6000.
HF4000 Process Characteristics
- HF4000 refers to the "inserted cemented carbide stud/button" type stabilizer, a classic and proven wear-resistant technique
- Unlike HF3000 (spray-welding carbide blocks and powder), HF4000 involves embedding carbide materials into the stabilizer body as studs or buttons
- Carbide inserts are cold-pressed into the body, maintaining a tight fit and providing deep carbide coverage
- Particularly suitable for drilling in highly abrasive formations and applications requiring strong deviation control
Material and Applications
Material: Inserts are made of cemented carbide (tungsten carbide), typically grade YG8, offering extremely high hardness (up to 86 HRA or above) to effectively resist wear from contact with hard metals and abrasive rock formations.
Applicable Formations: Suitable for easily worn, hard rock formations including chert, quartzite, and other highly abrasive strata. The preferred option for high-abrasion drilling environments.
Grade Performance Specifications
| Grades | Density (g/cm³) | T.R.S (MPa) | Hardness (HRA) | Performance & Application |
|---|---|---|---|---|
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders |
| YG15 | 14 | ≥3400 | 87.5 | Drawing dies of steel tubes and rods under high compressibility ratio; punching, stamping, forging tools under large stress |
| YG20 | 13.5 | ≥3800 | 85.5 | Stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps |
| YG15C | 14 | ≥4000 | 86.5 | Oil cone drill bits, cutting medium soft and hard rocks; debarking and cutting of frozen wood, soft wood and original wood |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies |
| GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers |
Product Details
Factory Equipment
Zhuzhou Gingte Cemented Carbide Co., Ltd utilizes advanced production equipment including:
- HIP sintering furnace
- Spraying Drying system
- 200T TPA automatic press machine
- CNC Grinder
- Spark Erosion machine
- Wire cutting machine, etc.
