High Abrasion YG20 Tungsten Carbide Bush With T Shape

High Abrasion YG20 Tungsten Carbide Bush With T Shape

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: ZZGT Li
Certification: ISO9001-2015
Model Number: φ53.4x61

Payment & Shipping Terms:

Minimum Order Quantity: Samples are accepted
Price: Negotiable
Packaging Details: Paper box , Wooden Carton or Customized accepted
Delivery Time: 7-15days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 400T/year
Get Best Price Contact Now

Detail Information

Services: 24hours Material: 100% Virgin Tungsten Carbide Powder
Feature: Durable And Long Life Time Surface Finish: Ground
Grade:: YG20 Application: Petroleum & Oil
High Light:

YG20 Tungsten Carbide Bush

,

High Abrasion Tungsten Carbide Bush

,

YG20 tungsten carbide sleeve

Product Description

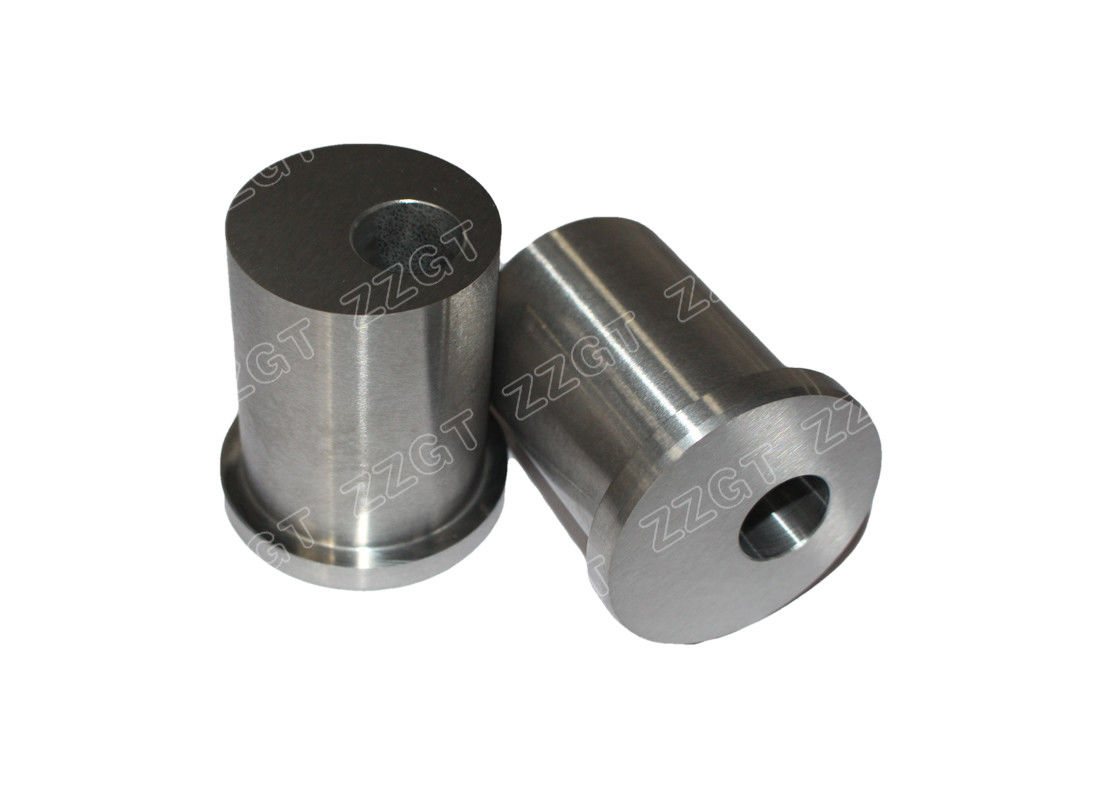

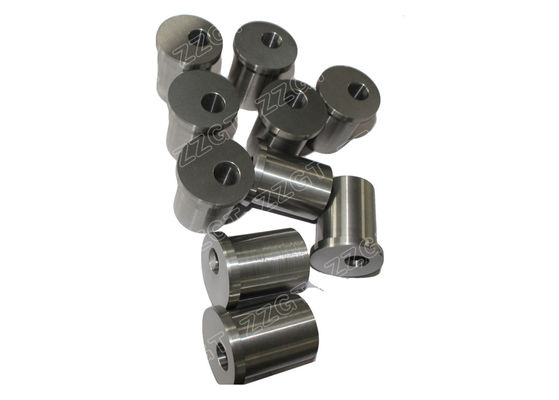

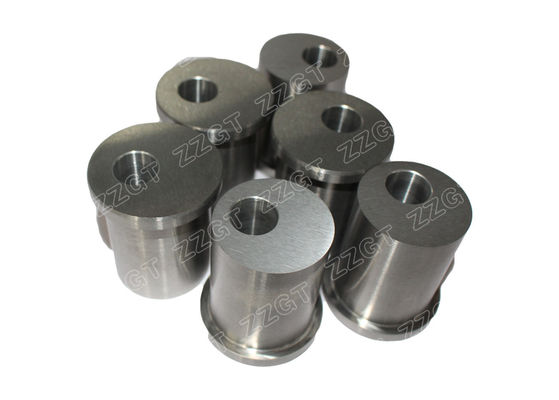

High Abrasion YG20 Tungsten Carbide Bush With T Shape

High abrasion tungsten carbide bush sleeve with T shape



Tungsten carbide features: High hardness, corrosion and wear resistance etc. It’s high hardness and wear resistance to ensure valve seat guarantee quality. The advantage is tungsten carbide is washing-out resistance. When the liquid into valve, it will washing-out valve seat. The raw material is more important. When parts or machine rubbing against each other, we always using tungsten carbide for valve seat raw material. This way is most quickly, easily way to solve work piece corrosion problem. It’s versatility and flexibility in various work piece. It’s mainly used in Oil, Gas industry and so on. After accurate grinding and polishing, the frictional factor of surface is very low. We accept customized service.



If you have other specification, you can contact us. Zhuzhou Gingte  is your partner in Tungsten carbide industry. For tungsten carbide material grade, we suggest: YG8, YG11, YG15, YS2T, YL10.2, YN8 other grade can be offered by customers’ request.




Product Description:



Product Name  Tungsten Carbide Valve Set
Material Hard metal
Size φ53.4x61
Size Tolerance standard tolerance
Color Sliver grey
Recommend Grade Good wear resistance
Grain Size Middle Grain Size
Application For Wear Parts
Processing Treatment HIP sintering
Product Features Long life, wear resistance
Certification ISO9001-2015



Grade Performance



Tungsten Carbide Cold Forging/heading Dies
Grades Density T.R.S Hardness Performance & application recommended
g/cm³ MPa HRA
YG11 14.4 ≥3000 88.5 Forming or stamping dies for metal powders and nonmetal powders.
YG15 14 ≥3400 87.5 For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress.
YG20 13.5 ≥3800 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG15C 14 ≥4000 86.5 For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood.
YG16C 13.9 ≥3500 85.5 Impact resistance forging dies.
YG18C 13.7 ≥3600 84.5 Impact resistance forging dies, hot-press forging dies and rollers.
YG20C 13.5 ≥3800 83.5 Dies for wear resistant or impact resistant application.
YG22C 13.3 ≥4000 83 Nut forming dies and high impact resistance forging dies.
GT55 13.1 ≥4250 82.5 Stainless bolt header dies and rollers.





Factory Equipments:



There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd

* HIP sintering furnace

* Spraying Draying system

* 200T TPA acutomatic press machine

* CNC Grinder

* Spark Erosion machine

* Wire cutting machine,etc
