Non Standard YG6X Cemented Tungsten Carbide Sleeve
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | ZZGT Li |
| Certification: | ISO9001-2015 |
| Model Number: | φ12xφ8x15 and φ22xφ12x15 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Samples are accepted |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Paper box , Wooden Carton or Customized accepted |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 400T/year |
|
Detail Information |
|||
| Services: | 24hours | Material: | 100% Virgin Tungsten Carbide Powder |
|---|---|---|---|
| Feature: | Durable And Long Life Time | Surface Finish: | Ground |
| Grade:: | YG6X | Application: | Pump |
| High Light: | YG6X Carbide Wear Parts,YG6X carbide sleeve |
||
Product Description

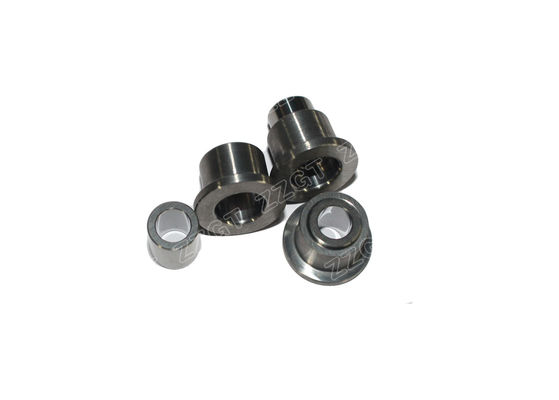

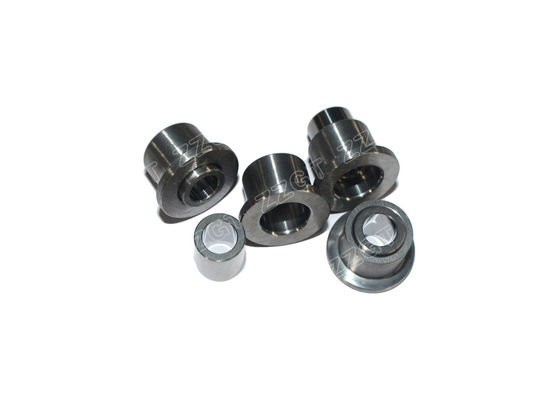

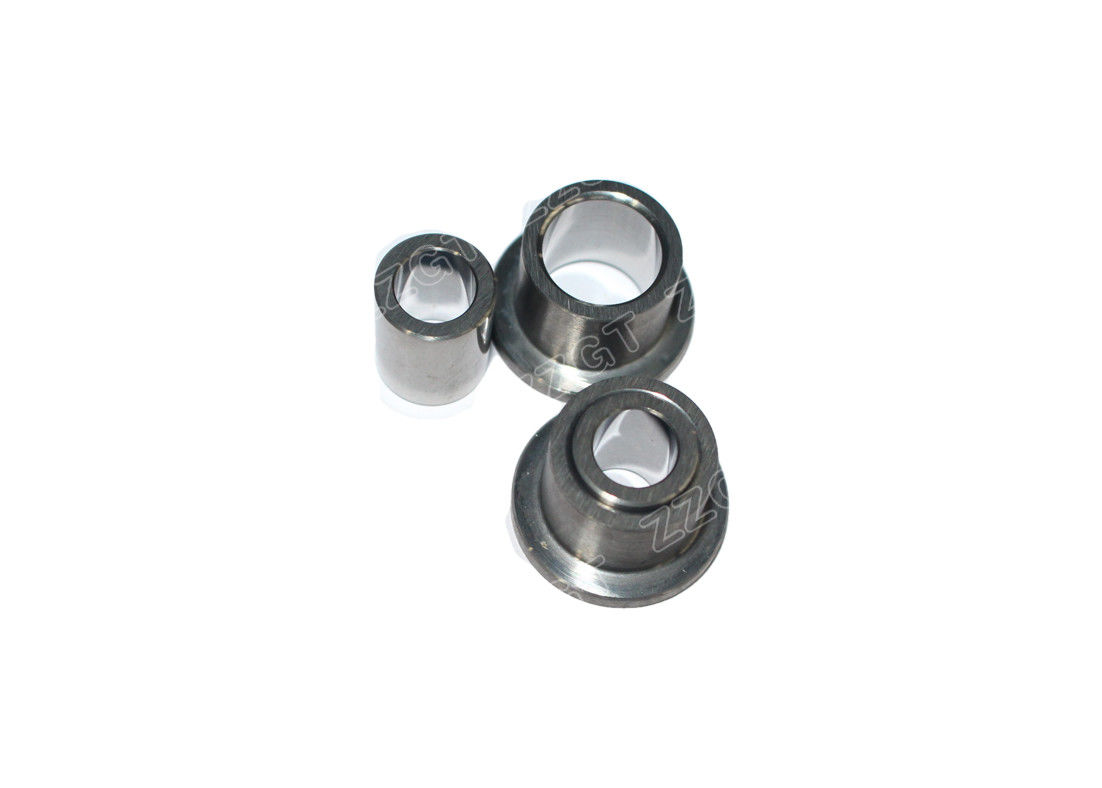

Non Standard YG6X Cemented Tungsten Carbide Sleeve
Zhuzhou Non-Standard Cemented Carbide Sleeve Carbide Wear Resistant Parts
Tungsten Carbide Bushing Sleeve
In order to achieve the best possible performance, it's very important to choose the suitable carbide grade for your application, our experienced engineers can assist you with your design and material selection ensuring the best wear for your particular need.
Product Description:
| Product Name | Tungsten Carbide sleeve bushing |
| Material | Hard metal |
| Size | φ12xφ8x15 and φ22xφ12x15 |
| Size Tolerance | standard tolerance |
| Color | Sliver grey |
| Recommend Grade | Good wear resistance |
| Grain Size | Middle Grain Size |
| Application | For oil or water pump |
| Processing Treatment | HIP sintering |
| Product Features | Long life, wear resistance |
| Certification | ISO9001-2015 |
Grade Performance
| Tungsten Carbide Cold Forging/heading Dies | |||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended | |
| g/cm³ | MPa | HRA | |||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
| YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. | |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. | |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. | |
| GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. | |
More Details:
Factory Equipments:
There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd
* HIP sintering furnace
* Spraying Draying system
* 200T TPA acutomatic press machine
* CNC Grinder
* Spark Erosion machine
* Wire cutting machine,etc
