YG8 8% Cobalt K20 OD25*ID12*4mm Custom Tungsten Carbide Baffle Cutting Loops Ring
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | ZZGT Li |
| Certification: | ISO9001:2015 |
| Model Number: | OD25*ID12*4mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | Samples are accepted |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Paper box , Wooden Carton or Customized accepted |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 400T/year |
|
Detail Information |
|||
| Surface Finish: | Ra0.8 & Ground | Services: | 24hours |
|---|---|---|---|
| Material: | 100% Virgin Tungsten Carbide Powder | ISO: | K20 |
| OEM/ODM: | Yes | Application: | Baffle Cutting Loops |
| High Light: | tungsten carbide alloy products,tungsten carbide material products |
||
Product Description

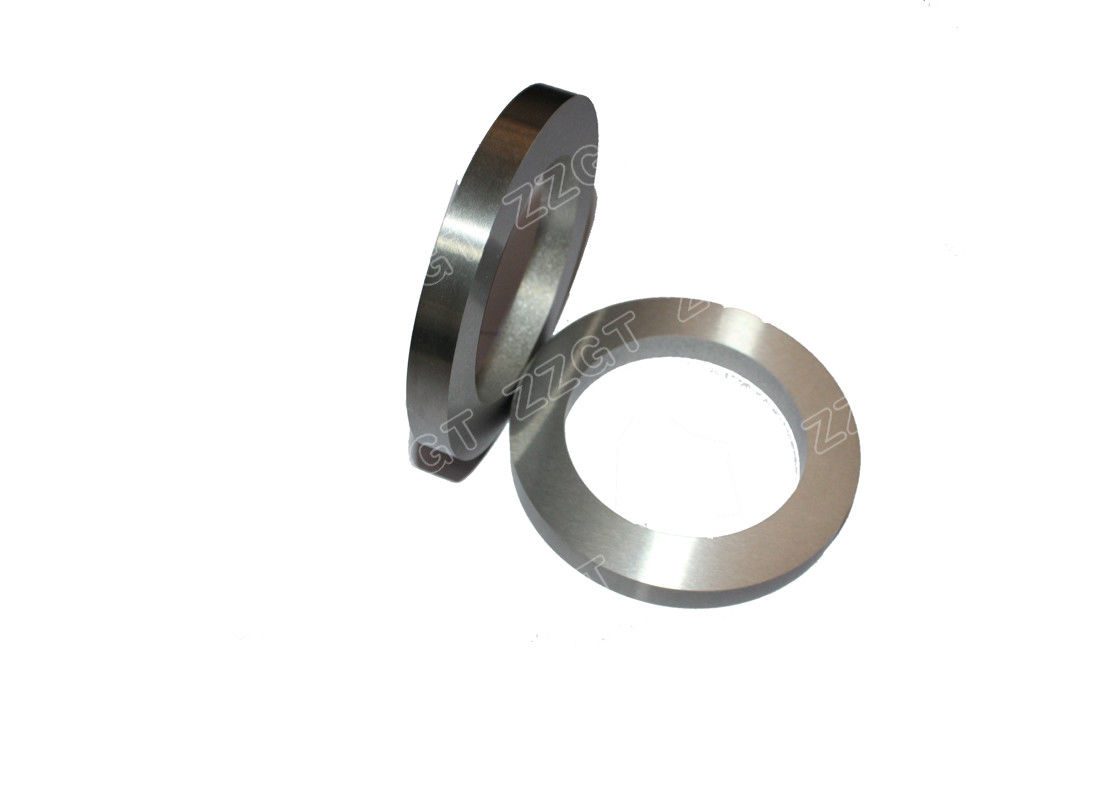

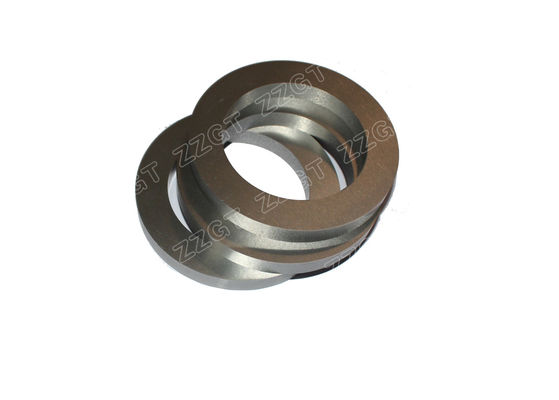

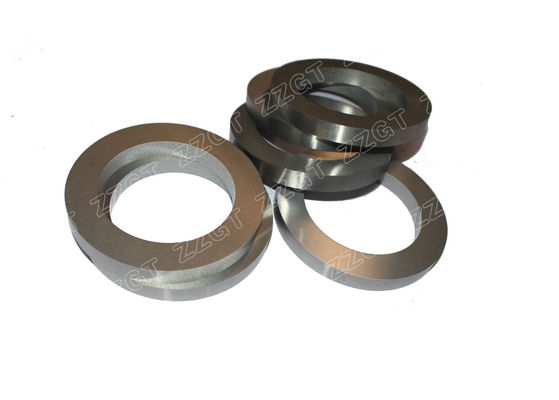

YG8 8% Cobalt K20 OD25*ID12*4mm Custom Tungsten Carbide Baffle Cutting Loops Ring
YG8 8% Cobalt K20 OD25*ID12*4mm ground solid tungsten carbide baffle cutting loops ring
YG8 OD18*ID10.5*23mm high wear resistance tungsten carbide Ring
1. Other grade choose: YL10.2,YG10X,YG12X,YG15,YG20,YG10,YG8,YG8 etc.
2. Density:14.85g/cm3
3. Hardness:89.5Hra
4. 8% Co,92% Wc
5. product according client's drawing, we can make free molds when the quantity up to 100kg
Product Description:
| Product Name | tungsten carbide baffle cutting loops ring |
| Material | Hard metal |
| Size | OD25*ID12*4mm |
| Size Tolerance | According to the drawing |
| Color | Sliver grey |
| Recommend Grade | K30 |
| Grain Size | Middle Grain Size |
| Application | baffle cutting loops |
| Processing Treatment | HIP sintering |
| Product Features | Long life, wear resistance |
| Certification | ISO9001-2015 |
Grade Performance
| Tungsten Carbide Cold Forging/heading Dies | |||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended | |
| g/cm³ | MPa | HRA | |||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
| YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. | |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. | |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. | |
| GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. | |
More Details:
Factory Equipments:
There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd
* HIP sintering furnace
* Spraying Draying system
* 200T TPA acutomatic press machine
* CNC Grinder
* Spark Erosion machine
* Wire cutting machine,etc
