Polished Cemented Tungsten Carbide Cutting Disc / Grinding Disk In Round
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | ZZGT Li |
| Certification: | OD170XID150X15 |
| Model Number: | φ179.8*φ100*13.7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Samples are accepted |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Paper box , Wooden Carton or Customized accepted |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 400T/year |
|
Detail Information |
|||
| Services: | 24hours | Material: | 100% Virgin Tungsten Carbide Powder |
|---|---|---|---|
| ISO: | K30 | Surface Finish: | Ground |
| OEM/ODM: | Yes | Application: | Grinding Disk |
| High Light: | carbide cutting disc,tungsten carbide wheel cutter |
||
Product Description

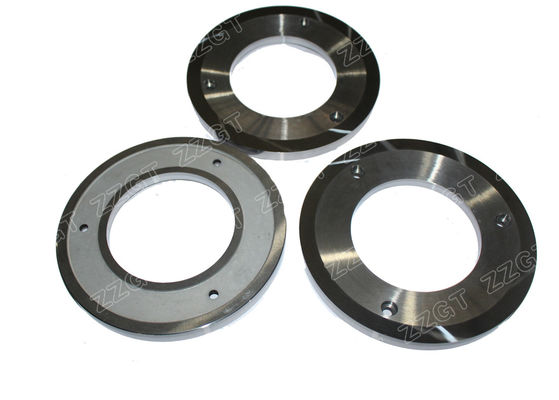

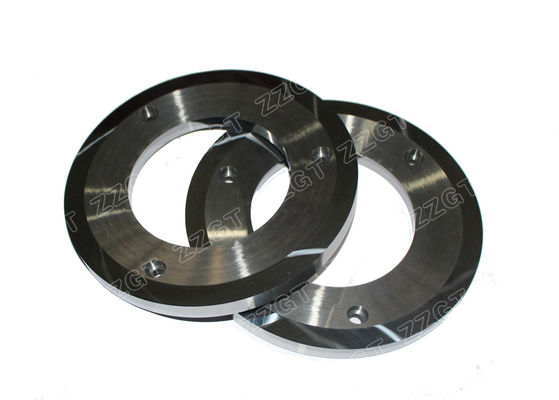

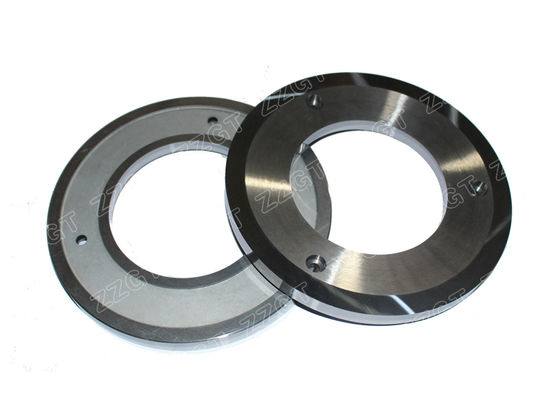

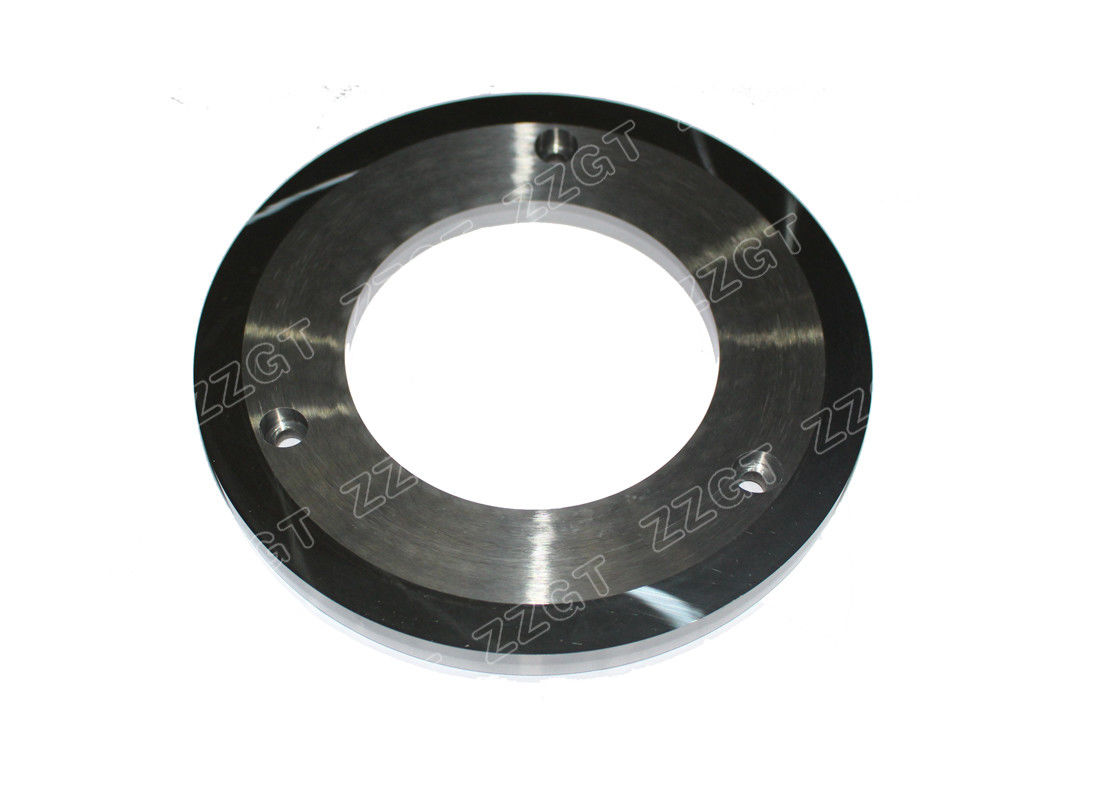

Polished Cemented Tungsten Carbide Cutting Disc / Grinding Disk In Round
Polished tungsten carbide grinding disk
About Us
Tungsten carbide Sintering at 1500'c
The tungsten carbide, along with its excellent properties, is produced through sintering in vacuum furnaces and sinter-hip installations. Precise process management which, in addition to specialist knowledge, also demands a great deal of experience, forms a decisive factor in the quality of the tungsten carbide produced.
Product Description:
| Product Name | tungsten carbide grinding disk |
| Material | Hard metal |
| Size | OD179.8XID100X13.7 |
| Size Tolerance | According to the drawing |
| Color | Sliver grey |
| Recommend Grade | K30 |
| Grain Size | Middle Grain Size |
| Application | Tungsten Carbide-protected wear parts |
| Processing Treatment | HIP sintering |
| Product Features | Long life, wear resistance |
| Certification | ISO9001-2015 |
Grade Performance
| Tungsten Carbide Cold Forging/heading Dies | |||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended | |
| g/cm³ | MPa | HRA | |||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
| YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. | |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. | |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. | |
| GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. | |
More Details:
Factory Equipments:
There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd
* HIP sintering furnace
* Spraying Draying system
* 200T TPA acutomatic press machine
* CNC Grinder
* Spark Erosion machine
* Wire cutting machine,etc
