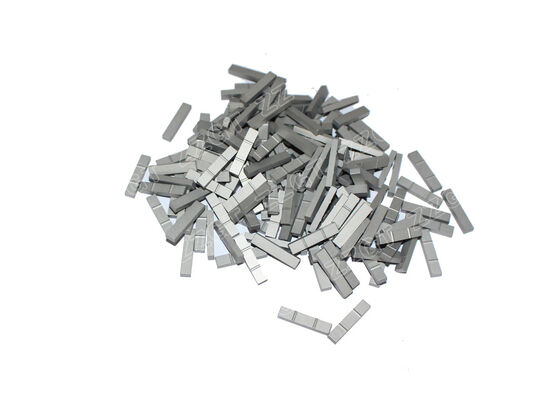

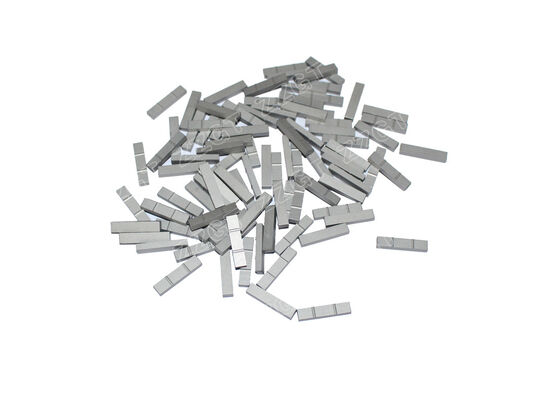

YG9D 13x5x4 Custom Tungsten Carbide Block Tiles For Tile TC Bearings

YG9D 13x5x4 Custom Tungsten Carbide Block Tiles For Tile TC Bearings

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: ZZGT Li
Certification: ISO9001:2015
Model Number: 13x5x4

Payment & Shipping Terms:

Minimum Order Quantity: Samples are accepted
Price: Negotiable
Packaging Details: Paper box , Wooden Carton or Customized accepted
Delivery Time: 7-15days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 400T/year
Get Best Price Contact Now

Detail Information

Services: 24hours Material: 100% Virgin Tungsten Carbide Powder
ISO: K30 Surface Finish: Sandblasted
OEM/ODM: Yes Application: Tile TC Bearings
High Light:

tungsten carbide alloy products

,

cemented tungsten carbide products

Product Description



YG9D 13x5x4 Tungsten Carbide Block Tiles For Tile TC Bearings







About Carbide tiles



used to grind borehole wall for the purpose of gauge protection.The sizes available as follows:

6x5x3 mm
6x5x4 mm
13x5x3 mm
13x5x4 mm
20x5x4 mm
25x5x3 mm
25x5x4 mm



Our carbide are used as YG8 YG9D YG10X wear parts tungsten carbide block, wear resistance tungsten carbide block to reduce wearing away and protect the machine parts, etc.




Product Description:



Product Name tungsten carbide titles
Material Hard metal
Size 13x5x4
Size Tolerance Blank tolerance
Color Sliver grey
Recommend Grade YG8,YG9D,YG10X
Grain Size Middle Grain Size/Fine Grain Size
Application Ground borehole wall
Processing Treatment HIP sintering
Product Features Long life, wear resistance
Certification ISO9001-2015



Grade Performance



Tungsten Carbide Cold Forging/heading Dies
Grades Density T.R.S Hardness Performance & application recommended
g/cm³ MPa HRA
YG11 14.4 ≥3000 88.5 Forming or stamping dies for metal powders and nonmetal powders.
YG15 14 ≥3400 87.5 For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress.
YG20 13.5 ≥3800 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG15C 14 ≥4000 86.5 For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood.
YG16C 13.9 ≥3500 85.5 Impact resistance forging dies.
YG18C 13.7 ≥3600 84.5 Impact resistance forging dies, hot-press forging dies and rollers.
YG20C 13.5 ≥3800 83.5 Dies for wear resistant or impact resistant application.
YG22C 13.3 ≥4000 83 Nut forming dies and high impact resistance forging dies.
GT55 13.1 ≥4250 82.5 Stainless bolt header dies and rollers.







More Details:



YG9D 13x5x4 Custom Tungsten Carbide Block Tiles For Tile TC Bearings 0





Factory Equipments:



There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd

* HIP sintering furnace

* Spraying Draying system

* 200T TPA acutomatic press machine

* CNC Grinder

* Spark Erosion machine

* Wire cutting machine,etc



YG9D 13x5x4 Custom Tungsten Carbide Block Tiles For Tile TC Bearings 1
