Original Yg15 Grade Custom Tungsten Carbide Teeth On Cultivators Use
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | ZZGT Li |
| Certification: | ISO9001:2015 |
| Model Number: | 30x12x4.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Samples are accepted |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Paper box , Wooden Carton or Customized accepted |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 400T/year |
|
Detail Information |
|||
| Services: | 24hours | Material: | 100% Virgin Tungsten Carbide Powder |
|---|---|---|---|
| ISO: | K30 | Surface Finish: | Sandblasting |
| OEM/ODM: | Yes | Application: | Cultivators |
| High Light: | tungsten carbide alloy products,tungsten carbide material products |
||
Product Description

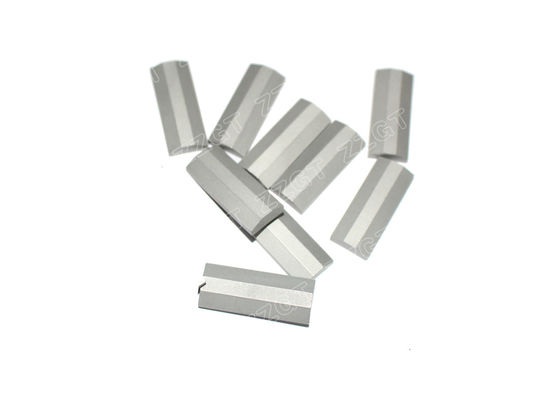

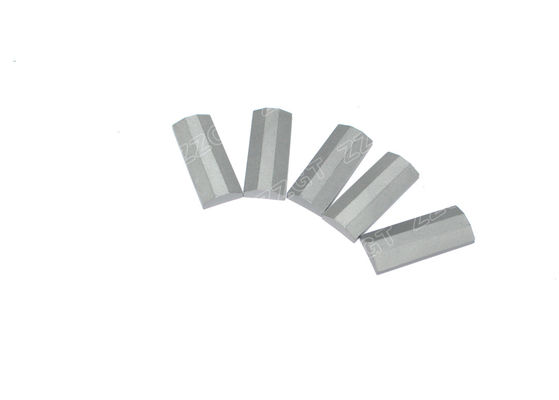

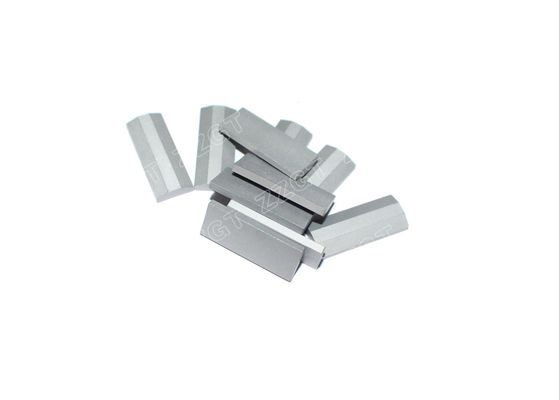

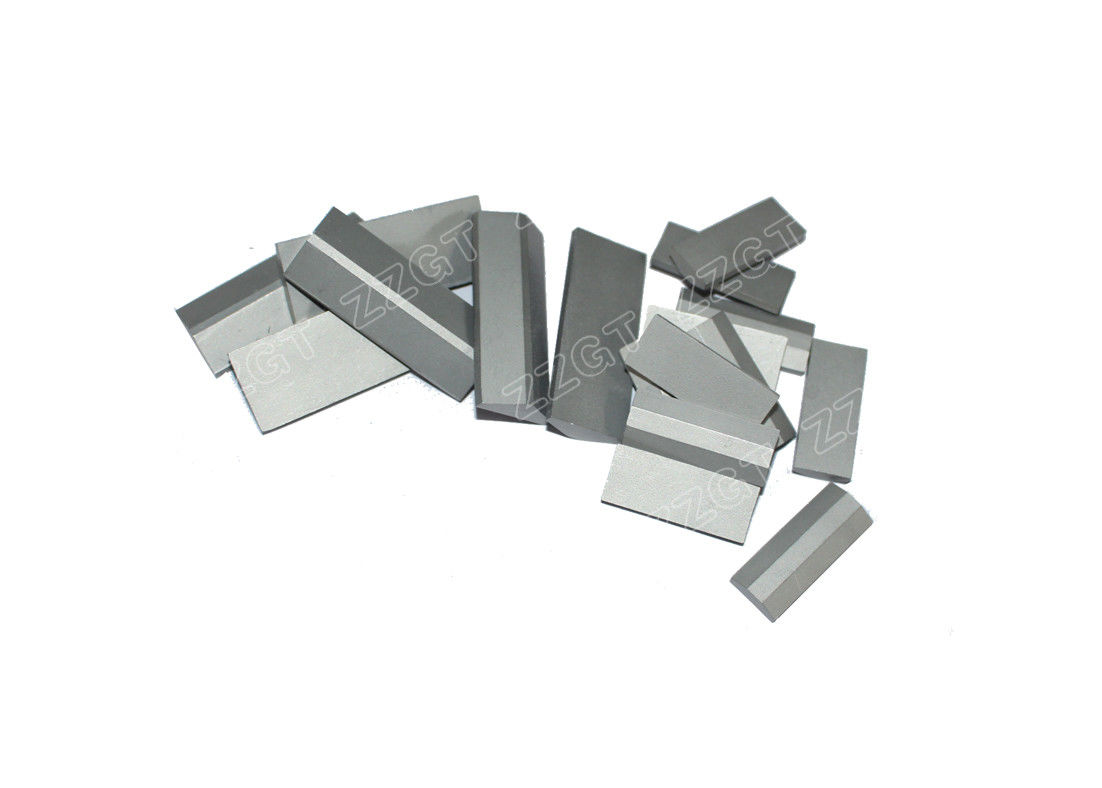

Original Yg15 Grade Custom Tungsten Carbide Teeth On Cultivators Use
Original YG15 Tungsten Carbide Teeth On Cultivators Use
About Carbide bars
With a wide variety of tillage tools and parts like field cultivators, sweeps, tines, furrowers, plow shares, moldboards, shins, chisel and subsoiler points, ripper points, oil bath bearings, hipper parts and other tillage tools, Quality Farm Supply has everything you need to break ground, without breaking the bank. Our products fit models like Allis-Chalmers, Case IH, John Deere, Krause, Rome, Sundance, Towner, Sunflower and more.
The search of increased productivity in agricultural tasks, carbide materials allow greater acreages to be worked, is increasingly more frequent, because they resist wear and do not fracture despite the heterogeneity of the soil.
So carbide wear plates are widely applied to agriculture with its good wear resistance and high heat resistance.
Product Description:
| Product Name | tungsten carbide teeth |
| Material | Hard metal |
| Size | 30x12x4.5 |
| Size Tolerance | standard blank tolerance |
| Color | Sliver grey |
| Recommend Grade | K10/K20/K30 |
| Grain Size | Middle Grain Size |
| Application | Tillage tools |
| Processing Treatment | HIP sintering |
| Product Features | Long life, wear resistance |
| Certification | ISO9001-2015 |
Grade Performance
| Tungsten Carbide Cold Forging/heading Dies | |||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended | |
| g/cm³ | MPa | HRA | |||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
| YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. | |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. | |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. | |
| GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. | |
More Details:
Factory Equipments:
There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd
* HIP sintering furnace
* Spraying Draying system
* 200T TPA acutomatic press machine
* CNC Grinder
* Spark Erosion machine
* Wire cutting machine,etc
