K20 Tungsten Carbide Bush / Tungsten Carbide Sleeve Hard Metal Bushings
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | ZZGT Li |
| Certification: | ISO9001:2015 |
| Model Number: | OD80XID61x65 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Samples are accepted |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Paper box , Wooden Carton or Customized accepted |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 400T/year |
|
Detail Information |
|||
| Grade: | YG12 | Material: | Tungsten Carbide With Cobalt |
|---|---|---|---|
| ISO: | K30 | Surface Finish: | Ra0.8 |
| Size: | Φ12.1x17 | Application: | Pump |
| High Light: | tungsten carbide material products,cemented tungsten carbide products |
||
Product Description

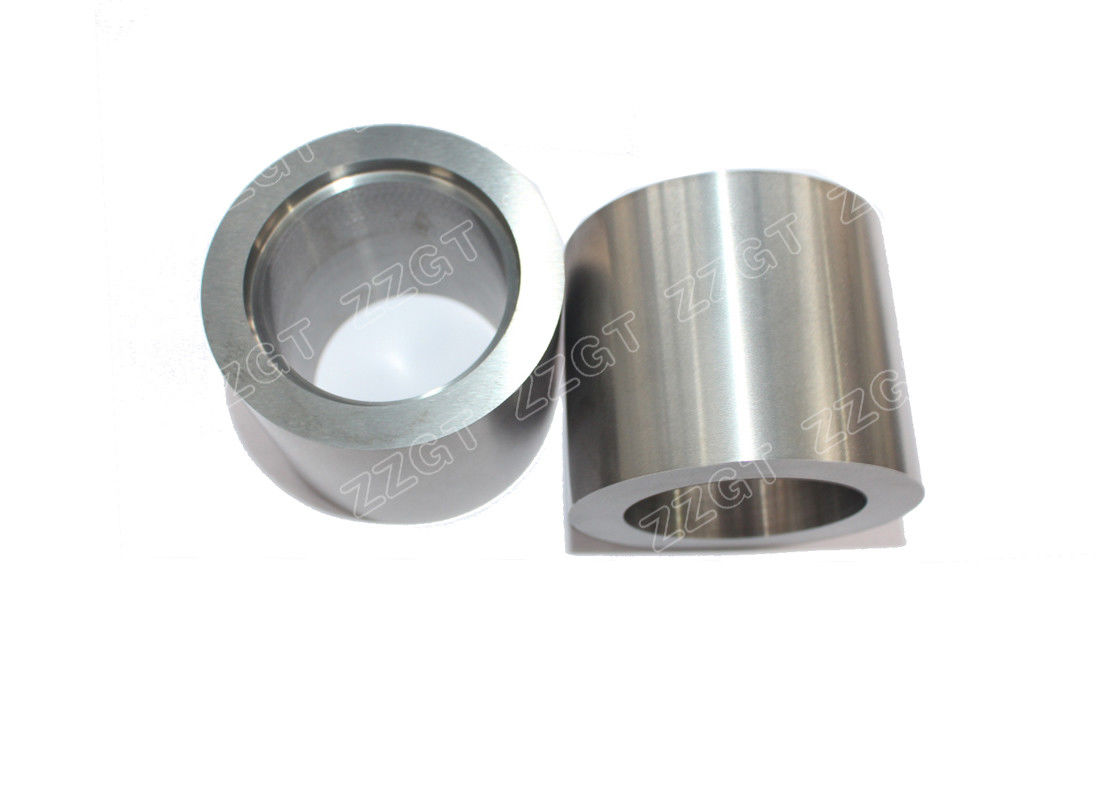

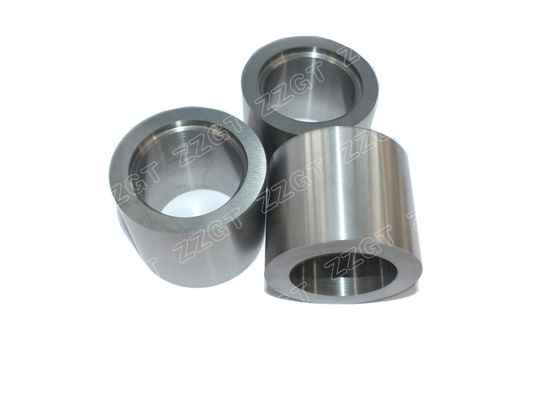

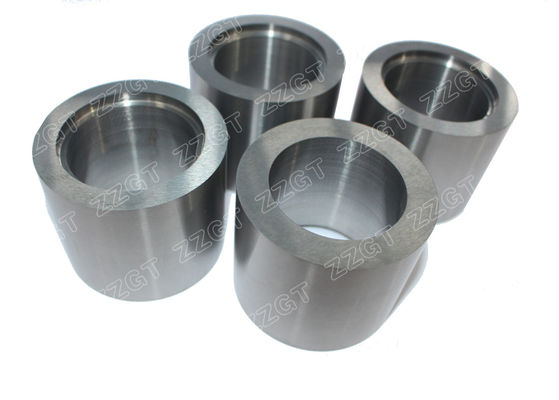

K20 Tungsten Carbide Bush / Tungsten Carbide Sleeve Hard Metal Bushings
K20 tungsten carbide bush, sleeve,Hard Metal Bushings
About Us:
Our wide range of tungsten carbide products is manufactured to China specifications and conforms to ISO 9001 systems and procedures.
We are equipped with the latest equipment and machines such as Machine-shop-with CNC and Special-Purpose Lathes, Milling Machines, Drilling Machines, Cylindrical Grinders, Assembly and Fabrication Shop and elaborate Quality testing department as per international standards to manufacture high precision oilfield equipment.
Our Company Mission Statement is "WORLD CLASS QUALITY AND SERVICES AT UNMATCHED PRICES"
Product Description:
| Product Name | tungsten carbide bushes |
| Material | tungsten carbide |
| Size | Φ80xΦ61x65 |
| Size Tolerance | Ground |
| Color | Sliver grey |
| Recommend Grade | K40 |
| Grain Size | Middle Grain Size |
| Application | wear parts for water well |
| Processing Treatment | HIP sintering |
| Product Features | Long life, wear resistance |
| Certification | ISO9001-2015 |
Grade Performance
| Tungsten Carbide Cold Forging/heading Dies | |||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended | |
| g/cm³ | MPa | HRA | |||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
| YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. | |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. | |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. | |
| GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. | |
More Details:
Factory Equipments:
There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd
* HIP sintering furnace
* Spraying Draying system
* 200T TPA acutomatic press machine
* CNC Grinder
* Spark Erosion machine
* Wire cutting machine,etc
