YG6X Grades Custom Tungsten Carbide Nozzle With Highly Wear Resistance
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | ZZGT Li |
| Certification: | ISO9001:2015 |
| Model Number: | Diameter 15x1.7x16 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Samples are accepted |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Paper box , Wooden Carton or Customized accepted |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 400T/year |
|
Detail Information |
|||
| Material: | Tungsten Carbide With Cobalt Binder | ISO: | K10 |
|---|---|---|---|
| Surface: | Ra0.8 | Application: | For Cutting |
| Service: | 24hours | OEM: | Accepted |
| High Light: | tungsten carbide alloy products,cemented tungsten carbide products |
||
Product Description

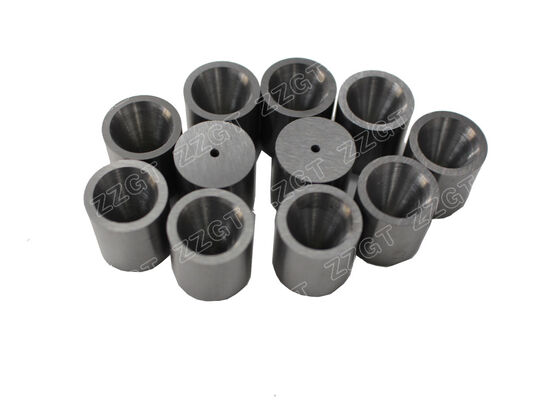

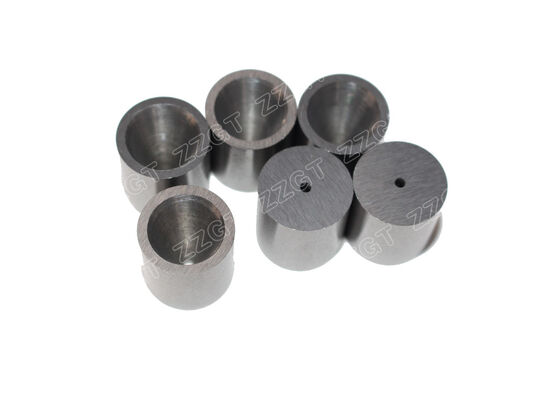

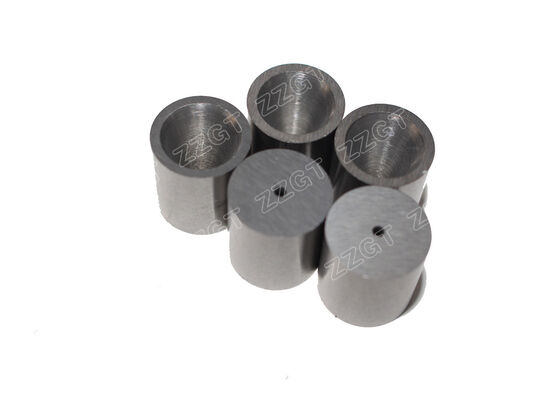

YG6X Grades Tungsten Carbide Nozzles with high wear resistance
About Us:
Zhuzhou Gingte was incepted in 20111 by Old Mr Shu. And now it being carry forwarded under the Guidance and Supervision of Mr Shu.
Focused on supplying high quality engineering contract services directly to companies in production cold forming and tool .Tungsten carbide preforms in virtually any desired hardness or density. We also offer mixed binder and nickel-binder grades that have corrosion resistance, non-magnetic properties and high levels of wear strength advantages. Hundreds of companies globally have trusted us to produce the parts that keep them operating.
Grade Performance
| Tungsten Carbide Cold Forging/heading Dies | |||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended | |
| g/cm³ | MPa | HRA | |||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
| YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. | |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. | |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. | |
| GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. | |
More Details:
Factory Equipments:
There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd
*HIP sintering furnace
*Spraying Draying system
*200T TPA acutomatic press machine
*CNC Grinder
*Spark Erosion machine
*Wire cutting machine,etc
