• ISO YG8 Custom Tungsten Carbide Shaft Sleeve Bushing For Oil Drill Pipe
  • ISO YG8 Custom Tungsten Carbide Shaft Sleeve Bushing For Oil Drill Pipe
  • ISO YG8 Custom Tungsten Carbide Shaft Sleeve Bushing For Oil Drill Pipe
ISO YG8 Custom Tungsten Carbide Shaft Sleeve Bushing For Oil Drill Pipe

ISO YG8 Custom Tungsten Carbide Shaft Sleeve Bushing For Oil Drill Pipe

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: ZZGT Li
Certification: ISO9001:2015
Model Number: Φ40xΦ28x30

Payment & Shipping Terms:

Minimum Order Quantity: Samples are accepted
Price: Negotiable
Packaging Details: Paper box , Wooden Carton or Customized accepted
Delivery Time: 7-15days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 400T/year
Get Best Price Contact Now

Detail Information

Product Name: T Type Sleeve Material: 100% Raw Tungsten Carbide
Condition: Brand New Finished: Supported
Grade: YG8 Application: Oil Pump
High Light:

tungsten carbide material products

,

cemented tungsten carbide products

Product Description

ISO YG8 Custom Tungsten Carbide Shaft Sleeve Bushing For Oil Drill Pipe



YG8 Manufacturer Tungsten Carbide shaft sleeve bushing for oil drill pipe



Some Details of Tungsten Carbide Bush for Reference

1. Material: high virgin raw material with submicron and average grain size.
2. Grades: various for choice: YG6, YG8, YN6, YN8 and so on.
3. Physical performance: high hardness and impact toughness, very good mechanical & chemical stability.
4. Standard and non-standard sizes are available for us.And the grades could be chose as actual application.







Grade Performance

Tungsten Carbide Cold Forging/heading Dies
Grades Density T.R.S Hardness Performance & application recommended
g/cm³ MPa HRA
YG11 14.4 ≥3000 88.5 Forming or stamping dies for metal powders and nonmetal powders.
YG15 14 ≥3400 87.5 For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress.
YG20 13.5 ≥3800 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG15C 14 ≥4000 86.5 For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood.
YG16C 13.9 ≥3500 85.5 Impact resistance forging dies.
YG18C 13.7 ≥3600 84.5 Impact resistance forging dies, hot-press forging dies and rollers.
YG20C 13.5 ≥3800 83.5 Dies for wear resistant or impact resistant application.
YG22C 13.3 ≥4000 83 Nut forming dies and high impact resistance forging dies.
GT55 13.1 ≥4250 82.5 Stainless bolt header dies and rollers.







More Details:

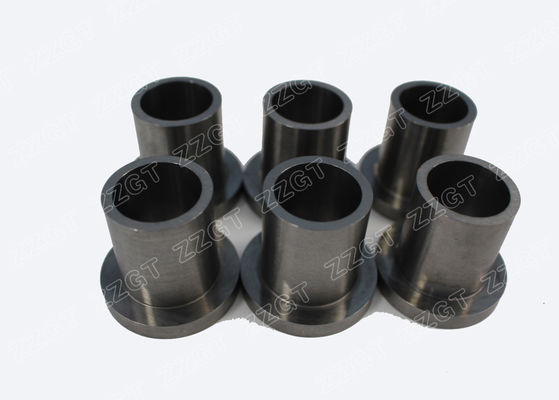

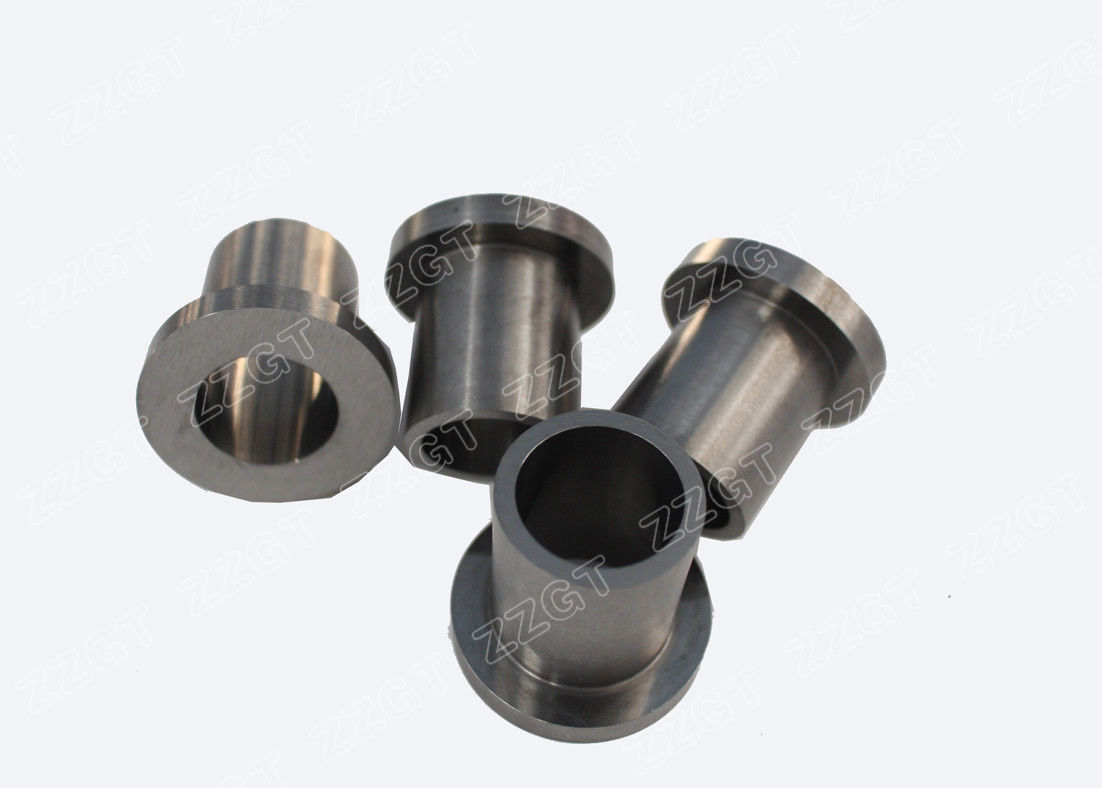

ISO YG8 Custom Tungsten Carbide Shaft Sleeve Bushing For Oil Drill Pipe 0





Factory Equipments:



There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd

*HIP sintering furnace

*Spraying Draying system

*200T TPA acutomatic press machine

*CNC Grinder

*Spark Erosion machine

*Wire cutting machine,etc

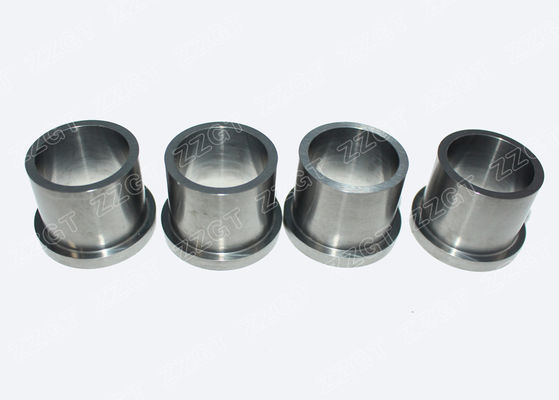

ISO YG8 Custom Tungsten Carbide Shaft Sleeve Bushing For Oil Drill Pipe 1



Contacts:



For further question, pls contact our sales engineer

Name:Daisy Tian

E-mail: zzgt3@gtcarbide.com

Want to Know more details about this product
I am interested in ISO YG8 Custom Tungsten Carbide Shaft Sleeve Bushing For Oil Drill Pipe could you send me more details such as type, size, quantity, material, etc.
Thanks!
Waiting for your reply.
