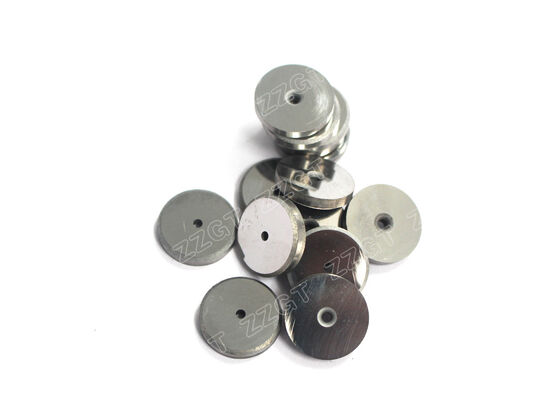

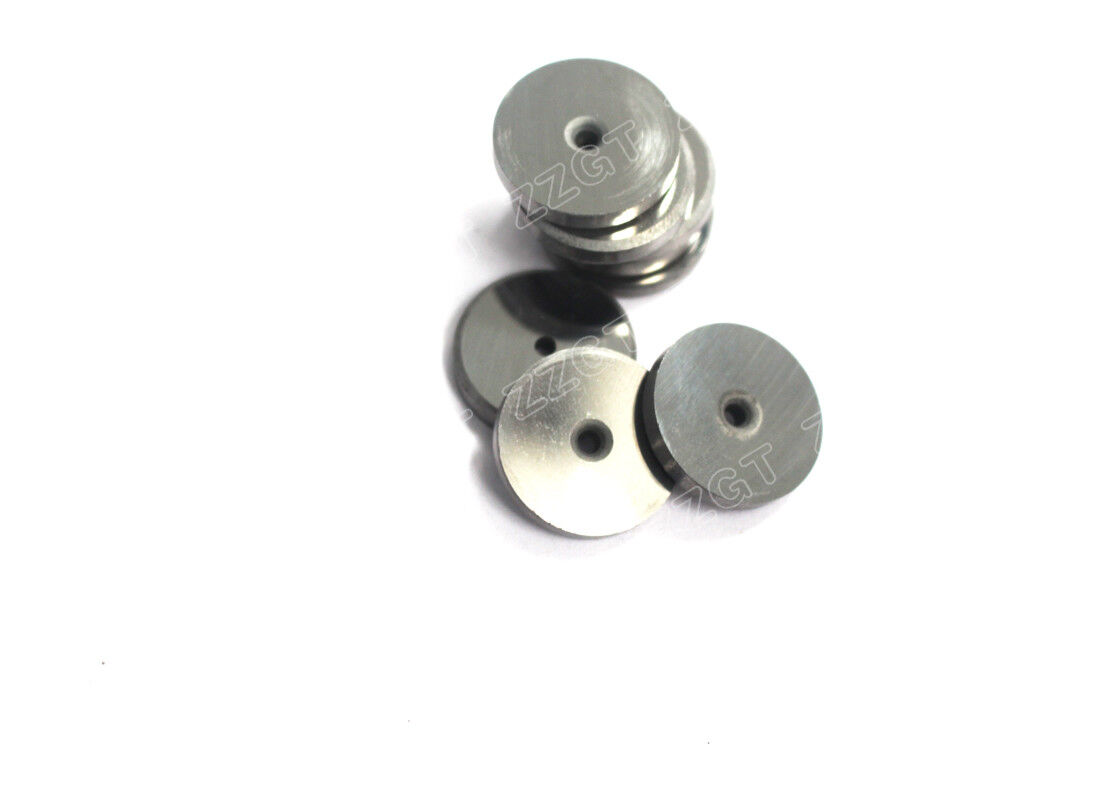

YG8 TC Cemented Carbide Orifice Disc Tungsten Carbide Products For Spray Dry Nozzle
Product Details:
| Place of Origin: | ZhuZhu , Hunan , China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | YG8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10KGS |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard ecport packing ,or per customer needs |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Quality: | HIP Sintering High Hardness And Wear Resistance | Size: | Various Size And Grade For Choose |
|---|---|---|---|
| Service: | 24-hour Online After-sale Service | Material: | 100% Virgin Tungsten And Cobalt |
| Grade: | Can Design The Best Grade According To Its Applications | Shipments: | Fast Delivery In 7 To 15 Days |
| High Light: | tungsten carbide material products,tungsten carbide tools |
||
Product Description
YG8 TC Cemented Carbide Orifice Disc Tungsten Carbide Products For Spray Dry Nozzle
Wear resistance YG8 TC cemented carbide orifice disc for spray nozzle
Introduction:
Spray Dry Nozzles - The spray dry process performs the action of separating water or another liquid from a solution, an emulsion or a suspension, for the purpose of obtaining the solid part of the feed fluid under the form of powder. This is obtained by spraying the liquid product into a tower, where it is atomised into drops and put in contact with a stream of hot air. By heating by thermal convection, the liquid part of each droplet evaporates, leaving the solid residue from the droplet to fall to the bottom of the tower as a powder grain.
Zhuzhou Gingte Cemented Carbide Company supplies some parts of components for spray Day nozzle, including tungsten carbide orifice, end-plate and tungsten carbide swirl chamber which has high wear resistance,long service life using tungsten carbide material special property.
Advantages:
- Material :contains 100% virgin tungsten and cobalt wit submicon grain size
- Quality: long life with super resistance to heat , wear and abrasion
- Technology: can provide the characteristic custom-made
- Grade: can design the best grade according to its applications
- Price: Fast delivery time and excellent cost performance
- packaging: convenient packaging with standard export packing or according the needs of customet's
- shipping terms: FOB CIF C&F Etc by sea or air
- Equipment: Over ten thousand sets of existing non-standard shaped mold
| Product Name | Tungsten carbide orifice |
| Material | cemented carbide |
| Size | OD19, ID various types and thickness 3.3 or as request |
| Size Tolerance | Free tolerance or as customer's request |
| Color | As picture |
| Recommend Grade | YG8 etc |
| Grain Size | Medium Grain |
| Application | Produced according to the customer's use |
| Processing Treatment | Clean ground and polished or as customer request. |
| Product Features | Long life,good versatility,good wear resistance. |
| Certification | ISO9001 |
Grade Performances:
| Grade | ISO Grade | Density | Hardness | T.R.S | Application |
| g/cm3 | HRA | N/mm² | |||
| JT3 | K01 | 15.0 | 91.0 | 1400 | Qualified for fine turning and half fine turning when cast iron,nonferrous metal ,alloys as well as non alloy materials cutting consecutively,Also qualified for sand -blasting nozzles. |
| JT6 | K20 | 14.9 | 90.0 | 2150 | For the cast iron ,nonferrous metal, alloy and unalloyed materials, electric drill for geology use and steel drill ,also process hard wood ,original wood ,aluminum section section bar, brass rod. |
| JT8 | K30 | 14.7 | 89.5 | 2320 | For machine manufacture ,processing blades and wearing parts,rough machineing of cast iron , nonferrous metal ,nonmetal materials at low cutting speed ,also used for hard wood , graphite ,grass. |
| JT11 | K40 | 14.4 | 88.5 | 2420 | Forming or stamping dies for metal powders and nonmetal powders. |
| JT15 | K40 | 14.0 | 87.5 | 2500 | For punching, stamping,forging tools under large stress,fabricating drawing dies of steel tubes and rods under high compressibility ratio,Powder metallurgy mouldenpress mould core,Cut very hard rock formations. |
| JT20 | 13.5 | 85.5 | 2800 | High bending strength ,used for step dies and other stamping dies ,as for watch parts, battery jars ,small screw caps etc. |
Size Chart :
| Sr No. | Size(mm) | ||
| OD | ID | Thickness | |
| 1 | 19 | 1 | 3.3~3.6 |
| 2 | 19 | 1.6 | |
| 3 | 19 | 1.8 | |
| 4 | 19 | 2 | |
| 5 | 19 | 2.2 | |
| 6 | 19 | 2.3 | |
| 7 | 19 | 2.4 | |
| 8 | 19 | 2.5 | |
| 9 | 19 | 2.6 | |
| 10 | 19 | 2.8 | |
| 11 | 19 | 3 | |
| 12 | 19 | 3.5 | |
| ………… | |||
For any other sizes we are able to custom-made according to clients’ requirements or drawings.
Packing Process:
Factory Equipment
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Contact:
For further question, pls contact our sales engineer
Daisy Tian
Mobile:+8618673329570
