4mm Thickness Tungsten Carbide Swirl Chamber High Pressure Type for Spraying
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | various sizes for options |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30KGs |
|---|---|
| Price: | negotiable |
| Packaging Details: | First paper packing each piece then pack into paper boxes,next use exported cartons or wooden cases,or packed as customers'requirement. |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Material: | Cemented Carbide | Applications: | Liquid Chemical |
|---|---|---|---|
| Purpose: | Spray Nozzles | Chemical Composition: | WC+Cobalt |
| Surface: | Surface Grinded | Shipping Terms: | FOB,CIF,C&F Etc By Sea Or By Air |
| Finish: | 0.8 | Stock: | Avaialble |
| High Light: | spray dryer nozzle,tungsten carbide tools |
||
Product Description

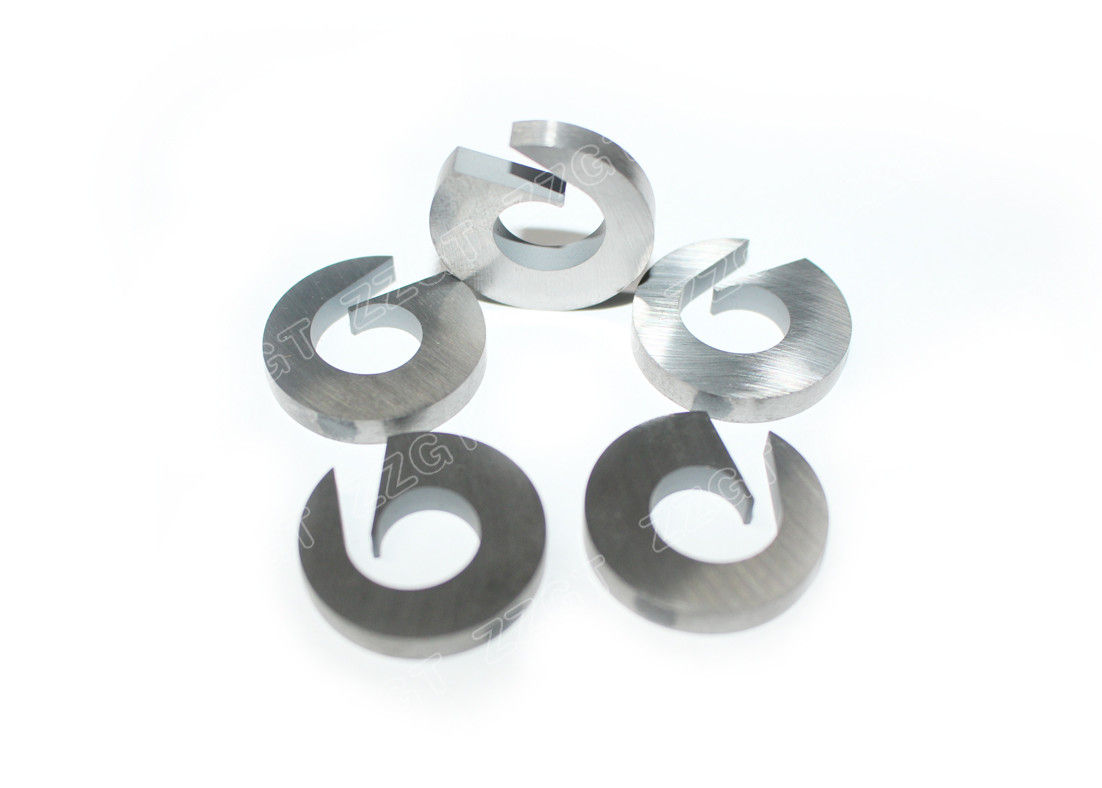

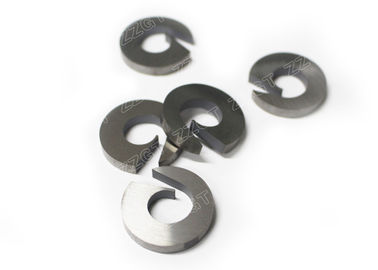

4mm Thickness Tungsten Carbide Swirl Chamber High Pressure Type for Spraying
Product Descriptions :
This kind of tungsten carbide Swirl Chamber is manufactured with great accuracy maintained, to spray the liquid perfectly in spray dryer.
The hardness reached over HRA90 degree while the anti-bending degree reached over 2300N/mm. On machining tungsten carbide spray nozzle, we do the precision grinding and surface treatment to achieve Ra0.1 of the surface. There is a scientific curvature radius design in the both entrance.
Product Advantages:
1.Type, size and service life identical to original
2.No difference in your drying process using our nozzles
3.Highest grades of raw material tungsten carbide
4.Delivery from stock at competitive prices
5.Available in very extensive range of thickness size
6.Its long-lasting quality makes it cost-effective.
7.It helps reduce cost of spray dryer maintenance.
| Product Name | Tungsten Carbide Swirl Chamber |
| Material | tungsten carbide |
| Size | φ25*4 |
| Size Tolerance | OD: +0.1~-0.2 Thickness: 0~+0.3 |
| Color | gray |
| Recommend Grade | YG8 ( 89.5HRA ) |
| Grain Size | Medium |
| Application | Spraying Nozzle |
| Processing Treatment | grinded in the two faces |
| Product Features | Long Life, Durability,Wear resistance,Premium quality |
| Certification | ISO9001 |
Available Sizes:
TC Swirl Chamber
| Sr No. | Size(mm) | |
| OD | Thickness | |
| 1 | 25 | 3 |
| 2 | 25 | 4 |
| 3 | 25 | 6 |
| 4 | 25 | 7 |
| 5 | 25 | 8 |
| 6 | 25 | 10 |
| ………… | ||
For any other sizes we are able to custom-made according to clients’ requirements or drawings.
Product Display and Applications :
This Tungsten carbide Swirl Chamber are widely used for ceramic industries, chemical industries, pharmaceuticals industries etc.
Packing Process:
Packing Details : In cartons,wooden boxes,plastic boxes or customized.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How can i place an order ?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
Q: What is your terms of delivery ?
A: We accept EXW, FOB, C&F, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Contact us at your free time when you are interested in our products : )
