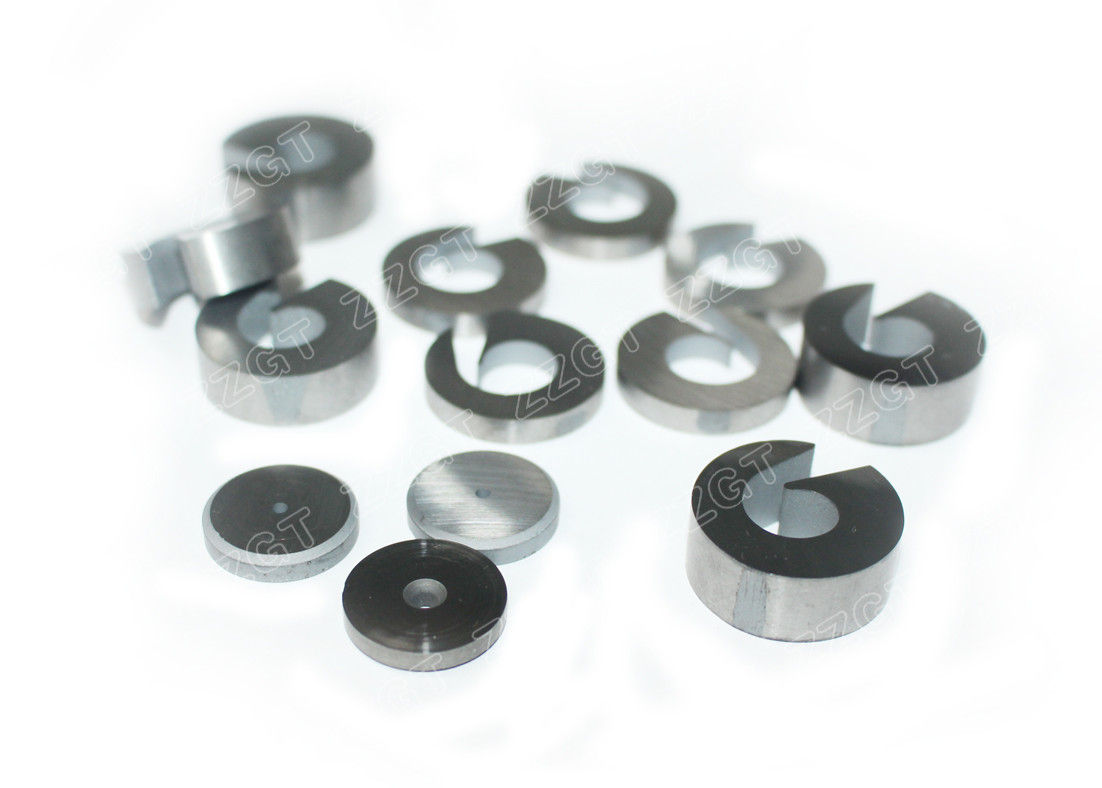

Cemented Carbide Spray Drying Nozzles with High Hardness Different Shape Nozzles
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | various sizes for options |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10KGs |
|---|---|
| Price: | negotiable |
| Packaging Details: | First paper packing each piece then pack into paper boxes,next use exported cartons or wooden cases,or packed as customers'requirement. |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Material: | Cemented Carbide | Applications: | Chemical Industries |
|---|---|---|---|
| Purpose: | Spray Drying | Chemical Composition: | WC+Cobalt |
| Surface: | Surface Grinded | Shipping Terms: | FOB,CIF,C&F Etc By Sea Or By Air |
| Finish: | 0.8 | ||
| Highlight: | spray dryer nozzle,tungsten carbide tools |
||
Product Description
Cemented Carbide Spray Drying Nozzles with High Hardness Different Shape Nozzles
Product Descriptions :
In ceramic tile manufacturing, the spray-drying stage relies on high-pressure nozzles to atomize slip into uniform granules. The slip itself is an abrasive slurry containing silica, alumina, and clay particles, whose hardness and angularity cause severe erosive wear on conventional steel nozzles. Under continuous operation, these steel components typically degrade within just a few days, leading to widening orifices, distorted spray patterns, and inconsistent granule size distribution.
Tungsten carbide (TC) inserts address this problem directly. By replacing the wear-prone steel contact surfaces with a much harder, erosion-resistant material, TC inserts extend nozzle service life from days to several months. This longevity translates into a stable spray angle and consistent granule morphology throughout the production run, which in turn ensures uniform density and moisture content in the tile body. As a result, pressing behavior becomes more predictable — reducing defects such as cracking, delamination, and dimensional variation — while also cutting downtime, replacement costs, and scrap rates associated with frequent nozzle changes.
Product Features:
1.Wear resistant
2.Long life
3.Durable
4.Accurate dimensions
5.High Hardness
6.Various size can offer or according to customer's size
| Product Name | Cemented Carbide Spray Drying Nozzles |
| Material | cemented carbide |
| Size | φ25*10, φ19*φ2.5*3.3 etc. |
| Size Tolerance | OD: 0~-0.15 Thickness: 0~+0.3 |
| Color | gray |
| Recommend Grade | YG8 ( 89.5HRA ) |
| Grain Size | Medium |
| Application | Spraying Nozzle |
| Processing Treatment | grinded in the two faces |
| Product Features | Long Life, Durability,Wear resistance,Premium quality |
| Certification | ISO9001 |
Available Sizes:
Tungsten Carbide Orifice
| Sr No. | Size(mm) | ||
| OD | ID | Thickness | |
| 1 | 19 | 1 | 3.3~3.6 |
| 2 | 19 | 1.6 | |
| 3 | 19 | 1.8 | |
| 4 | 19 | 2 | |
| 5 | 19 | 2.2 | |
| 6 | 19 | 2.4 | |
| 7 | 19 | 2.5 | |
| 8 | 19 | 2.6 | |
| 9 | 19 | 2.8 | |
| 10 | 19 | 3 | |
| ………… | |||
TC Swirl Chamber
| Sr No. | Size(mm) | |
| OD | Thickness | |
| 1 | 25 | 3 |
| 2 | 25 | 4 |
| 3 | 25 | 6 |
| 4 | 25 | 7 |
| 5 | 25 | 8 |
| 6 | 25 | 10 |
| ………… | ||
For any other sizes we are able to custom-made according to clients’ requirements or drawings.
Product Display and Applications :
Tungsten carbide (TC) nozzles — or nozzles with TC inserts — are used wherever an abrasive slurry, suspension, or particulate-laden fluid must be sprayed under pressure. Beyond ceramic tile manufacturing, common industries include:
1. Mining & Mineral Processing
2. Coal Preparation
3. Power Generation (Flue Gas Desulfurization)
4. Construction & Shotcrete
5.Agriculture & Fertilizer
6.Water & Wastewater Treatment
7.Refractory & Foundry
8.Gypsum & Plasterboard Production
Packing Process:
Packing Details : In cartons,wooden boxes,plastic boxes or customized.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How can i place an order ?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
Q: What is your terms of delivery ?
A: We accept EXW, FOB, C&F, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Contact us at your free time when you are interested in our products : )
