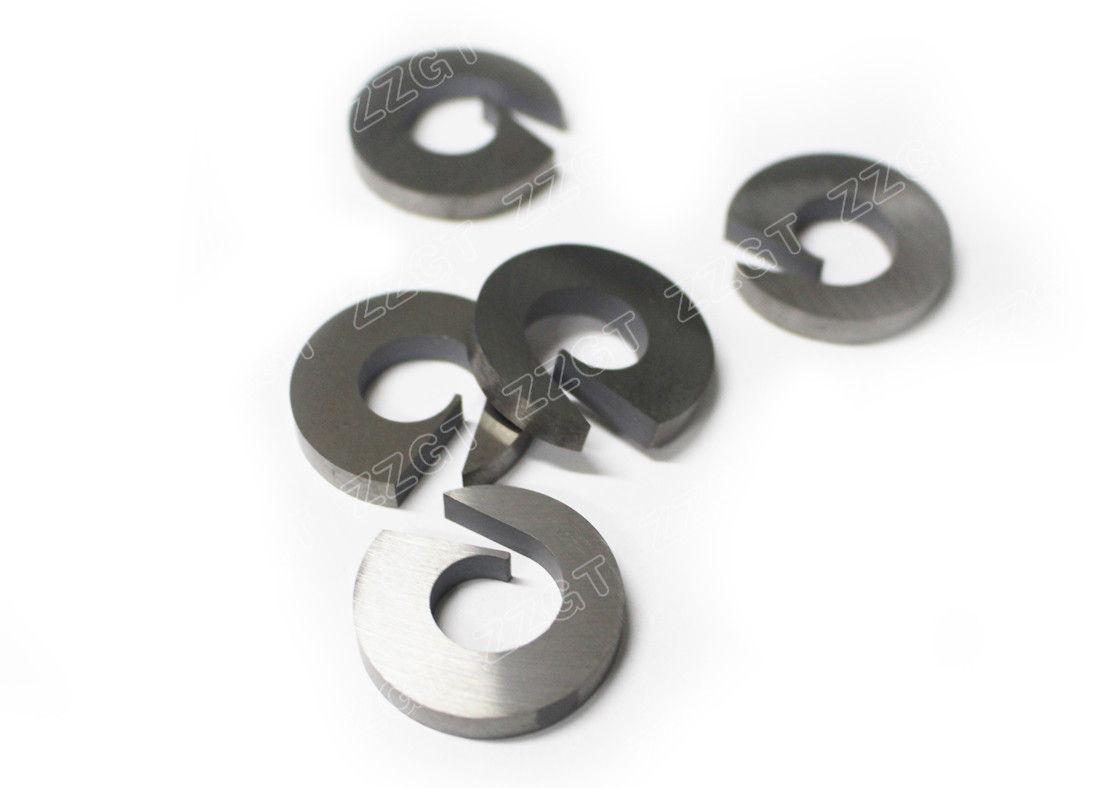

YG8 Tungsten Carbide Swirl chamber without End Plate 25*4mm Nozzle

Product Descriptions :

In ceramic tile production, the spray-drying stage relies on high-pressure nozzles to atomize slip into uniform granules. The slip itself is an abrasive slurry containing silica, alumina, and clay particles, whose hardness and angularity cause severe erosive wear on conventional steel nozzles. Under continuous operation, these steel components typically degrade within just a few days, leading to widening orifices, distorted spray patterns, and inconsistent granule size distribution.

Cemented carbide inserts tackle this problem directly. By replacing the wear-prone steel contact surfaces with a much harder, erosion-resistant material, these sintered hard-metal components extend nozzle service life from days to several months. This longevity translates into a stable spray angle and consistent granule morphology throughout the production run, which in turn ensures uniform density and moisture content in the tile body. Consequently, pressing behavior becomes more predictable — reducing defects such as cracking, delamination, and dimensional variation — while also drastically reducing the need for frequent nozzle replacements and their associated costs

Product Features:

1.Wear resistant

2.Able to withstand pressure

3.Dimensionally accurate

4.Available in very broad range of designs and thicknesses

Available Sizes:

For any other sizes we are able to custom-made according to clients’ requirements or drawings.

Product Display and Applications :

cemented carbide effectively resists the abrasive wear caused by silica-aluminate particles. In the application of 3-way swirl chambers, this wear-resistant advantage is further amplified. Because the 3-way design ensures a more uniform fluid distribution, it avoids the localized high-speed erosion commonly seen in single-channel nozzles (where fluid tends to concentrate and cut on one side of the channel). This uniform stress and wear distribution ensure that the internal geometric dimensions and spiral angles of the swirl core barely deform over a service life of several months. This means that whether it is the first day or the last day of service, the atomization effect and spray pattern remain highly consistent, completely resolving the industry pain point of "product quality fluctuations between the early and late stages" caused by traditional nozzle wear.

In summary, cemented carbide 3-way swirl chambers not only extend the physical lifespan of nozzles but also achieve a qualitative leap in spray quality by optimizing the flow field structure. They allow ceramic tile production to effortlessly handle complex and variable slip conditions while pursuing maximum capacity, serving as the unsung heroes behind modern ceramic manufacturing's pursuit of high quality, low energy consumption, and continuous production.

Packing Process:

Packing Details : In cartons,wooden boxes,plastic boxes or customized.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How can i place an order ?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.

Q: What is your terms of delivery ?
A: We accept EXW, FOB, C&F, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.

Q: How long is your delivery time ?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Contact us at your free time when you are interested in our products : )
