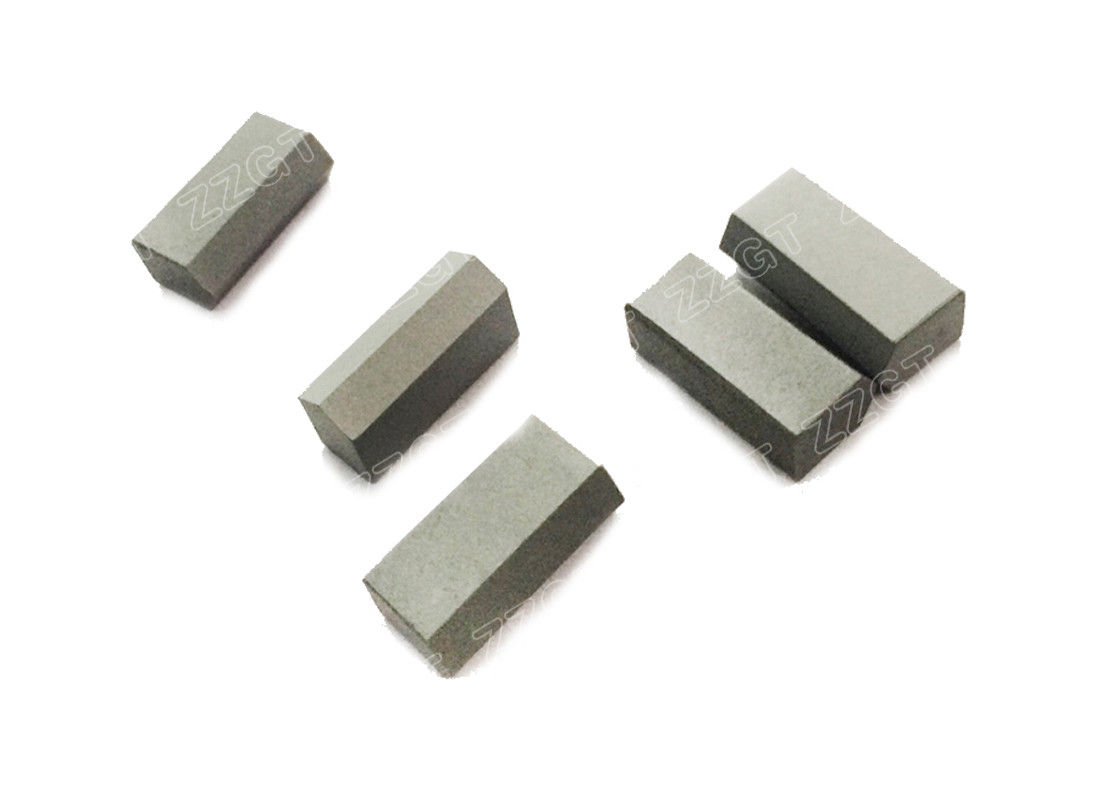

YG15 Grade K034 Cemented Carbide Products Chisel Mining Tips & Inserts For Rock Drilling
Product Details:
| Place of Origin: | ZHUZHOU |
| Brand Name: | GINGTE |
| Certification: | ISO009:2015 |
| Model Number: | GK06 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30KG |
|---|---|
| Price: | negotiable |
| Packaging Details: | step 1, wrapped carbide plate in paper to avoid carbide plate be broken step 2, put the carbide plate in inner small carton box step 3, put the inner box into outer carton and fill the carton with foamed plastic step 4, wrap the carton with packaging ta |
| Delivery Time: | 10-20 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 600t per year |
|
Detail Information |
|||
| Name: | Cemented Carbide Chisel Mining Tips & Inserts | Composition: | Tungsten Carbide & Cobalt |
|---|---|---|---|
| Application: | Quarry Drilling | Color: | Sliver Grey |
| Advantage: | High Performance | Hardness: | HRC58 - HRC63 |
| Models: | K034 | Process: | Sintering |
| High Light: | tungsten carbide alloy products,tungsten carbide material products |
||
Product Description
YG15 Grade K034 Cemented Carbide Products Chisel Mining Tips & Inserts For Rock Drilling
Introduction:
carbide water well button also can used as excavating tools for Tunneling, quarrying, mining and Construction. In addition, it can be applied as drill accessories for rock drilling machine and deep hole-drilling tools.
Mineral ground tools mainly include:
Mining bits, Mining Picks, Mining cutter, Coal Mining Bits, Tunneling Bits, Road planning picks, Conical Picks, Crusher Picks, Flat picks, Surface Mining Tools, Trenching Tools, Foundation Drilling Tools, Grader Blades, Thread Button Bits, Retracted Button Bits, Shank Adapter, Drifting Drill Rod, Extension Drill Rod, MF(Male Female) Rod, Tapered Drill Rod, Integral Drill Rod, DTH Bit, DTH Hammer, DTH Drill Rod, Self-drilling Anchor Bolt, Roller Cutter Bits, TBM Cutter, Cutting Tools which are used for mining, quarrying, tunneling, water well drilling, mineral exploration, geological prospecting, civil engineering and contraction, etc.
Physical properties of grades for YG15 grade K034 shining cemented tungsten carbide chisel mining tips & inserts for rock drilling
| Grade | ISO |
Density (g/cm3) |
TRS (N/mm²) |
Hardness (HRA) |
Application |
| YG8C | K30 | 14.7 | 2200 | 88 |
Mostly used as the buttons of small and mediumsized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations. |
| YG11 | K40 | 14.3 | 2100 | 88 |
Largely for the inserts and buttons of percussion bits and tricone bits to cut medium-hard ,hard and very hard formations. |
| YG11C | K40 | 14.35 | 2200 | 87.6 |
Largely for the inserts and buttons of percussion bits and tricone bits to cut medium-hard ,hard and very hard formations. |
| YG10C | K40 | 14.45 | 2450 | 87.6 |
Primarily for the buttons and inserts of rotary percussion bits to cut medium hard and hard formations. |
| YG15 | K40 | 13.97 | 2900 | 88 |
Excellent impact and shock resistance,suitable for cemented carbide die blanks,mold core,etc. |
| YR10D | K40 | 14.5 | 2700 | 87.8 |
Coarse grain-size carbide,Suitable for road,coal mining and Construction drilling bit. |
| YN10 | 12.85 | 2800 | 86.8 |
For making precussion bits,drilling bits for medium wear resistance requirement. |
|
| YN20 | 11 | 2600 | 88 |
For making tungsten carbide glass plates for high pressure of cement reinforced concrete. |
|
| YZ10D | K40 | 14.35 | 2600 | 87.5 |
Coarse grainsize carbide,Suitable for road, coal mining and Construction drilling bit. |
Application;
Process:
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
