• Cemented Carbide Road Milling Tools YG11C Carbide 42CrMo Steel Shank Made
  • Cemented Carbide Road Milling Tools YG11C Carbide 42CrMo Steel Shank Made
Cemented Carbide Road Milling Tools YG11C Carbide 42CrMo Steel Shank Made

Cemented Carbide Road Milling Tools YG11C Carbide 42CrMo Steel Shank Made

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: Gingte Li
Certification: ISO9001:2015
Model Number: 5025-19 or others

Payment & Shipping Terms:

Minimum Order Quantity: 50KGs
Price: negotiable
Packaging Details: First paper packing each piece then pack into paper boxes or plastic box,next use exported cartons or wooden cases,or packed as customers'requirement.
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 400 tons/year
Get Best Price Contact Now

Detail Information

Material: Tungsten Carbide Surface Treatment: Grinded
Applications: Road Surface Milling Carbide Chemical Composition: WC+Cobalt
Shipping Terms: FOB,CIF,C&F Etc By Sea Or By Air Tolerance: +0.1~+0.4
Coating: Yes Sample: Available
High Light:

carbide button bits

,

tungsten carbide mining bits

Product Description

Cemented Carbide Road Milling Tools Road Milling Bits YG11C Carbide 42CrMo Steel Shank



Product Quick Detail:

1. Product Name: Tungsten Carbide Road Milling Tools

2. Material: Tungsten Carbide+Steel Shank

3. Size: 6Carbide Insert: φ30.5*30.2 ; Steel Shank: φ49.6*φ25.5*139.1

4. Size Tolerance: free tolerance or as customer's request

5. Shape: as photo

6. Recommend Grade: carbide: YG11C Steel: 42CrMo

7. Carbide Grain Size: Medium Grain

8. Applications: for Road Surface Milling and Planing

9. Sintering Treatment: HIP sintering

10. Product Features: high hardness, good wear resistance

11. Certification: ISO9001





Prodcut Descriptions :

We gingte has strong invocation power and professional modern equipment; focus on production of enginering machinery parts,and various types of rotary cutter bit,road milling planer bit,heading machine cutting teeth,coal  cutter conical cutting teeth,toothholder and shield cutter. These products are widely used in mining, metallurgy, highways,railways, tunnels, subways, water conservancy infrastructure, forestry, agriculture, mining,recycling and other fields.

This tungsten carbide road milling tools is manily for construction purpose,like road surface milling and planing,we can offer full set of carbide insert and steel shank ,they are applied to mill and plane the concrete road surface and can provide different grades for different excavation of rock formation with a good impact toughness and wear resistance.





Grade Performances:

Grade Density  T.R.S Hardness Performance & Application Recommended
g/cm3 MPα HRA
YG6 14.9 2100 90 or coring crowns,electric coal drill bits,coal cutting picks,oil cone bits and scraping knife bits, usd in geological prospecting, coal mining and oil well boring.
YG8 14.7 2400 89.5 For coring crowns, electric coal drill bits, coal cutting picks, cone drill bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring.
YG8C 14.7 2450 88.5   Mostly used as the buttons of small and mediumsized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations.
YG9C 14.6 2450 87.8 Suitable to strips, conical buttons for rotary percussion-resistant, geological prospecting buttons, cut soft and medium hard formations.
YG10C 14.4 2550 87 Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations.
YG11C 14.4 2600 87  Largely for the inserts and buttons of percussion bits and tricone bits to cut medium-hard, hard, and very hard formations.
YG13C 14.2 2650 86.5 Predominatly for the buttons of tricone bits and inserts of rotary percussion bits to cut hard and vey hard formations.
YG15C 14 2700 86.5 For oil cone drill bits, for medium soft and medium -hard rocks.
YG15 14 2500 87.5 Good strength and less wear resistance,for bits of rotary hammer rock drills and heavy rock drills, for hard and very hard rocks.





Product Display:

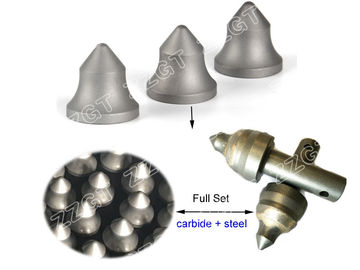

Cemented Carbide Road Milling Tools YG11C Carbide 42CrMo Steel Shank Made 0

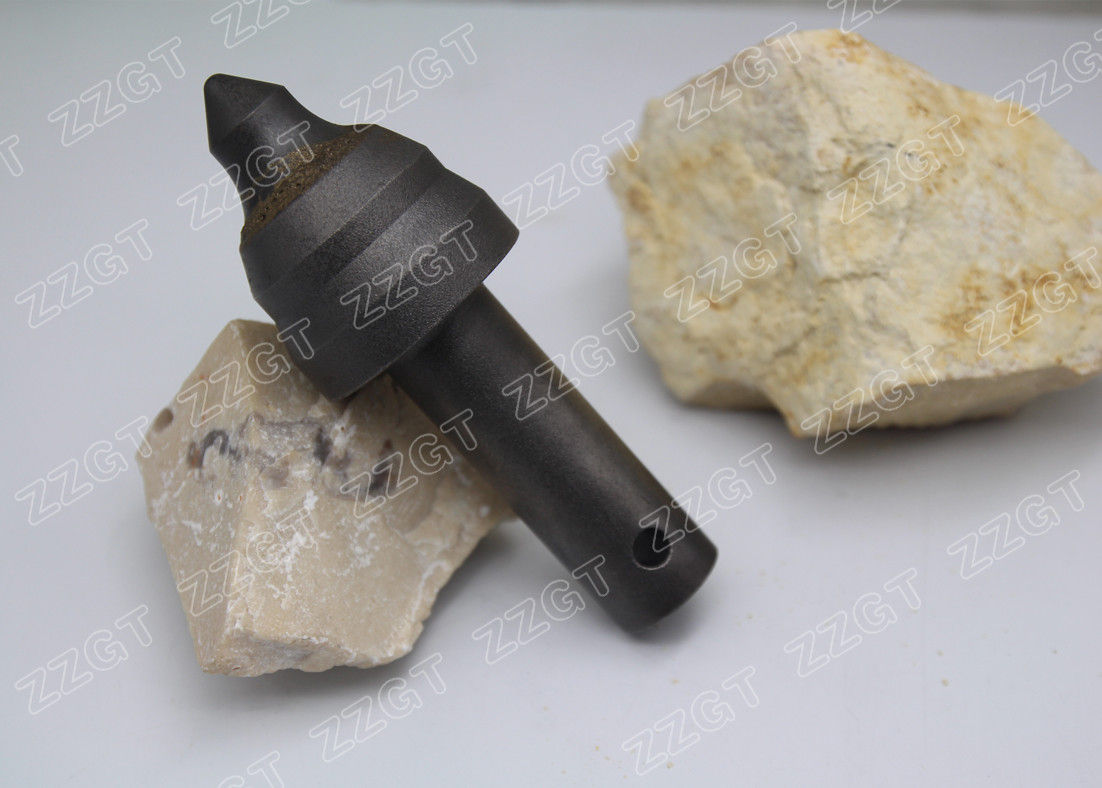

Cemented Carbide Road Milling Tools YG11C Carbide 42CrMo Steel Shank Made 1


For any other sizes we are able to custom-made according to clients’ requirements or drawings.







Packing Process:

Packing Details : In cartons,wooden boxes,plastic boxes or customized.

Cemented Carbide Road Milling Tools YG11C Carbide 42CrMo Steel Shank Made 2





FAQ



Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How can i place an order ?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.



Q: What is your terms of delivery ?
A: We accept EXW, FOB, C&F, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.



Q: How long is your delivery time ?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
