Wear Resistance Tungsten Carbide Mining Bits For Tunnel Boring
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | 46*45*28*28 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30KGs |
|---|---|
| Price: | negotiable |
| Packaging Details: | First paper packing each piece then pack into paper boxes or plastic box,next use exported cartons or wooden cases,or packed as customers'requirement. |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Material: | Cemented Carbide | Surface Treatment: | Sandblasting |
|---|---|---|---|
| Purpose: | For Tunnel Boring | Carbide Chemical Composition: | WC+Cobalt |
| Shipping Terms: | FOB,CIF,C&F Etc By Sea Or By Air | Roughness: | 3.2 |
| Sample: | Available | Hardness: | 86.5-89 HRA |
| High Light: | tungsten carbide parts,tungsten carbide mining bits |
||
Product Description

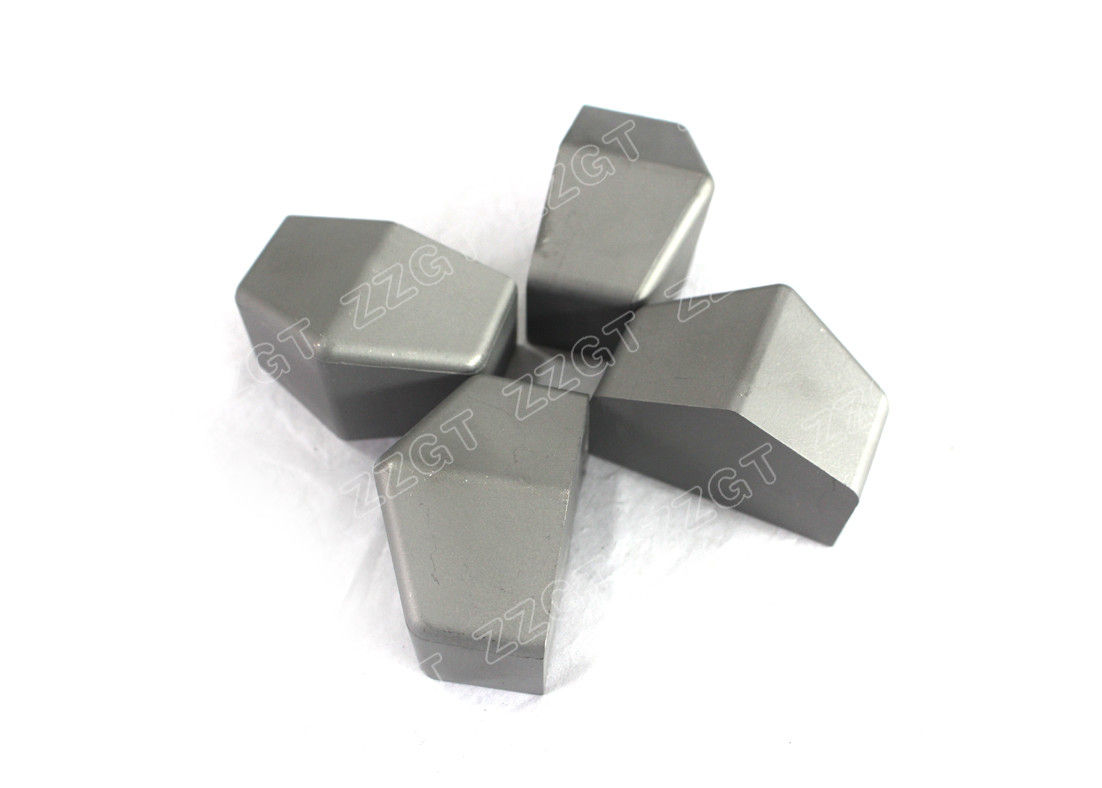

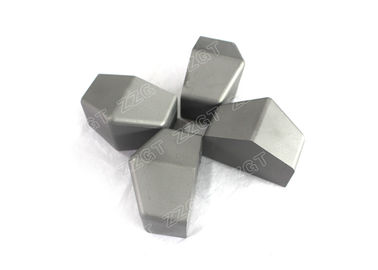

Wear Resistance Tungsten Carbide Mining Bits For Tunnel Boring
Cemented Carbide Insert for Tunnel Boring with Exllent Wear Resistance
Product Quick Detail:
1. Product Name: Cemented Carbide Insert for Tunnel Boring
2. Material: Cemented Carbide
3. Size: 46*45*28*28 or as customer's size
4. Size Tolerance: standard tolerance or as customer's request
5. Shape: different shape available
6. Recommend Grade: YG9C YG11C etc
7. Grain Size: Coarse Grain
8. Applications: insert for Tunnel Boring
9. Sintering Treatment: HIP sintering
10. Can design the best grade according to its applications
11. Business partners all over Japan,South Korea,Russia etc
12. Certification: ISO9001
Prodcut Descriptions :
This Cemented Carbide Insert are very advanced underground tunnel construction equipments, it does not affect the ground condition under the conditions of operation, thus greatly improve the feasibility of the construction and reduce the cost.
Grade Performances:
| Grade | Density | T.R.S | Hardness | Performance & Application Recommended |
| g/cm3 | MPα | HRA | ||
| YG8C | 14.7 | 2450 | 88.5 | Mostly used as the buttons of small and mediumsized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations. |
| YG9C | 14.6 | 2450 | 87.8 | Suitable for super hard rock formation with excellent wear resistance. |
| YG10C | 14.4 | 2550 | 87 | Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations. |
| YG11C | 14.4 | 2600 | 87 | Suitable for soft, medium and hard rock formations, with high toughness. |
| YG13C | 14.2 | 2650 | 86.5 | Predominatly for the buttons of tricone bits and inserts of rotary percussion bits to cut hard and vey hard formations. |
| YG15C | 14 | 2700 | 86.5 | For oil cone drill bits, for medium soft and medium -hard rocks. |
Sizes:
45*45*28*28 or others.
For any other sizes we are able to custom-made according to clients’ requirements or drawings.
Product and Application Display:
Quality assurance:
-
Every production process has a special person to test to ensure quality
-
Have professional engineers to check the quality
-
All products are under strict quality system management based on ISO9001:2008
Packing Process:
Packing Details : In cartons,wooden boxes,plastic boxes or customized.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How can i place an order ?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
Q: What is your terms of delivery ?
A: We accept EXW, FOB, C&F, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Contact us at your free time when you are interested in our products : )
