High Hardness Tungsten Carbide Alloy Welded Parts Wear Resistance For Valve Core

High Hardness Tungsten Carbide Alloy Welded Parts Wear Resistance For Valve Core

Product Details:

Place of Origin: ZhuZhu , Hunan , China
Brand Name: Gingte Li
Certification: ISO9001:2015
Model Number: YG8

Payment & Shipping Terms:

Minimum Order Quantity: 10KGs
Price: negotiable
Packaging Details: Standard ecport packing ,or per customer needs
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 400 tons/year
Get Best Price Contact Now

Detail Information

Quality: HIP Sintering High Hardness And Wear Resistance Technology: Advanced Technology , Automatic Pressing, Precis On Grinding
Service: 24-hour Online After-sale Service Material: 100% Virgin Tungsten And Cobalt
Grade: Can Design The Best Grade According To Its Applications Shipments: Fast Delivery In 7 To 15 Days
High Light:

tungsten carbide alloy products

,

cemented tungsten carbide products

Product Description

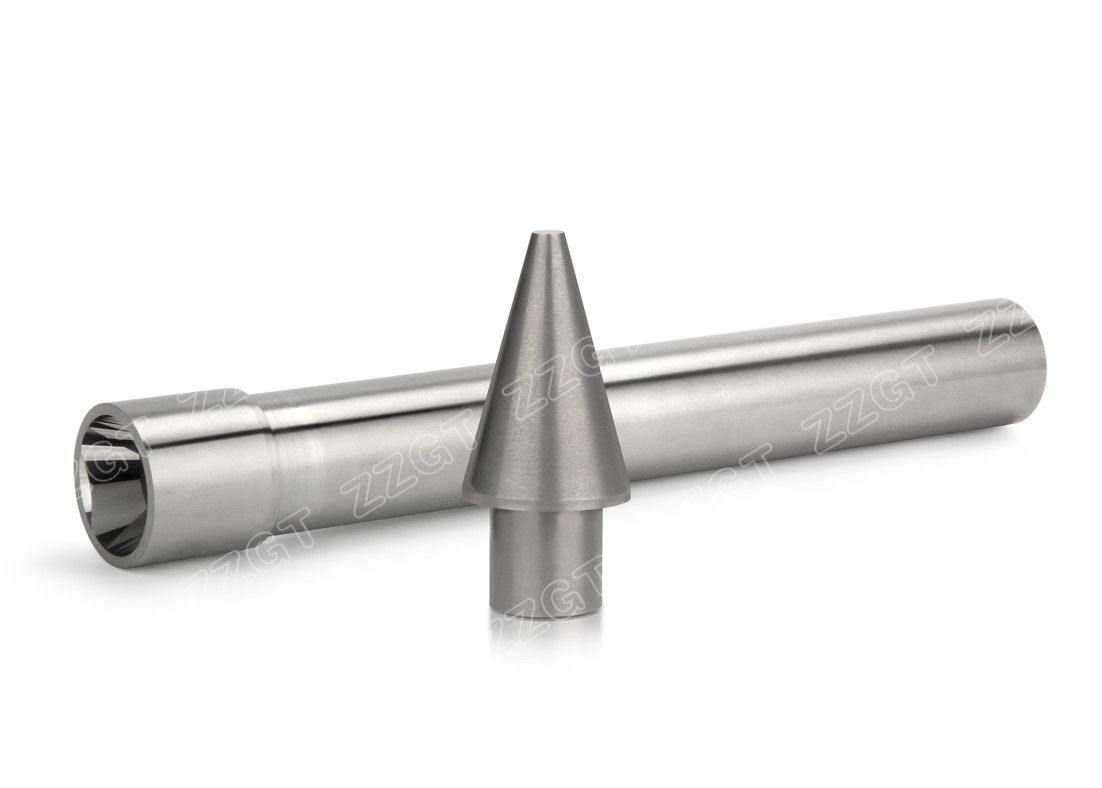

High Hardness Tungsten Carbide Alloy Welded Parts Wear Resistance For Valve Core





Tungsten carbide welded part YG8 non-standard products produced for valve core





Tungsten carbide non-standard products application :



Tungsten carbide products are the result of a powder metallurgy process with primarily uses tungsten carbide and cobalt metal powders.Compositions of mixes will range from 4% cobalt to 3% cobalt .The chief reason for choosing use tungsten carbide is to take advantage of the high hardness which these materials exhibit thus retarding the wear rate of individual components.By choosing composition with high cobalt content ,strenght can be achieved alongside hardness.Choose low cobalt cotent for applications where the component will not be expected to experience impact ,achieve high hardness ,high wear resistance .Choose high cobalt content if the application involves shock or impact and achieve greater wear resistance than most other materials can offer,combined with the ability to resist damage.







FEATURES:

  • Material :contains 100% virgin tungsten and cobalt with submicon grain size
  • Quality: long life with super resistance to heat , wear and abrasion
  • Technology: can provide the characteristic custom-made
  • Grade: can design the best grade according to its applications
  • Price:Fast delivery time and excellent cost performance
  • packaging:convenient packaging with standard export packing or according the needs of customer's
  • shipping terms:FOB CIF C&F Etc by sea or air
  • Equipment: Over ten thousand sets of existing non-standard shaped mold







Product Name Tungsten carbide nozzle
Material cemented carbide
Size Non-standard products
Size Tolerance Free tolerance or as customer's request
Color As picture
Recommend Grade YG8 YG11 YG15 etc
Grain Size Medium and Fine Grain
Application Produced according to the customer's use for nozzles
Processing Treatment Clean ground and polished or as customer request.
Product Features Long life,good versatility,good wear resistance.
Certification ISO9001







Grade Performances:



Grade ISO Grade Density Hardness T.R.S 18Application
g/cm3 HRA N/mm²
JT3 K01 15.0 91.0 1400 Qualified for fine turning and half fine turning when cast iron,nonferrous metal ,alloys as well as non alloy materials cutting consecutively,Also qualified for sand -blasting nozzles.
JT6 K20 14.9 90.0 2150 For the cast iron ,nonferrous metal, alloy and unalloyed materials, electric drill for geology use and steel drill ,also process hard wood ,original wood ,aluminum section section bar, brass rod.
JT8 K30 14.7 89.5 2320 For machine manufacture ,processing blades and wearing parts,rough machineing of cast iron , nonferrous metal ,nonmetal materials at low cutting speed ,also used for hard wood , graphite ,grass.
JT11 K40 14.4 88.5 2420 Forming or stamping dies for metal powders and nonmetal powders.
JT15 K40 14.0 87.5 2500 For punching, stamping,forging tools under large stress,fabricating drawing dies of steel tubes and rods under high compressibility ratio,Powder metallurgy mouldenpress mould core,Cut very hard rock formations.
JT20   13.5 85.5 2800 High bending strength ,used for step dies and other stamping dies ,as for watch parts, battery jars ,small screw caps etc.











Packing Process:

Tungsten Carbide Disc Cutter φ200*φ70*3.5 for Cutting PCB Board





FAQ



Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
