K10 YG6X wear resistance Cemented Carbide Disc Cutter Capacitance Cut Foot Machine Use
Product Details:
| Place of Origin: | ZhuZhu , Hunan , China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | φ250*φ70*3.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10KGs |
|---|---|
| Price: | negotiable |
| Packaging Details: | Rubber protector for cutting edges, then packed into custom case |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Material: | Contains 100% Virgin Tungsten And Coblat | Application: | Suitable For Machining Cast Iron ,non-ferrous Metals ,alloy Steel ,stainles Steel ,titaniun , Refractory Alloy ,widely Used In Watch Industry ,glasses Industey Etc. |
|---|---|---|---|
| Payment: | Payment Terms Of T/T, Western Union , Credit Card Are Welcome | Quality: | High Wear Resistance , High Hardness And Impact Toughness |
| Technology: | Imported Equipment HIP Sinter | Service: | 24-hour Online After-sale Service |
| High Light: | tungsten carbide cutting wheel,tungsten carbide wheel cutter |
||
Product Description
K10 YG6X wear resistance Cemented Carbide Disc Cutter Capacitance Cut Foot Machine Use
Carbide Disc cutter K10 contains 100% virgin Tungsten and coblat for capacitance cut foot machine
Carbide Disc Cutter Descriptions :
1. Tungsten carbide disc cutter contains 100% virgin material with submicon grain size
2. High hardness and durability with long life and super resistance to heat ,wear and abrasion
3. Advanced techology and equipment with automatic pressing, HIP sinter and precision grind
Advantagae:
1. Cheap price with compitive wholesale price
2.Various grade that have various grades and size for choose
3.Convenient packaging with standard export packing , or according the needs of customer's.
| Product Name | Tunsten Carbide Disc Cutter |
| Material | cemented carbide |
| Size | φ250*φ70*3.0 or others available |
| Size Tolerance | Free tolerance or as customer's request |
| Color | As picture |
| Recommend Grade | GD20A GD30A etc |
| Grain Size | Medium and Fine Grain |
| Application | for capacitance cut foot machine |
| Processing Treatment | Clean ground and polished or as customer request. |
| Product Features | Long life,good versatility,good wear resistance. |
| Certification | ISO9001 |
Grade Performances:
| Grade | ISO Grade | WC % | CO % | Grain Size | Density | Hardness | T.R.S | Applications | ||
| (μm) | g/cm3 | HRA | HRC | HV | N/mm² | |||||
| GD10 | K20 | 91.5 | 8.5 | 1.6 | 14.3 | 89.5 | 75.1 | 1370 | ≥3000 | Suitable for machining cast iron,non-ferrous metals,alloy steel,stainless steel,titanium,refractory alloy,widely used in watch industry,glasses industry,for cutting PCB board,with good versatility. |
| GD15 | K20 | 91.8 | 8.2 | 1.6 | 14.5 | 89.5 | 75.1 | 1370 | ≥3000 | |
| GD20 | K20 | 92 | 8 | 1.2 | 14.6 | 90 | 75.9 | 1430 | ≥3000 | |
| GD20A | K10 | 92 | 8 | 1 | 14.6 | 90.5 | 77 | 1500 | ≥3200 | |
| GD30A | K10 | 92.2 | 7.8 | 1 | 14.7 | 90.5 | 77 | 1500 | ≥3300 | |
| GD35A | K10 | 91 | 9 | 0.8 | 14.6 | 91 | 77.5 | 1550 | ≥3500 | |
Size Options:
| Size | OD (mm) | ID (mm) | T (mm) |
| φ12×φ6×T | 12 | 6 | 0.6-4.5 |
| φ13×φ6×T | 13 | 6 | 0.6-4.5 |
| φ16×φ6×T | 16 | 6 | 0.6-4.5 |
| φ22×φ10×T | 22 | 10 | 0.6-4.5 |
| φ25×φ12×T | 25 | 12 | 0.6-5.5 |
| φ32×φ10×T | 32 | 10 | 0.8-5.5 |
| φ40×φ10×T | 40 | 10 | 0.8-6.0 |
| φ45×φ13×T | 45 | 13 | 0.8-6.0 |
| φ52×φ24.5×T | 52 | 24.5 | 1.5-4.0 |
| φ64.5×φ14.5×T | 64.5 | 14.5 | 2.0-6.0 |
| φ71.5×φ14.5×T | 71.5 | 14.5 | 2.0-6.0 |
| φ103×φ26.8×T | 103 | 26.8 | 2.0-6.0 |
| φ120×φ25.4×T | 120 | 25.4 | 2.0-6.0 |
| φ200×φ70×T | 200 | 70 | 3.0-4.6 |
| φ250×φ71×T | 250 | 70 | 3.0-4.6 |
| φ355.6×φ254×T | 355.6 | 254 | 5-10 |
| ...... | ...... | ...... | ...... |
For any other sizes we are able to custom-made according to clients’ requirements or drawings.

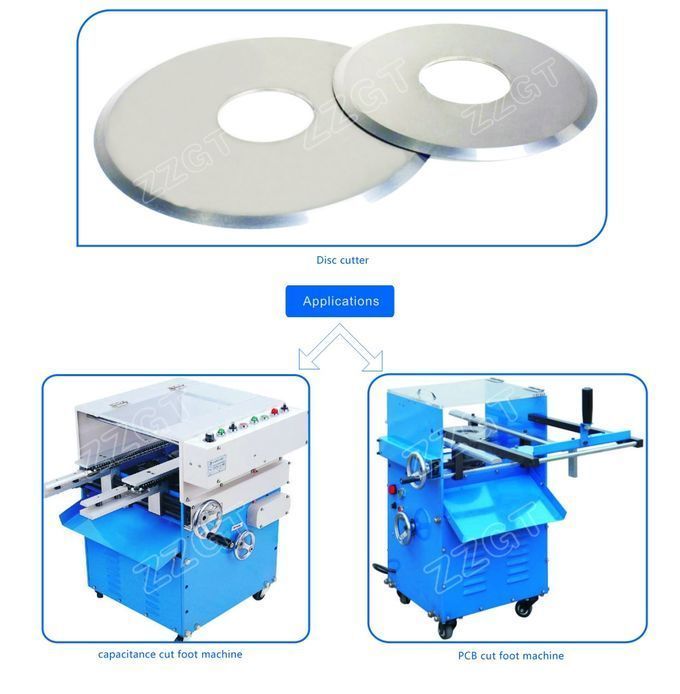

Product Display and Advantages:
Packing Process:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
