Cemented Tungsten Carbide Disc Spacer HIP Sintered Various Grades Optional
Product Details:
| Place of Origin: | ZhuZhu , Hunan , China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | φ31.5*φ7.5*2.0 or other |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10KGs |
|---|---|
| Price: | negotiable |
| Packaging Details: | Rubber protector for cutting edges, then packed into custom case |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Grades: | Specialized Manufacturer Of Tungsten Carbide With Various Grade And Size | Service: | Well-trained Sales Can Give You Professional Suggestions On Product |
|---|---|---|---|
| Quality: | HIP Sinter ,100% Quality Control Before Shipment | Material: | Contains 100% Virgin Tungsten And Cobalt |
| Technology: | Advanced Technology ,automatic Pressing HIP Sinter And Precis On Grinding | Shipments: | Fast Delivery In 7 To 15 Days |
| High Light: | tungsten carbide cutting wheel,carbide cutting disc |
||
Product Description

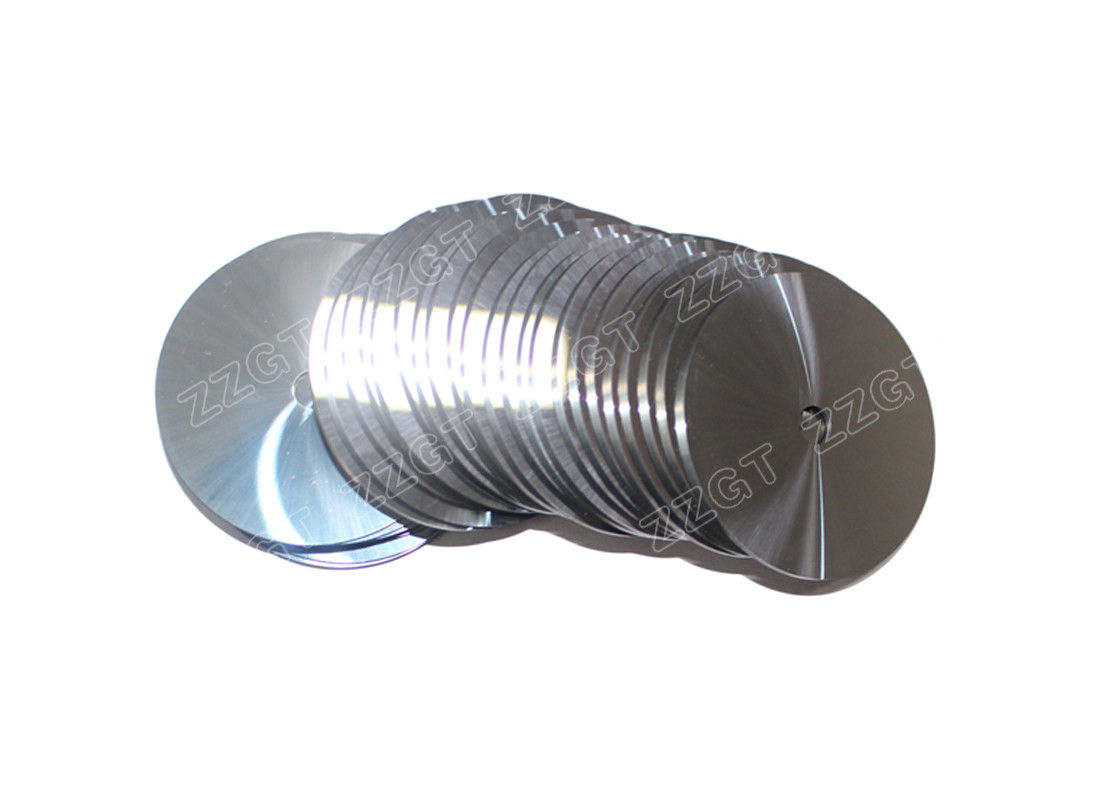

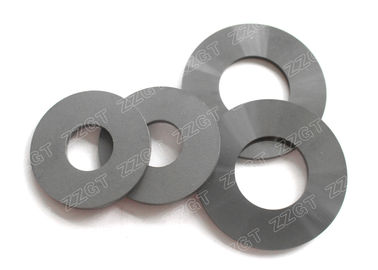

Cemented Tungsten Carbide Disc Spacer HIP Sintered Various Grades Optional
PRODUCT ADVANTAGE:
1. material contains 100% virgin raw material with submicon grain size
2. good quality with super resistance to heat ,wear and abrasion
3. product technology is automatic pressing, HIP sintering and precision grinding
4. have various grade and size for choose
5. cheap price with comptitive wholsesale price
6. convenient packaging for standard export packing or according the need of customer
CUSTOMER SERVICE:
1. We Provided first-class service of after-sale
2. fast delivery in 7--15 days
3. our aim is to make every customer satisfied and we can be WIN-WIN
| Product Name | Tunsten Carbide Disc Spacer |
| Material | cemented carbide |
| Size | φ31.5*φ7.5*2.0 or others available |
| Size Tolerance | Free tolerance or as customer's request |
| Color | As picture |
| Recommend Grade | GD20A GD30A etc |
| Grain Size | Medium and Fine Grain |
| Application | for using the engine |
| Processing Treatment | Clean ground and polished or as customer request. |
| Product Features | Long life,good versatility,good wear resistance. |
| Certification | ISO9001 |
Grade Performances:
| Grade | ISO Grade | WC % | CO % | Grain Size | Density | Hardness | T.R.S | Applications | ||
| (μm) | g/cm3 | HRA | HRC | HV | N/mm² | |||||
| GD10 | K20 | 91.5 | 8.5 | 1.6 | 14.3 | 89.5 | 75.1 | 1370 | ≥3000 | Suitable for machining cast iron,non-ferrous metals,alloy steel,stainless steel,titanium,refractory alloy,widely used in watch industry,glasses industry,for cutting PCB board,with good versatility. |
| GD15 | K20 | 91.8 | 8.2 | 1.6 | 14.5 | 89.5 | 75.1 | 1370 | ≥3000 | |
| GD20 | K20 | 92 | 8 | 1.2 | 14.6 | 90 | 75.9 | 1430 | ≥3000 | |
| GD20A | K10 | 92 | 8 | 1 | 14.6 | 90.5 | 77 | 1500 | ≥3200 | |
| GD30A | K10 | 92.2 | 7.8 | 1 | 14.7 | 90.5 | 77 | 1500 | ≥3300 | |
| GD35A | K10 | 91 | 9 | 0.8 | 14.6 | 91 | 77.5 | 1550 | ≥3500 | |
Size Options:
| Size | OD (mm) | ID (mm) | T (mm) |
| φ12×φ6×T | 12 | 6 | 0.6-4.5 |
| φ13×φ6×T | 13 | 6 | 0.6-4.5 |
| φ16×φ6×T | 16 | 6 | 0.6-4.5 |
| φ22×φ10×T | 22 | 10 | 0.6-4.5 |
| φ25×φ12×T | 25 | 12 | 0.6-5.5 |
| φ32×φ10×T | 32 | 10 | 0.8-5.5 |
| φ40×φ10×T | 40 | 10 | 0.8-6.0 |
| φ45×φ13×T | 45 | 13 | 0.8-6.0 |
| φ52×φ24.5×T | 52 | 24.5 | 1.5-4.0 |
| φ64.5×φ14.5×T | 64.5 | 14.5 | 2.0-6.0 |
| φ71.5×φ14.5×T | 71.5 | 14.5 | 2.0-6.0 |
| φ103×φ26.8×T | 103 | 26.8 | 2.0-6.0 |
| φ120×φ25.4×T | 120 | 25.4 | 2.0-6.0 |
| φ200×φ70×T | 200 | 70 | 3.0-4.6 |
| φ250×φ71×T | 250 | 70 | 3.0-4.6 |
| φ355.6×φ254×T | 355.6 | 254 | 5-10 |
| ...... | ...... | ...... | ...... |
For any other sizes we are able to custom-made according to clients’ requirements or drawings.
Packing Process:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
