Fine Grinding Tungsten Carbide Cutting Disc Abrasion Resistance With Good Versatility

Fine Grinding Tungsten Carbide Cutting Disc Abrasion Resistance With Good Versatility

Product Details:

Place of Origin: ZhuZhu , Hunan , China
Brand Name: Gingte Li
Certification: ISO9001:2015
Model Number: φ103*φ26.8*2.0

Payment & Shipping Terms:

Minimum Order Quantity: 10KGs
Price: negotiable
Packaging Details: Rubber protector for cutting edges, then packed into custom case
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 400 tons/year
Get Best Price Contact Now

Detail Information

Material: Contains 100% Virgin Raw Material With Submicon Grain Size Technology: Imported Equipment HIP Sinter
Quality: Long Life With Super Resistance To Heat , Wear And Abrasion Packaging: Standard Export Packing,or Per Customer Needs
Service: 24-hour Online After-sale Service Shipments: Some Products Are In Stock For Fast Delivery
High Light:

carbide cutting disc

,

tungsten carbide wheel cutter

Product Description

Fine Grinding Tungsten Carbide Cutting Disc Abrasion Resistance With Good Versatility



Comptitive Price Tungsten Carbide Cutter Blade K10 103*26.8*2.0 with good versatility




ADVANTAGES OF THE TUNGSTEN CARBIDE DISC CUTTER BLADE:
  1. Material :contain 100% virgin raw material with submicon grain size
  2. Technology:automatic pressing, HIP sintering and precision grinding
  3. Quality: long life with super resistance to heat ,wear and abrasion
  4. grade: have various grade and size for choose
  5. price:cheap price wiht comptitive wholesale price
  6. surface treatment: fine grinding

CUSTOMER SERVICE:

  1. can to product base on client's design
  2. 24-hour online after-sales service
  3. Our aim if to make every customer satisfied and we can be WIN-WIN




Carbide Disc Cutter Descriptions :



Tungsten carbide disc cutter is applied in various acpects up to a diameter from 12mm to 355mm in  with thickness range of 0.6mm to 20mm. Application in a wide range including cigarette machinery, corrugated box packaging, paper core or tissue cutting, foam, fabric cutting, metal slitting, rubber, tire, plastic, medical, meat & poultry processing, wood working,disc saw blads in electical line and many more.



Product Name Tunsten Carbide Disc Cutter
Material cemented carbide
Size φ103*φ26.8*2.0or others available
Size Tolerance Free tolerance or as customer's request
Color As picture
Recommend Grade GD20A GD30A etc
Grain Size Medium and Fine Grain
Application Mainly for cutting PCB board etc
Processing Treatment Clean ground and polished or as customer request.
Product Features Long life,good versatility,good wear resistance.
Certification ISO9001







Grade Performances:



Grade ISO Grade WC % CO % Grain Size Density Hardness T.R.S Applications
(μm) g/cm3 HRA HRC HV N/mm²
GD10 K20 91.5 8.5 1.6 14.3 89.5 75.1 1370 ≥3000 Suitable for machining cast iron,non-ferrous metals,alloy steel,stainless steel,titanium,refractory alloy,widely used in watch industry,glasses industry,for cutting PCB board,with good versatility.
GD15 K20 91.8 8.2 1.6 14.5 89.5 75.1 1370 ≥3000
GD20 K20 92 8 1.2 14.6 90 75.9 1430 ≥3000
GD20A K10 92 8 1 14.6 90.5 77 1500 ≥3200
GD30A K10 92.2 7.8 1 14.7 90.5 77 1500 ≥3300
GD35A K10 91 9 0.8 14.6 91 77.5 1550 ≥3500





Size Options:



Size OD (mm) ID (mm) T (mm)
φ12×φ6×T 12 6 0.6-4.5
φ13×φ6×T 13 6 0.6-4.5
φ16×φ6×T 16 6 0.6-4.5
φ22×φ10×T 22 10 0.6-4.5
φ25×φ12×T 25 12 0.6-5.5
φ32×φ10×T 32 10 0.8-5.5
φ40×φ10×T 40 10 0.8-6.0
φ45×φ13×T 45 13 0.8-6.0
φ52×φ24.5×T 52 24.5 1.5-4.0
φ64.5×φ14.5×T 64.5 14.5 2.0-6.0
φ71.5×φ14.5×T 71.5 14.5 2.0-6.0
φ103×φ26.8×T 103 26.8 2.0-6.0
φ120×φ25.4×T 120 25.4 2.0-6.0
φ200×φ70×T 200 70 3.0-4.6
φ250×φ71×T 250 70 3.0-4.6
φ355.6×φ254×T 355.6 254 5-10
...... ...... ...... ......

For any other sizes we are able to custom-made according to clients’ requirements or drawings.

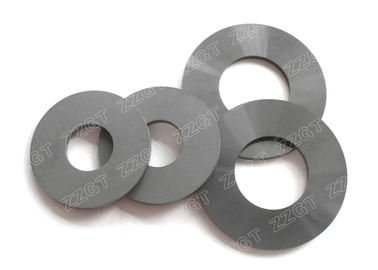

Product Display and Advantages:

Fine Grinding Tungsten Carbide Cutting Disc Abrasion Resistance With Good Versatility 0





Packing Process:

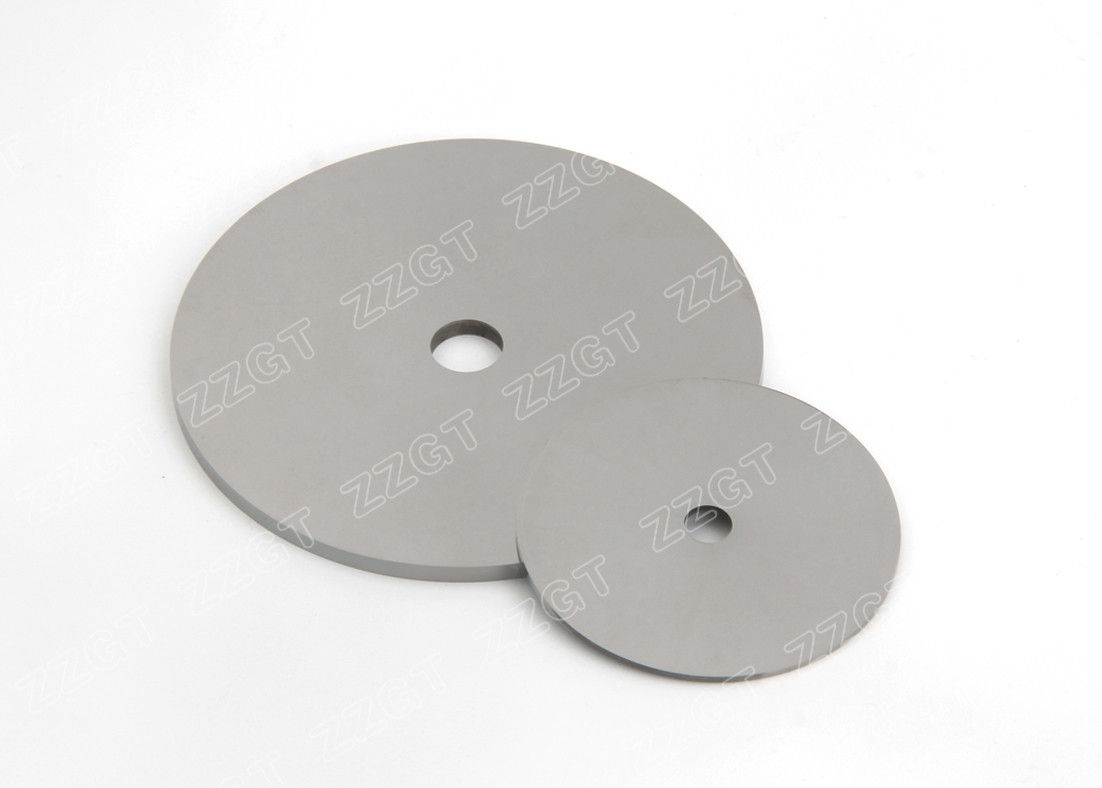

Tungsten Carbide Disc Cutter φ200*φ70*3.5 for Cutting PCB Board





FAQ



Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
