E20 Tungsten Carbide Spherical Button OD16*24mm

E20 Tungsten Carbide Spherical Button OD16*24mm

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: ZZGT Li
Certification: ISO9001-2015
Model Number: OD16*24

Payment & Shipping Terms:

Minimum Order Quantity: Samples are accepted
Price: Negotiable
Packaging Details: Paper box , Wooden Carton or Customized accepted
Delivery Time: 7-15days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 400T/year
Get Best Price Contact Now

Detail Information

Services: 24hours Material: 100% Virgin Tungsten Carbide Powder
Feature: Durable And Long Life Time Surface Finish: Ground
Grade:: E20 Application: Punch Mould
High Light:

Tungsten Carbide Spherical Button

,

Spherical Button OD16*24mm

,

E20 Tungsten Carbide Drill Bits

Product Description

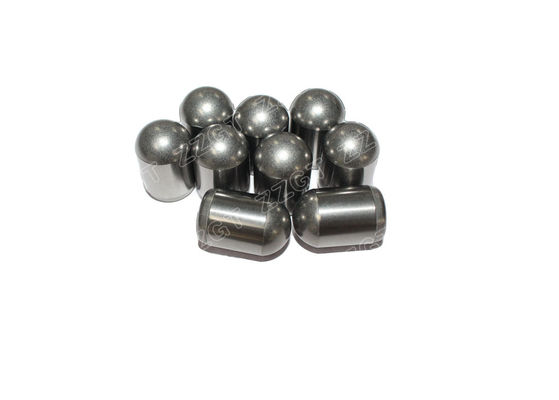

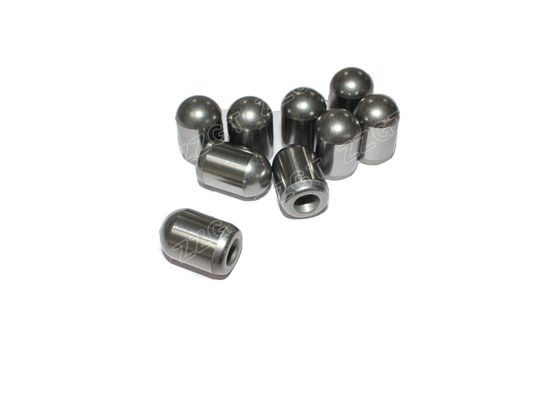

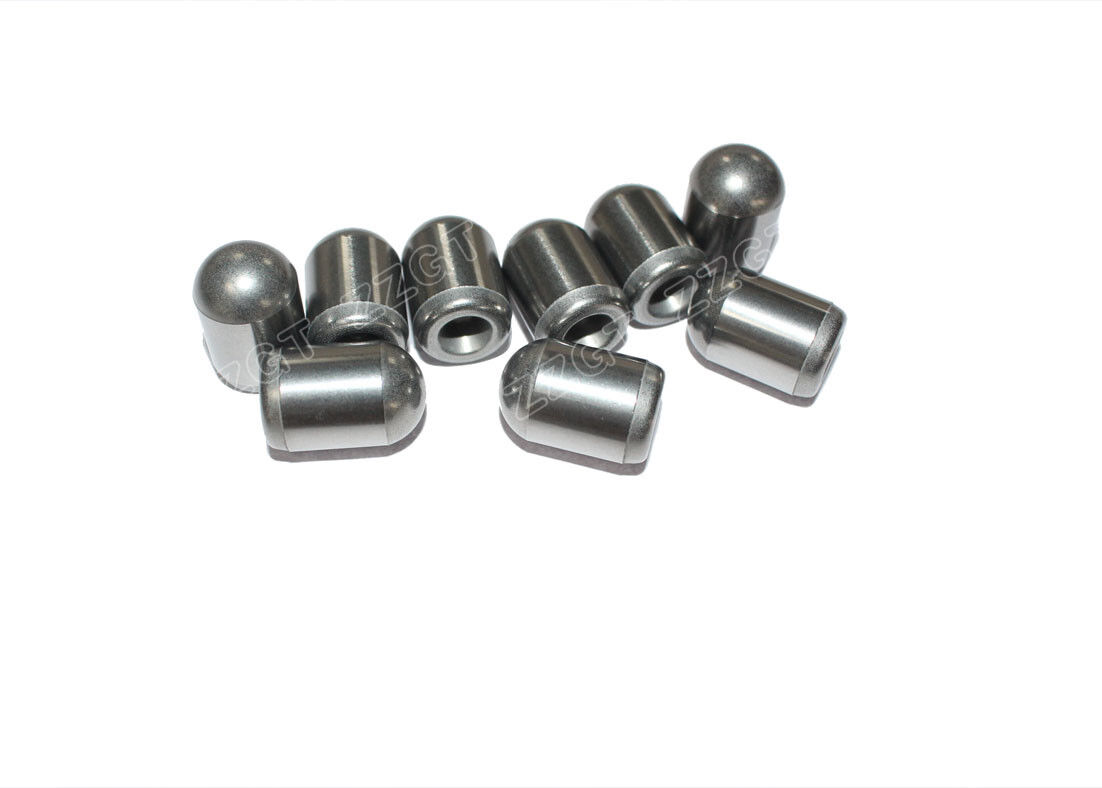

E20 Tungsten Carbide Spherical Button OD16*24mm

Tungsten Carbide Spherical Button Size D16*24 Drill Bits Insert for the cutter head and tools of the shielf machine





-100% virgin raw materials, stable chemical properties, long life circle.
-High hardness, good hardness, excellent wear-resistance.
-Various sizes and full types available
-Products can be customized upon requirement


Product Description:



Product Name Tungsten carbide sperical button
Material cemented carbide
Size OD16X24
Size Tolerance standard tolerance
Color Sliver grey
Recommend Grade Good wear resistance
Grain Size Coarse Grain Size
Application For cutter of TBM
Processing Treatment HIP sintering
Product Features Long life, wear resistance
Certification ISO9001-2015



Grade Performance



Tungsten Carbide Cold Forging/heading Dies
Grades Density T.R.S Hardness Performance & application recommended
g/cm³ MPa HRA
YG11 14.4 ≥3000 88.5 Forming or stamping dies for metal powders and nonmetal powders.
YG15 14 ≥3400 87.5 For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress.
YG20 13.5 ≥3800 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG15C 14 ≥4000 86.5 For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood.
YG16C 13.9 ≥3500 85.5 Impact resistance forging dies.
YG18C 13.7 ≥3600 84.5 Impact resistance forging dies, hot-press forging dies and rollers.
YG20C 13.5 ≥3800 83.5 Dies for wear resistant or impact resistant application.
YG22C 13.3 ≥4000 83 Nut forming dies and high impact resistance forging dies.
GT55 13.1 ≥4250 82.5 Stainless bolt header dies and rollers.





E20 Tungsten Carbide Spherical Button OD16*24mm 0



Factory Equipments:



There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd

* HIP sintering furnace

* Spraying Draying system

* 200T TPA acutomatic press machine

* CNC Grinder

* Spark Erosion machine

* Wire cutting machine,etc
