Yg8c 11mm Tungsten Carbide Insert , Cemented Carbide Inserts With Ballistic Type
Product Details:
Place of Origin: | Zhuzhou,Hunan,China |
Brand Name: | ZZGT Li |
Certification: | ISO9001:2015 |
Model Number: | Dia11x16 |
Payment & Shipping Terms:
Minimum Order Quantity: | Samples are accepted |
---|---|
Price: | Negotiable |
Packaging Details: | Paper box , Wooden Carton or Customized accepted |
Delivery Time: | 7-15days |
Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
Supply Ability: | 400T/year |
Detail Information |
|||
Services: | 24hours | Material: | 100% Virgin Tungsten Carbide Powder |
---|---|---|---|
ISO: | YG8C | Surface Finish: | Passivation |
OEM/ODM: | Yes | Application: | Shield Machine |
High Light: | tungsten carbide parts,tungsten carbide mining bits |
Product Description

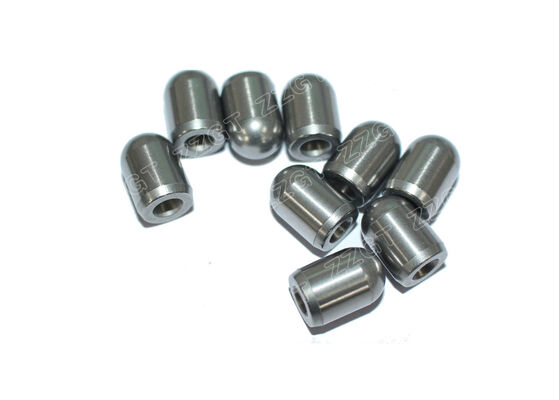

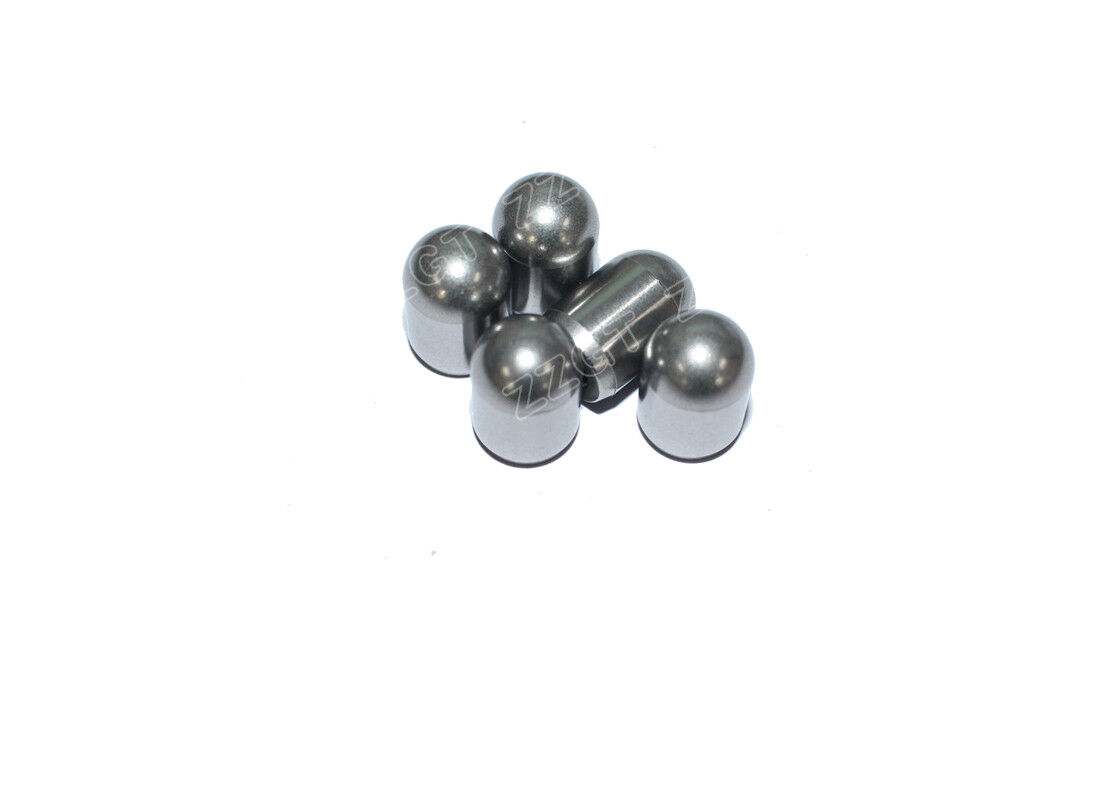

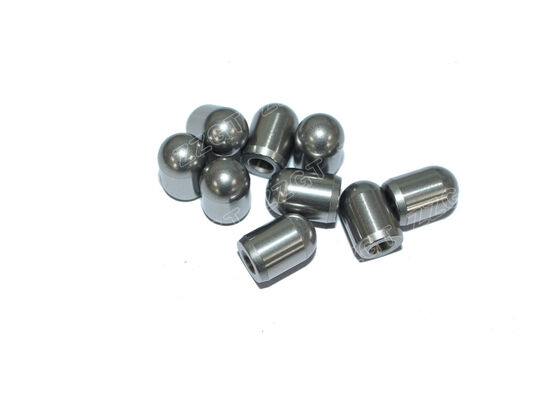

YG8C 11mm tungsten carbide insert with Ballistic type
About Us
Founded in 2008, Zhuzhou Gingte began in the mining industry by manufacturing Tungsten Carbide-protected wear parts for high impact, abrasion, corrosion, and supreme wear resistance. Throughout the past 12 years, we have developed a reputation for excellence in wear protection in part and sub-component performance life. Over the years, we added custom engineering, machining to our core competencies. Our expertise and innovative solutions have become a symbol of quality in Carbide-protected wear parts. At Gingte Carbide company, we are proud of our history and we look to our future, continuing our core mission of providing the highest quality products with economical price to our customers.
Product Description:
Product Name | tungsten carbide Inserts |
Material | Hard metal |
Size | Diameter 11x16 |
Size Tolerance | According to the drawing |
Color | Sliver grey |
Recommend Grade | K20 |
Grain Size | Coarse Grain Size |
Application | Tungsten Carbide-protected wear parts |
Processing Treatment | HIP sintering |
Product Features | Long life, wear resistance |
Certification | ISO9001-2015 |
Grade Performance
Tungsten Carbide Cold Forging/heading Dies | |||||
Grades | Density | T.R.S | Hardness | Performance & application recommended | |
g/cm³ | MPa | HRA | |||
YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. | |
YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. | |
YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. | |
GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. |
More Details:
Factory Equipments:
There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd
*HIP sintering furnace
*Spraying Draying system
*200T TPA acutomatic press machine
*CNC Grinder
*Spark Erosion machine
*Wire cutting machine,etc
