Rock Drilling Tungsten Carbide Hemispherical Shaped Inserts With Line Groove
Product Details:
Place of Origin: | Zhuzhou,Hunan,China |
Brand Name: | ZZGT Li |
Certification: | ISO9001:2015 |
Model Number: | Diameter 15.95x 19.05 |
Payment & Shipping Terms:
Minimum Order Quantity: | Samples are accepted |
---|---|
Price: | Negotiable |
Packaging Details: | Paper box , Wooden Carton or Customized accepted |
Delivery Time: | 7-15days |
Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
Supply Ability: | 400T/year |
Detail Information |
|||
Material: | Virgin Tungsten Carbide | ISO: | K30 |
---|---|---|---|
Surface: | Passivation And Grinding | Application: | Rock Drilling |
Service: | 24hours | OEM: | Accepted |
Highlight: | tungsten carbide parts,carbide button bits |
Product Description

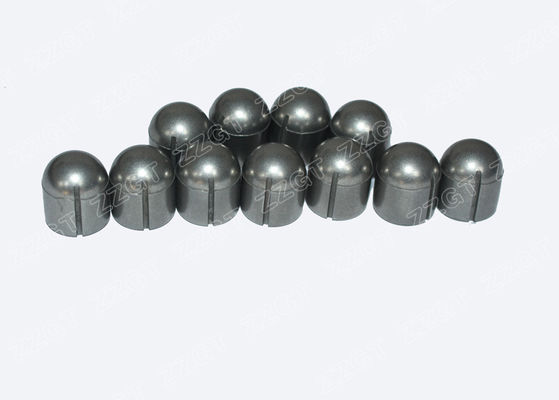

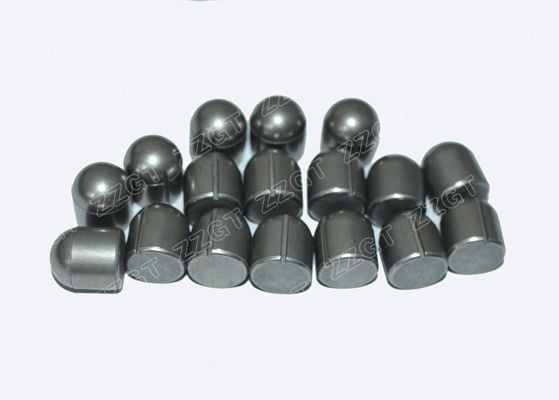

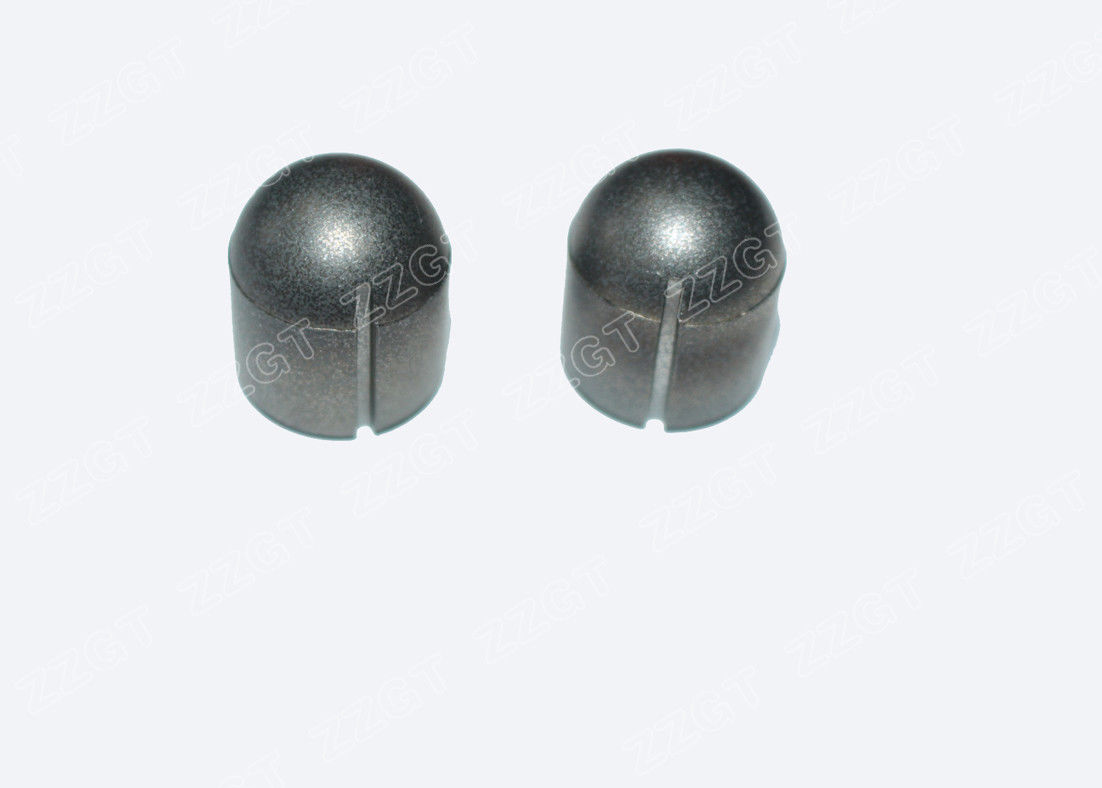

tungsten carbide Hemispherical shaped inserts with line groove for rock drilling
About Products:
Since 2009 Zhuzhou Gingte has been manufacturing premium quality carbide items, through modern technologies and innovative production processes.
Thanks to 10 years of continuous R&D activities Zhuzhou Gingte produces a wide range of excellent carbide products (especially carbide rods, carbide square and rectangular bars and disc cutters), both standard or customized in accordance with customers’ different needs. Product quality and process efficiency are always checked in accordance with the strictest international standards: Zhuzhou Gingte is certified by ISO 9001:2015.
Grade Performance
Tungsten Carbide Cold Forging/heading Dies | |||||
Grades | Density | T.R.S | Hardness | Performance & application recommended | |
g/cm³ | MPa | HRA | |||
YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. | |
YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. | |
YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. | |
GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. |
More Details:
Factory Equipments:
There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd
*HIP sintering furnace
*Spraying Draying system
*200T TPA acutomatic press machine
*CNC Grinder
*Spark Erosion machine
*Wire cutting machine,etc
