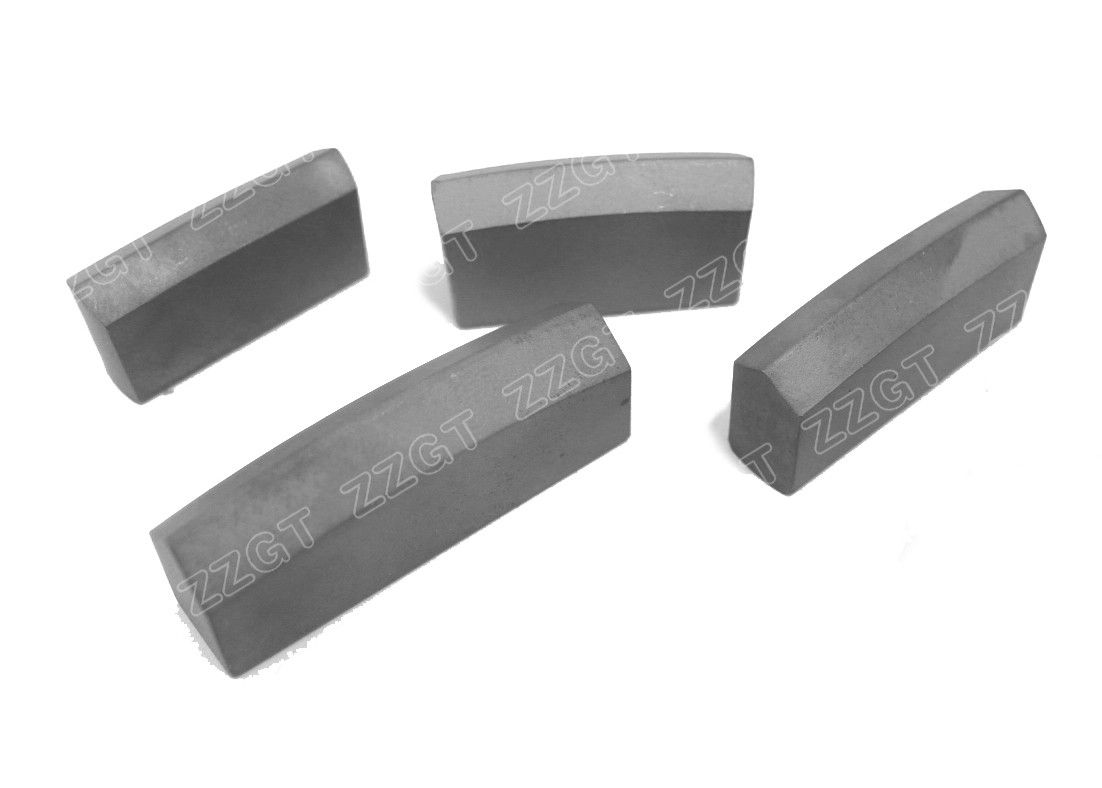

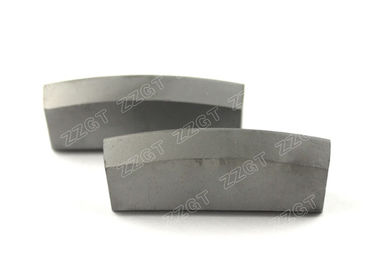

K1 Type Mining Tungsten Carbide Inserts K40 For Embedding Cross And X Tape Drill Bits
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | various |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30KGs |
|---|---|
| Price: | negotiable |
| Packaging Details: | First paper packing each piece then pack into paper boxes or plastic box,next use exported cartons or wooden cases,or packed as customers'requirement. |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Material: | Contains 100% Original Tungsten And Cobalt | Size: | Various Grade And Size For Choose |
|---|---|---|---|
| Technology: | HIP Sinter | Shipping Terms: | FOB , CIF ,C&F Etc By Sea Or By Air |
| Hardness: | 88 HRA | Service: | 24-hour Online |
| Package: | Standard Export Package Or According Clients Required | Purpose: | For Mining Tools |
| High Light: | tungsten carbide parts,tungsten carbide mining bits |
||
Product Description
K1 Type Mining Tungsten Carbide Inserts K40 For Embedding Cross And X Tape Drill Bits
K1 type tungsten carbide mining inserts K40 customized for embedding cross and x-tape drill bits
Advantages of Tungsten carbide mining inserts:
1.High efficient in crushing
2.Low energy consumption
3.Long service life
4.Easy to replace
5.100% virgin raw material
6.Advance production equipment
7.With production experientce over 10 years
Application of mining inserts:
Suitable for mining and geological prospecting drill bits for drilling interlocked hard and soft rock formations, hand holding or shelf electricallyi driven drills for mining for drilling coal stong and hard and super hard coal formations.And for making auger tips for coal cutters.
Grade Performances:
| Grade | Density | T.R.S | Hardness | Performance & Application Recommended |
| g/cm3 | MPα | HRA | ||
| YG8C | 14.7 | 2450 | 88.5 | Mostly used as the buttons of small and mediumsized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations. |
| YG9C | 14.6 | 2450 | 87.8 | Suitable for super hard rock formation with excellent wear resistance. |
| YG10C | 14.4 | 2550 | 87 | Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations. |
| YG11C | 14.4 | 2600 | 87 | Suitable for soft, medium and hard rock formations, with high toughness. |
| YG13C | 14.2 | 2650 | 86.5 | Predominatly for the buttons of tricone bits and inserts of rotary percussion bits to cut hard and vey hard formations. |
| YG15C | 14 | 2700 | 86.5 | For oil cone drill bits, for medium soft and medium -hard rocks. |
Available Sizes and Different Shape mining inserts:
| Sr.No | Dimensions (mm) |
| 1 | 25*18*20 |
| 2 | 30*25*18 |
| 3 | 44*43*28*29 |
| 4 | 44*32.8*R5*26 |
| 5 | 46*45*28*28 |
| 6 | 46*45*30*29 |
| 7 | 47*32*45*26 |
| 8 | 47*45*26*32 |
| 9 | 50*20*35 |
| 10 | 54*25*15 |
| 11 | 75*23*45 |
| ........... | |
For any other sizes we are able to custom-made according to clients’ requirements or drawings.
Product Display:
Advanced Equipments
Packing Process
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
