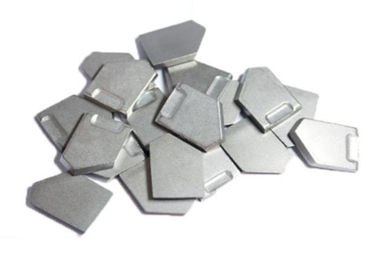

Long Life Tungsten Products Cemented Carbide Serrated button Bit / Insert / Tips
|Place of Origin:||Zhuzhou,Hunan,China|
|Brand Name:||Gingte Li|
Payment & Shipping Terms:
|Minimum Order Quantity:||50KGs|
|Packaging Details:||First paper packing each piece then pack into paper boxes or plastic box,next use exported cartons or wooden cases,or packed as customers'requirement.|
|Delivery Time:||7-15 work days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||400 tons/year|
|Material:||Tungsten Carbide||Surface Treatment:||Blank Or Grinded|
|Usage:||Rocking Drilling||Carbide Chemical Composition:||WC+Cobalt|
|Shipping Terms:||FOB,CIF,C&F Etc By Sea Or By Air||Roughness:||0.2-1.6|
carbide button bits,
tungsten carbide mining bits
tungsten cemented carbide serrated bit/insert/tips with competitive price
Prodcut Descriptions :

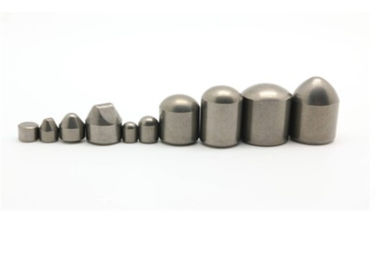

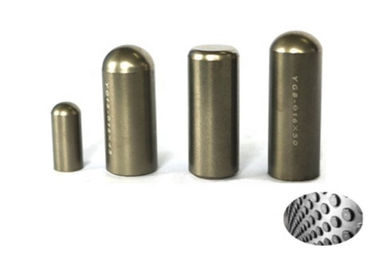

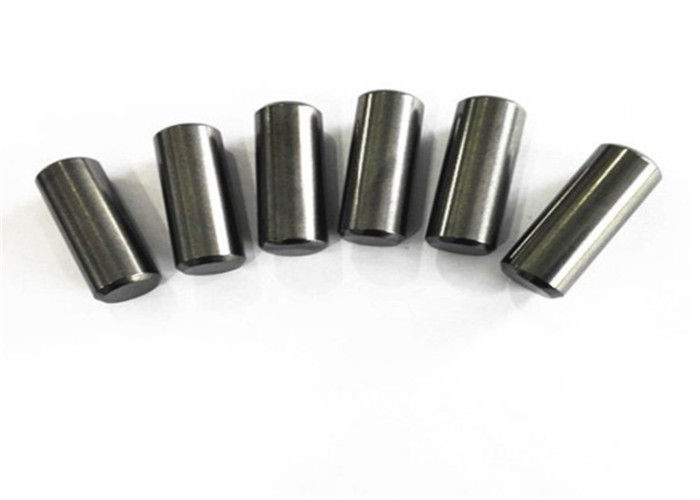

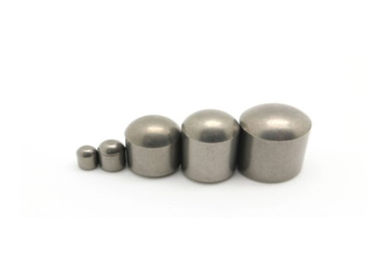

This Hemispherical Shaped Tungsten Carbide Inserts is widely used for high and low air pressure DTH drill bits,top hammer bits and others.
|Product Name||Tungsten Carbide Spherical Insert for Rock Drilling Tools|
|Size||φ16*24 or other size available|
|Size Tolerance||±0.2 or as customer's request|
|Recommend Grade||YG8 or others|
|Carbide Grain Size||Medium Grain|
|Application||for Rocking Drilling|
|Product Features||Long life, wear resistance|
For any other sizes we are able to custom-made according to clients’ requirements or drawings.
|Grade||Density||T.R.S||Hardness||Performance & Application Recommended|
|YG6||14.9||2100||90||or coring crowns,electric coal drill bits,coal cutting picks,oil cone bits and scraping knife bits, usd in geological prospecting, coal mining and oil well boring.|
|YG8||14.7||2400||89.5||For coring crowns, electric coal drill bits, coal cutting picks, cone drill bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring.|
|YG8C||14.7||2450||88.5||Mostly used as the buttons of small and mediumsized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations.|
|YG9C||14.6||2450||87.8||Suitable to strips, conical buttons for rotary percussion-resistant, geological prospecting buttons, cut soft and medium hard formations.|
|YG10C||14.4||2550||87||Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations.|
|YG11C||14.4||2600||87||Largely for the inserts and buttons of percussion bits and tricone bits to cut medium-hard, hard, and very hard formations.|
|YG13C||14.2||2650||86.5||Predominatly for the buttons of tricone bits and inserts of rotary percussion bits to cut hard and vey hard formations.|
|YG15C||14||2700||86.5||For oil cone drill bits, for medium soft and medium -hard rocks.|
|YG15||14||2500||87.5||Good strength and less wear resistance,for bits of rotary hammer rock drills and heavy rock drills, for hard and very hard rocks.|
Product Application Display:
Packing Details : In cartons,wooden boxes,plastic boxes or customized.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How can i place an order ?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
Q: What is your terms of delivery ?
A: We accept EXW, FOB, C&F, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Contact us at your free time when you are interested in our products
