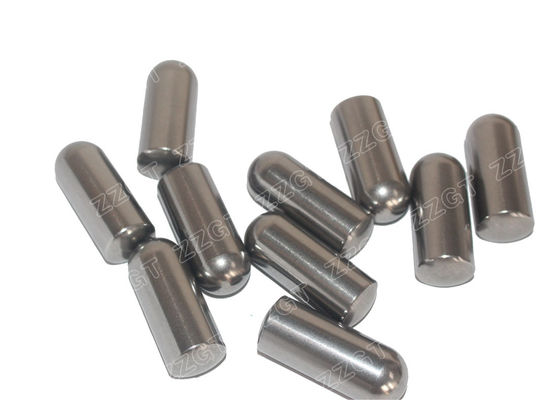

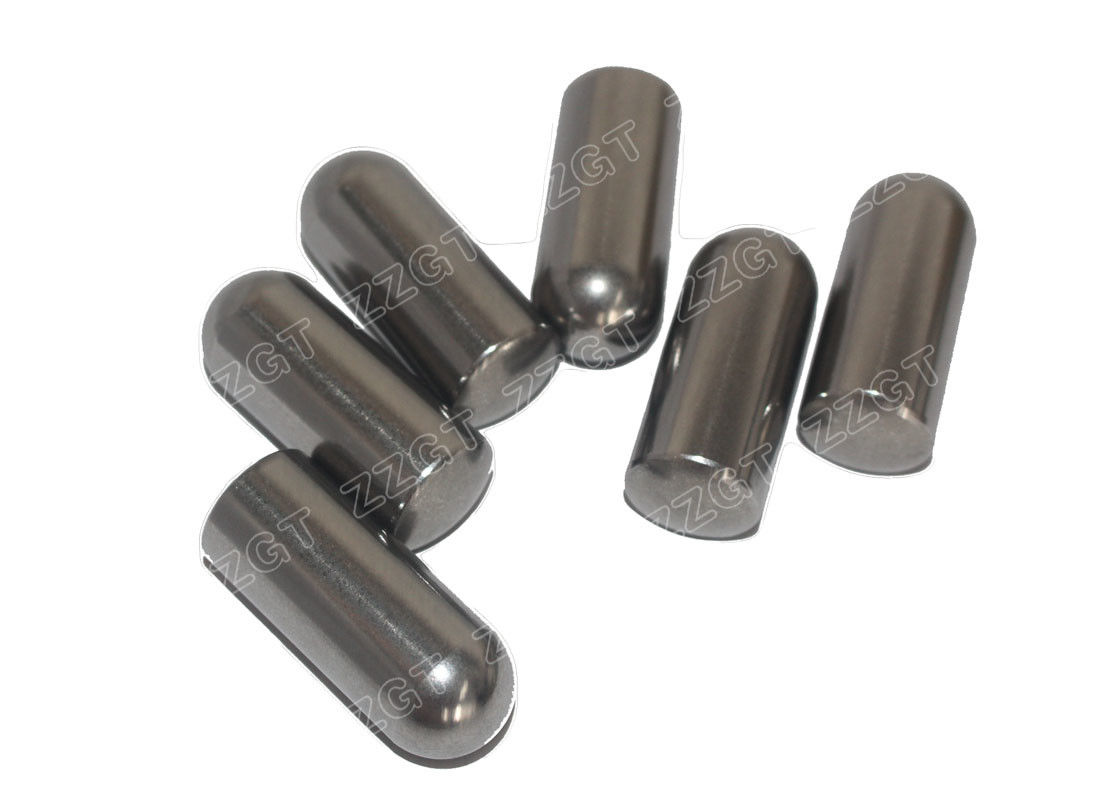

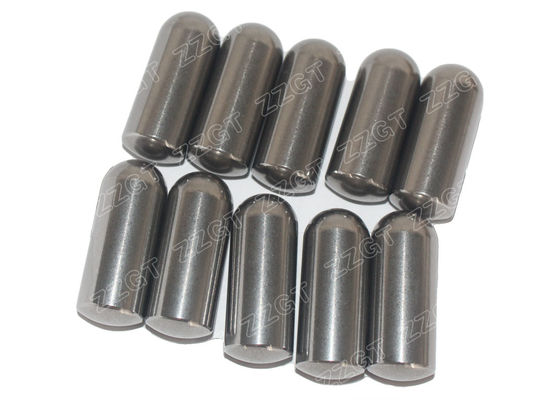

YG11 YG18 YG15 Tungsten Carbide Studs For High Pressure Grinding Roller
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | ZZGT Li |
| Certification: | ISO9001-2015 |
| Model Number: | φ20x35 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Samples are accepted |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Paper box , Wooden Carton or Customized accepted |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 400T/year |
|
Detail Information |
|||
| Services: | 24hours | Material: | 100% Virgin Tungsten Carbide Powder |
|---|---|---|---|
| Feature: | Durable And Long Life Time | Surface Finish: | Passvitation |
| Grade: | K30 | Application: | HPGR |
| High Light: | YG15 Tungsten Carbide Studs,YG18 Tungsten Carbide Studs,High Pressure Grinding Roller Carbide Studs |
||
Product Description
YG11 YG18 YG15 Tungsten Carbide Studs For High Pressure Grinding Roller
YG11/YG18/YG15 tungsten carbide studs for high pressure grinding roller
High Pressure Grinding Roller is an energy-efficient crushing equipment of new technologies. High performance of carbide stud extends the life of
High Pressure Grinding Roller. Zhuzhou Gingte provide quality carbide stub with good wear resistance and high compressive strength, can satisfy the requirements of different conditions.
Grinding bulk material.
As pre grinding equipment before ball mill or form complex grinding system with ball mill in the field of mineral separation,
Widely used in grinding cement clinker,limestone,bauxite,iron ore.
Product Description:
| Product Name | Cemented Carbide stud pins |
| Material | Hard metal |
| Size | customized |
| Size Tolerance | standard tolerance |
| Color | Sliver grey |
| Recommend Grade | Good wear resistance |
| Grain Size | Middle Grain Size |
| Application | For HPGR |
| Processing Treatment | HIP sintering |
| Product Features | Long life, wear resistance |
| Certification | ISO9001-2015 |
Grade Performance
| Tungsten Carbide Cold Forging/heading Dies | |||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended | |
| g/cm³ | MPa | HRA | |||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
| YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. | |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. | |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. | |
| GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. | |
Factory Equipments:
There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd
* HIP sintering furnace
* Spraying Draying system
* 200T TPA acutomatic press machine
* CNC Grinder
* Spark Erosion machine
* Wire cutting machine,etc
Contacts:
For further question, pls contact our sales engineer
Name:Daisy Tian
E-mail: zzgt3@gtcarbide.com
Mobile/whatsapp:+8613874120766
