K40 Spherical Tungsten Carbide Studs , Tungsten Carbide HPGR Stud
Product Details:
| Place of Origin: | ZHUZHOU CHINA |
| Brand Name: | GINGTE LI |
| Certification: | ISO9001:2015 |
| Model Number: | GK07 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30kgs |
|---|---|
| Price: | negotiable |
| Packaging Details: | Paper box , Wooden Carton or Customized accepted |
| Delivery Time: | 15-25 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 400T per year |
|
Detail Information |
|||
| Material: | Tungsten Carbide Cobalt | Grade: | K40 |
|---|---|---|---|
| Appication: | For HPGR Machine | Color: | Sliver Grey |
| Surface: | Blank Or Grinded | Finished: | Supported |
| High Light: | tungsten studs,tungsten carbide pins |
||
Product Description

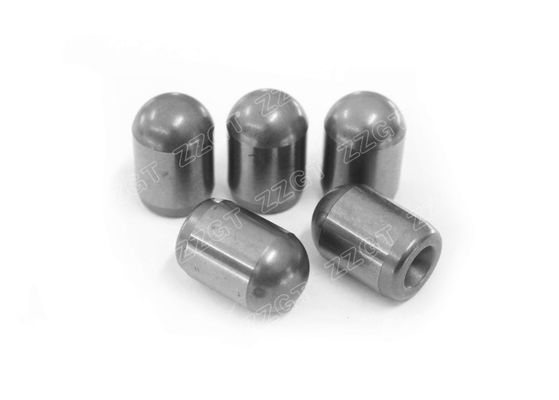

K40 Spherical Tungsten Carbide Studs , Tungsten Carbide HPGR Stud
K40 Spherical Tungsten Carbide Studs , Tungsten Carbide HPGR Stud
| Product Name: | Cemented Carbide studs | Material: | WC+CO |
|---|---|---|---|
| Size: |
dia:10-20mm |
Feature: | High Hardness,corrosion Resistance |
| Usage: | High Pressure Grinding Roll | Trade Term: | FOB , CIF ,C&F |
HPGR stud introduction:
High pressure grinding rolls are an energy efficient grinding solution, our innovative approach to HPGR stud technology, is like no other HPGR stud on the market.
Main features of the HPGR stud are:
- Tungsten carbide studded tires with patent
- Feed hopper with guide plates to direct the feed into the crushing zone
- Hydraulic cylinders can be adjusted to provide the optimal crushing force
- Variable speed drive train suitable to run between 110% to 30%* full speed (*select sizes run between 110% to 50% full speed)
- Dust enclosure to provide a dust and noise barrier while also offering added protection for the main bearings
Benefits
- Increased circuit efficiency and capacity - flanges direct material to the crushing zone, maximizing the amount of ore crushed. In a closed circuit pilot scale operation, this amounted to over a 20% increase in circuit capacity and over a 10% decrease in circuit specific energy
- Improved availability – patented Arch-frame eliminates downtime associated with skewing
- Increased reliability – anti-skewing Arch-frame prevents bearings from being damaged due to misalignment
- Reduced operating costs – energy efficiency, longevity of wear components including the studded tires and no use of grinding media all contribute to low operating costs
- Flexible operating parameters – speed and pressure can be adjusted for changing ore conditions and downstream circuit demands
We Guarantee:
· 1. 100% raw material.
· 2. Sintered in HIP Furnace
· 3. Size standard as per your requirements
· 4. Professional suggestion on products
· 5. Feedback within 24 hours
· 6. ISO9001: 2008 certificate.
· 7. Fully adopted in advance technology and equipment.
· 8. Professional manufacture for tungsten carbide items with rich experience.
Product Specification:
| Grade | Density | T.R.S | Hardness | Performance & Application Recommended |
| g/cm3 | MPα | HRA | ||
| YG6 | 14.9 | 2100 | 90 | For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring. |
| YG8 | 14.7 | 2400 | 89.5 | For coring crowns, electric coal drill bits, coal cutting picks, cone drill bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring. |
| YG8C | 14.7 | 2450 | 88.5 | Mostly used as the buttons of small and medium sized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations. |
| YG9C | 14.6 | 2450 | 87.8 | Suitable to strips, conical buttons for rotary percussion-resistant, geological prospecting buttons, cut soft and medium hard formations. |
| YG10C | 14.4 | 2550 | 87 | Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations. |
| YG11C | 14.4 | 2600 | 87 | Largely for the inserts and buttons of percussion bits and tricone bits to cut medium-hard, hard, and very hard formations. |
| YG13C | 14.2 | 2650 | 86.5 | Predominantly for the buttons of tricone bits and inserts of rotary percussion bits to cut hard and vey hard formations. |
| YG15C | 14 | 2700 | 86.5 | For oil cone drill bits, for medium soft and medium -hard rocks. |
| YG15 | 14 | 2500 | 87.5 | Good strength and less wear resistance, for bits of rotary hammer rock drills and heavy rock drills, for hard and very hard rocks. |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit.
