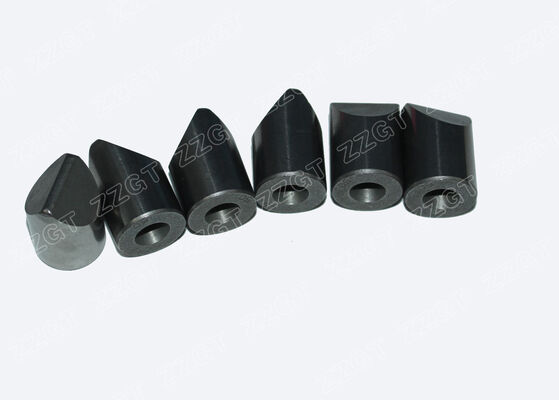

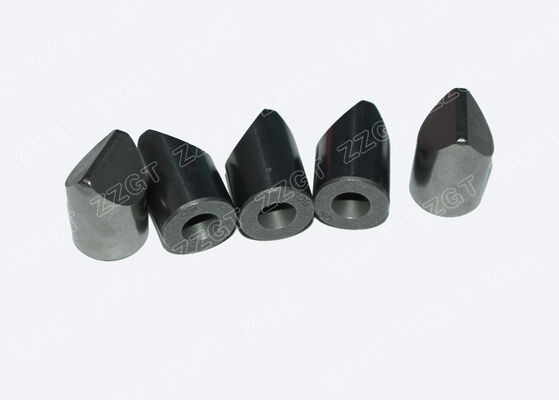

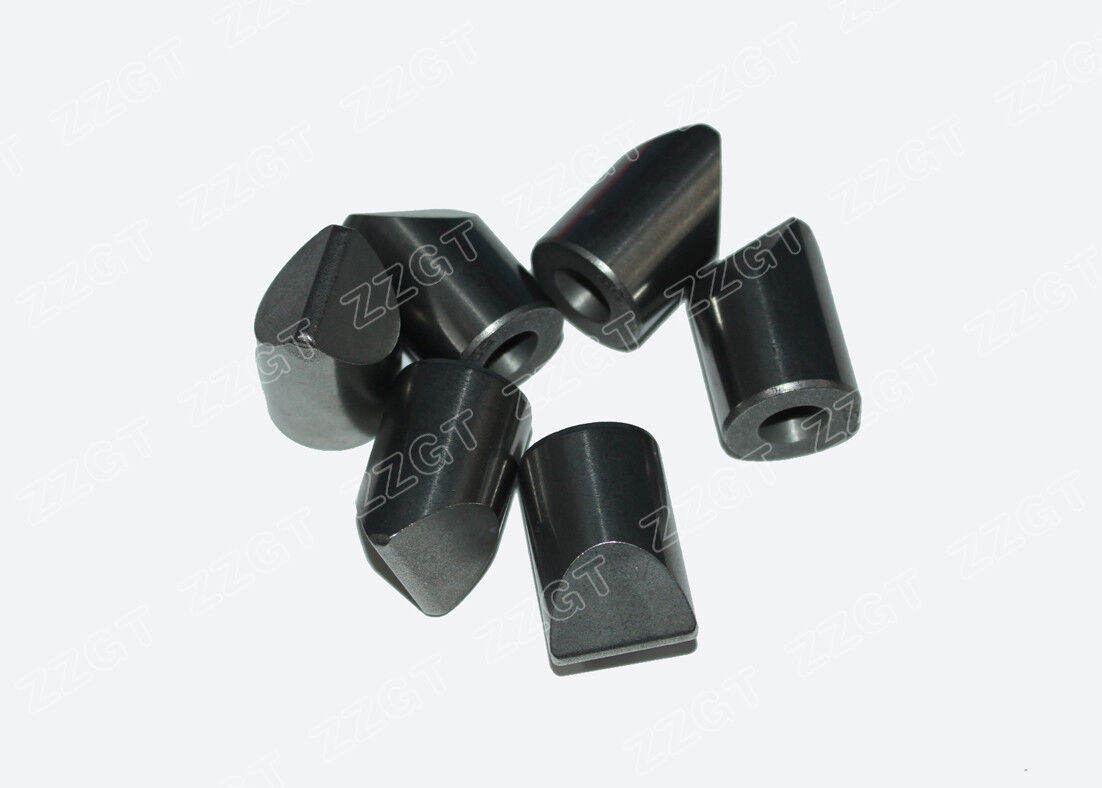

Wear Resistance Diameter 20 Tungsten Carbide Chisel Shaped Inserts For Oil & Gas
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | ZZGT Li |
| Certification: | ISO9001:2015 |
| Model Number: | Dia20x30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Samples are accepted |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Paper box , Wooden Carton or Customized accepted |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 400T/year |
|
Detail Information |
|||
| Material: | Tungsten Carbide With Cobalt | ISO: | K20 |
|---|---|---|---|
| Finished: | Sand Blasted | Application: | Circular Saw Blade |
| High Light: | carbide button bits,tungsten carbide mining bits |
||
Product Description
Wear Resistance Diameter 20 Tungsten Carbide Chisel Shaped Inserts For Oil & Gas
Wear resistance tungsten carbide chisel shaped inserts for oil & gas
About Products:
Cemented carbide inserts are usually used for oil and gas industry. And Having developed a Quality Management System that conforms to the requirements of ISO 9001: 2015, we work within the framework to consistently manufacture tools to meet our customers’ needs.
We can manufacture various shape tungsten carbide inserts
We accept customized size.
Grade Performance
| Tungsten Carbide Cold Forging/heading Dies | |||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended | |
| g/cm³ | MPa | HRA | |||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
| YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. | |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. | |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. | |
| GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. | |
More Details:
Factory Equipments:
There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd
*HIP sintering furnace
*Spraying Draying system
*200T TPA acutomatic press machine
*CNC Grinder
*Spark Erosion machine
*Wire cutting machine,etc
