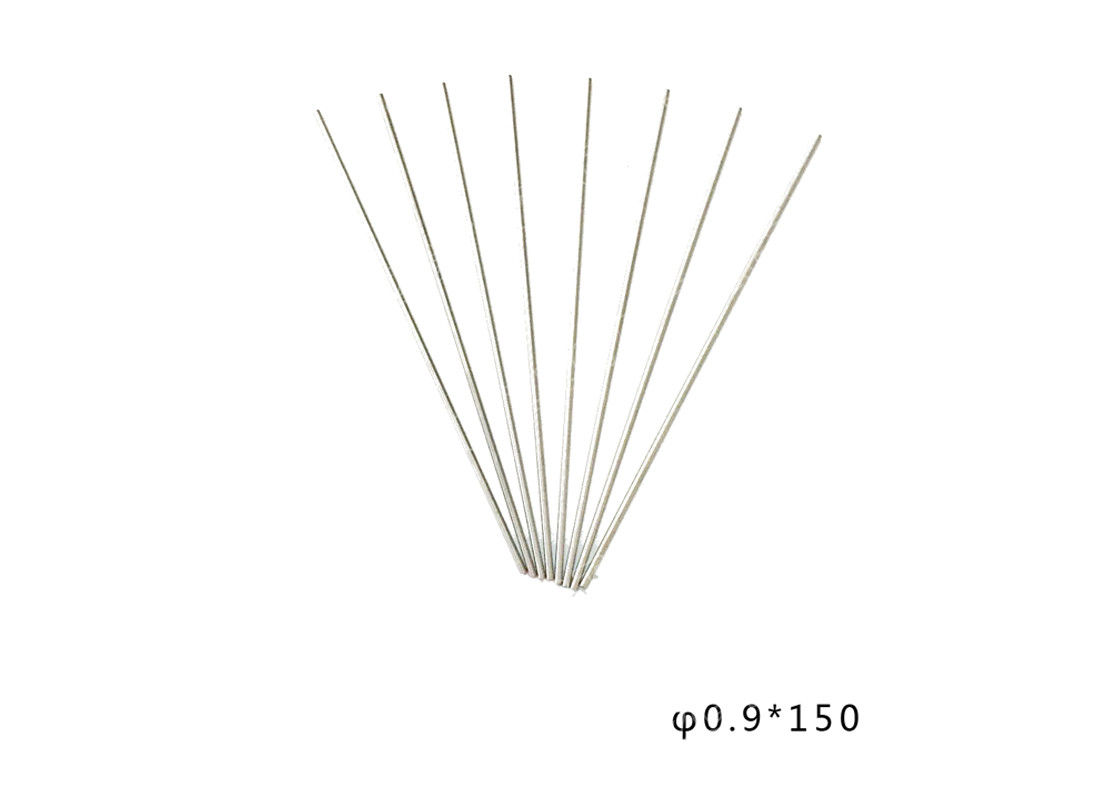

Small Size Diameter 0.3mm 0.9mm Tungsten Carbide Rod With Length 150mm
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | 0.3mm 0.9mm carbide rod |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2000pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | First paper packing each piece then pack into paper boxes or plastic box,next use exported cartons or wooden cases,or packed as |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Material: | Cemented Carbide | Diameter: | 0.3mm 0.9mm |
|---|---|---|---|
| Length: | 150mm | Treatment: | Cryogenic Treatment |
| Stock: | Available | Surface Finish: | 0.4Ra |
| Highlight: | cemented carbide rods,solid carbide rod |
||
Product Description
1.6~10MP Pressure Sintering.
2.h6 Tolerance, Precise Ovality & Straightness.
3.Diameter from 0.3mm to 50mm can make.
4.Length from 100mm to 330mm avaiable or can cut to any size based on customers' request.
5.High hardness,HIP sintering
| Product Name | Tungsten Carbide Rods |
| Material | cemented carbide |
| Size | 0.3mm 0.9mm diameter |
| Size Tolerance | h6 or as customer's request |
| Color | As picture |
| Recommend Grade | K40 etc |
| Grain Size | Fine grain Grain |
| Application | for needle,water meter shaft, plug gauge, engraving knife, micro drill, micro milling etc |
| Processing Treatment | Clean ground and polished or as customer request. |
| Product Features | Long life,good wear resistance and high hardness. |
| Certification | ISO9001 |
Grade Performances:
| ISO Grade | WC % | CO % | Grain Size | Density | Hardness | T.R.S | Applications | ||
| (μm) | g/cm3 | HRA | HRC | HV | N/mm² | ||||
| K40 | 88 | 10 | 0.6 | 14.4 | 91.5 | 79.3 | 1650 | ≥3850 | With high temperature hardness,widely used in needle,water meter shaft, plug gauge, engraving knife, micro drill, micro milling etc |
Size Options:
| Type | OD(MM) | Length(MM) | Un-ground tolerance | Fine ground tolerance | |
| φ0.3~φ50×L | 0.3~50 |
50 100 120 150 200 330 |
-0.00/+0.30 | -0.00+L×1% | h6 |
For any other sizes we are able to custom-made according to clients’ requirements or drawings.
Product Display:
Packing Process:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How can i place an order ?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
Q: What is your terms of delivery ?
A: We accept EXW, FOB, C&F, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Contact us at your free time when you are interested in our products : )
