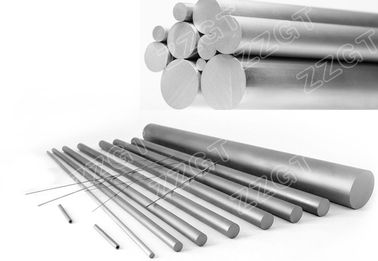

K20 Tungsten Carbide Composite Rods High Hardness For Milling Tools

K20 Tungsten Carbide Composite Rods High Hardness For Milling Tools

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: Gingte Li
Certification: ISO9001:2015
Model Number: φ3*50 or other

Payment & Shipping Terms:

Minimum Order Quantity: 10KGs
Price: negotiable
Packaging Details: First paper packing each piece then pack into paper boxes or plastic box,next use exported cartons or wooden cases,or packed as customers'requirement.
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 400 tons/year
Get Best Price Contact Now

Detail Information

Quality: Can Reach A Mirror Effect Surface After Accurate Grinding And Polishing Equipment: HIP Sintering And Adopt Advanced Automatic Extrusion Equipment To Produce
Size: According To Client's Requirement To Customize Material: Contains 100% Virgin Tungsten And Cobalt
Shipments: Fast Delivery In 7 To 15 Days Service: 24-hour Online After-sale Service
High Light:

cemented carbide rods

,

tungsten carbide bar

,

K20 Tungsten Carbide Rods

Product Description

K20 Tungsten Carbide Composite Rods High Hardness For Milling Tools

                                                     Tungsten Carbide Rods K20 φ3*50 HRA90 for Milling Tools




PRODUCT QUICK DETAILS:

1. Adopt advanced automatic extrusion equipment to product
2. HIP sintering
3. Materials contains 100% virgin tungsten and coblat

PRODUCT FEATURES:

1. Excellent ware resistance and strong rigidity ,combainers high density ,high hard
2. Various grades and types avaible according to client's requirements to customize
3. Surface treament is fine grinding , roughness is 0.4 or others

APPLICATION:

1. With high temperature hardness ,for making drills , end mill reamer taps ,burrs etc .
2. Suitable for glass fiber reinforced plastics, titanium etc and low speed cutting
3. High,strength ,mainly used for stamping tool can withstand great pressure





Product Name Tunsten Carbide Rod
Material cemented carbide
Size  φ3*50 or others available
Size Tolerance h6 or as customer's request
Color As picture
Recommend Grade GF8 etc
Grain Size Medium Grain
Application for milling tools
Processing Treatment Clean ground and polished or as customer request.
Product Features Long life,good wear resistance and high hardness.
Certification ISO9001







Grade Performances:

Carbide Rods Grades for Moulds

Grade ISO Grade WC % CO % Grain Size Density Hardness T.R.S Applications
(μm) g/cm3 HRA HRC HV N/mm²
GF8 K30 92 8 1.6 14.7 90 75.9 1400 ≥3500 Suitable for machining cast iron,aluminum alloy,quenched steels,brass etc,widely used in PCB micro drill and milling tools.
GF20 K40 80 20 1.2 13.7 84.5 66 900 ≥4200 High strength,mainly used for stamping tool can withstand great pressure.



Carbide Rods Grades for Cutting Tools

Grade ISO Grade WC % CO % Grain Size Density Hardness T.R.S Applications
(μm) g/cm3 HRA HRC HV N/mm²
GF6X K10 94 6 0.8 14.9 91.5 78.4 1600 ≥3200 Suitable for steel cast iron,alloy cast iron,refractory steel,alloy steel.
YL10.2 K30 88 10 0.6 14.4 91.5 79.3 1650 ≥3850 With high temperature hardness,widely used in PCB micro drills,for making drills,end mill,reamer,taps,burrs etc.



Size Options:



Type OD(MM) L(MM) Un-ground tolerance Fine ground tolerance
φ1~φ4×L 1~4 38.5 50 100 330 -0.00/+0.30 -0.00+L×1% h6
φ5~φ40×L 5~40 100 310 330 -0.00/+0.6

For any other sizes we are able to custom-made according to clients’ requirements or drawings.



Product Display and Advantages:

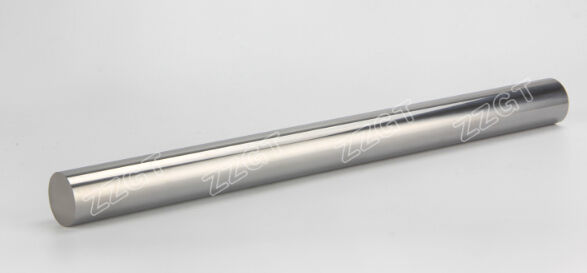

Tungsten Carbide Rods GF8 φ10*100 HRA90 for Milling Tools

Tungsten Carbide Rods GF8 φ10*100 HRA90 for Milling Tools



Packing Process:

Tungsten Carbide Rods GF8 φ10*100 HRA90 for Milling Tools





FAQ:



Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
