Wear Resistant Tungsten Carbide Rod K30 High Toughness For Steel Cast Iron

Wear Resistant Tungsten Carbide Rod K30 High Toughness For Steel Cast Iron

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: Gingte Li
Certification: ISO9001:2015
Model Number: φ20*330 or others

Payment & Shipping Terms:

Minimum Order Quantity: 10KGs
Price: negotiable
Packaging Details: First paper packing each piece then pack into paper boxes or plastic box,next use exported cartons or wooden cases,or packed as customers'requirement.
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 400 tons/year
Get Best Price Contact Now

Detail Information

Quality: Combaines High Density ,high Hard , And High Wear Resistance Size: Item Complete , Large Stock
Equipment: Adopt Advanced Automatic Extrusion Equipment To Produce Technology: Imported Equipment HIP Sinter
Material: Contains 100% Virgin Tungsten And Cobalt Shipments: Some Product Are In Stock For Fast Delivery
High Light:

cemented carbide rods

,

tungsten carbide bar

,

Tungsten Carbide Rod K30

Product Description

Wear Resistant Tungsten Carbide Rod K30 High Toughness For Steel Cast Iron

Tungsten Carbide Ground rods K30 High strength high hardness high toughness for steel cast iron etc





Carbide Rods Descriptions :



Tungsten carbide  gound rods are widely used in welding/ making the drill bits/ endmills / reamers ,automobile special cutters, printed circuit board,special cutters, engine special cutters, Horologe processing special cutters, integral vertical milling cutter,graver and etc. Besides, they can bu used for making of cemented carbide stamping head, Core bar and perforation tools.



Detailed Product Description:

Material: Tungsten Carbide Surface Treatment: Fine Grinding
Applications: For Milling Tools Chemical Composition: WC+Cobalt
Roughness: 0.4 Or Others Shipping Terms: FOB,CIF,C&F Etc By Sea Or By Air
Tolerance: H6




Feastures:

  • No Pore Pressure Sintering
  • High Strength High Hardness High Toughness
  • Item Complete
  • Stock Available
  • Cheap price

Product Name Tunsten Carbide Rod
Material cemented carbide
Size  φ20*330 or others available
Size Tolerance h6 or as customer's request
Color As picture
Recommend Grade GF8 etc
Grain Size Medium Grain
Application for milling tools
Processing Treatment Clean ground and polished or as customer request.
Product Features Long life,good wear resistance and high hardness.
Certification ISO9001







Grade Performances



Grade ISO Grade WC % CO % Grain Size Density Hardness T.R.S Applications
(μm) g/cm3 HRA HRC HV N/mm²
GF8 K30 92 8 1.6 14.7 90 75.9 1400 ≥3500 Suitable for machining cast iron,aluminum alloy,quenched steels,brass etc,widely used in PCB micro drill and milling tools.
GF20 K40 80 20 1.2 13.7 84.5 66 900 ≥4200 High strength,mainly used for stamping tool can withstand great pressure.





Grade ISO Grade WC % CO % Grain Size Density Hardness T.R.S Applications
(μm) g/cm3 HRA HRC HV N/mm²
GF6X K10 94 6 0.8 14.9 91.5 78.4 1600 ≥3200 Suitable for steel cast iron,alloy cast iron,refractory steel,alloy steel.
YL10.2 K30 88 10 0.6 14.4 91.5 79.3 1650 ≥3850 With high temperature hardness,widely used in PCB micro drills,for making drills,end mill,reamer,taps,burrs etc.



Size Options:



Type OD(MM) L(MM) Un-ground tolerance Fine ground tolerance
φ1~φ4×L 1~4 38.5 50 100 330 -0.00/+0.30 -0.00+L×1% h6
φ5~φ40×L 5~40 100 310 330 -0.00/+0.6

For any other sizes we are able to custom-made according to clients’ requirements or drawings.





Product Display and Advantages:

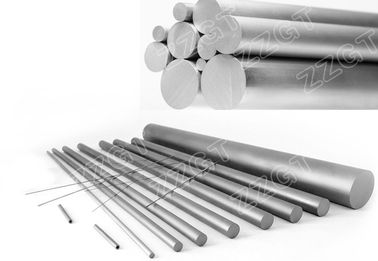

Wear Resistant Tungsten Carbide Rod K30 High Toughness For Steel Cast Iron 0

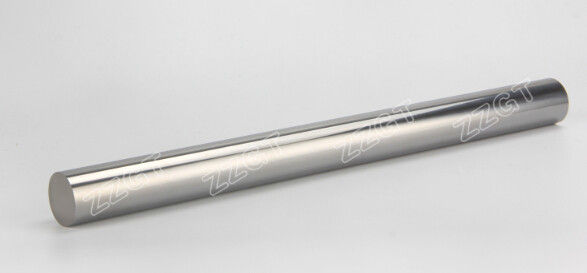

Tungsten Carbide Rods GF8 φ10*100 HRA90 for Milling Tools



Packing Process:



Tungsten Carbide Rods GF8 φ10*100 HRA90 for Milling Tools





FAQ



Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
