• Sharp Edge Tungsten Carbide Slitting Blade
Sharp Edge Tungsten Carbide Slitting Blade

Sharp Edge Tungsten Carbide Slitting Blade

Product Details:

Place of Origin: ZhuZhu , Hunan , China
Brand Name: Gingte Li
Certification: ISO9001:2015
Model Number: φ200*φ70*3.5 or others

Payment & Shipping Terms:

Minimum Order Quantity: 10KGs
Price: negotiable
Packaging Details: Rubber protector for cutting edges, then packed into custom case
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 400 tons/year
Get Best Price Contact Now

Detail Information

Quality: HIP Sintering High Hardness And Wear Resistance Technology: Imported Equipment HIP Sinter
Service: 24-hour Online After-sale Service Material: 100% Virgin Tungsten And Cobalt
Size: Various Size And Grade For Choose Shipments: Fast Delivery In 7 To 15 Days
High Light:

tungsten carbide cutting wheel


tungsten carbide wheel cutter


Sharp Edge Tungsten Carbide Slitting Blade

Product Description

Sharp Edge Tungsten Carbide Slitting Blade

Sharp Edge Tungsten Carbide Slitting Blade For PCB Cut Foot Machine




1. Material :contains 100% virgin tungsten and cobalt wit submicon grain size

2. Quality: long life with super resistance to heat , wear and abrasion

3. Technology:HIP sintering and precision grinding

4. Grade: have various grade and size for choose

5. Price:cheap price with comptitive wholesale price

6. packaging:convenient packaging with standard export packing or according the needs of customet's

7. shipping terms:FOB CIF C&F Etc by sea or air



Carbide Slitting Blade Description :

Tungsten carbide disc cutter is applied  in various aspects  up to a diameter from 200m

m to 355mm  with a thickness range of 0.6mm to 4mm. Application in a wide range including cigarette machinery, corrugated box packaging, paper core or tissue cutting, foam, fabric cutting, metal slitting, rubber, tire, plastic, medical, meat & poultry processing, wood working,disc saw blade in electical line and many more.


Product Name Tunsten Carbide Disc Cutter
Material cemented carbide
Size φ200*φ70*3.5 or others available
Size Tolerance Free tolerance or as customer's request
Color As picture
Recommend Grade GD20A GD30A etc
Grain Size Medium and Fine Grain
Application Mainly for cutting  PCB Board etc
Processing Treatment Clean ground and polished or as customer request.
Product Features Long life,good versatility,good wear resistance.
Certification ISO9001




Grade Performances:


Grade ISO Grade WC % CO % Grain Size Density Hardness T.R.S Applications
(μm) g/cm3 HRA HRC HV N/mm²
GD10 K20 91.5 8.5 1.6 14.3 89.5 75.1 1370 ≥3000 Suitable for machining cast iron,non-ferrous metals,alloy steel,stainless steel,titanium,refractory alloy,widely used in watch industry,glasses industry,for cutting PCB board,with good versatility.
GD15 K20 91.8 8.2 1.6 14.5 89.5 75.1 1370 ≥3000
GD20 K20 92 8 1.2 14.6 90 75.9 1430 ≥3000
GD20A K10 92 8 1 14.6 90.5 77 1500 ≥3200
GD30A K10 92.2 7.8 1 14.7 90.5 77 1500 ≥3300
GD35A K10 91 9 0.8 14.6 91 77.5 1550 ≥3500



Size Options:


Size OD (mm) ID (mm) T (mm)
φ200×φ70×T 200 70 3.0-4.6
φ250×φ71×T 250 70 3.0-4.6
φ355.6×φ254×T 355.6 254 5-10
...... ...... ...... ......

For any other sizes we are able to custom-made according to clients’ requirements or drawings.



Product Display:

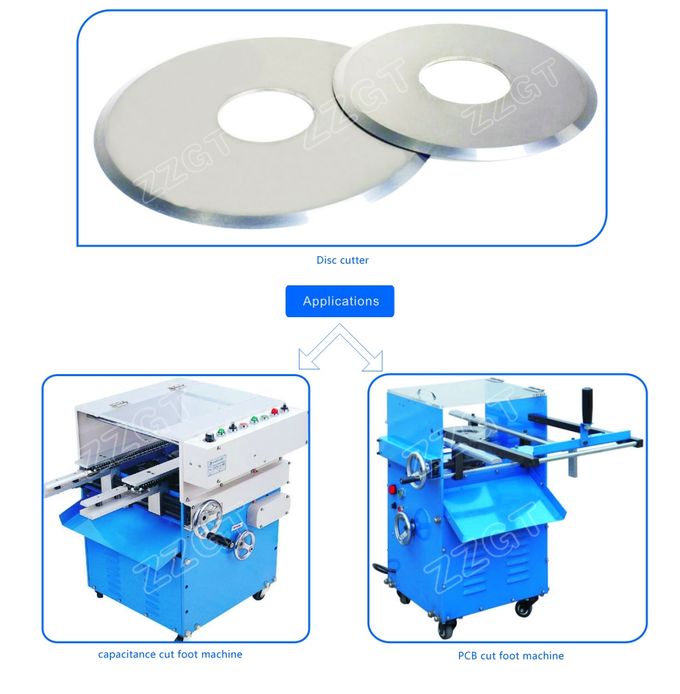

Tungsten Carbide Disc Cutter φ200*φ70*3.5 for Cutting PCB Board


Packing Process:

Tungsten Carbide Disc Cutter φ200*φ70*3.5 for Cutting PCB Board





Q: Are you trading company or manufacturer ?

A: We are factory.


Q: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.


Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.


Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
