Long Life 19mm Tungsten Carbide Disc
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | φ19*φ2.6*3.3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10KGs |
|---|---|
| Price: | negotiable |
| Packaging Details: | First paper packing each piece then pack into paper boxes,next use exported cartons or wooden cases,or packed as customers'requirement. |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Material: | Tungsten Carbide | Applications: | For Dry Spray Nozzles |
|---|---|---|---|
| Chemical Composition: | WC+Cobalt | Surface: | Sandblasting And Unground Condition |
| Shipping Terms: | FOB,CIF,C&F Etc By Sea Or By Air | Smooth Finish: | 1.6 |
| Sintering: | HIP Treatment | Sample: | Available |
| High Light: | cemented carbide orifice,tungsten carbide tools |
||
Product Description
Long Life 19mm Tungsten Carbide Disc
19mm Tungsten Carbide Orifice Disc in 2.6mm Hole with Good Wear Resistance
Item Features :
• Highest grades of raw material tungsten carbide
• This tungsten carbide Orifice Disc is sintered condition,our factory also can provide a fine finish based on customer's tolerance request.
• wear resistant tungsten carbide orifice insert provides long wear life.
• Provide wide range of assemblies and extensions.
Use Range:
• Dry Spraying
• Paint spraying
• Automotive sealants and protective coatings
• Airless paint spraying
• Applying slurry to ceramic tiles
Product Specifications:
| Product Name | tungsten carbide orifice disc |
| Material | tungsten carbide |
| Size | φ19*φ2.6*3.3 or others |
| Size Tolerance | OD: ±0.2 ID:0~-0.1 Thickness: 0~+0.3 |
| Color | as picture |
| Recommend Grade | YG8 ( 89.5HRA ) |
| Grain Size | Medium |
| Application | for Chemical Processing Industry |
| Processing Treatment | unground |
| Product Features | Wear resistance,long life |
| Certification | ISO9001 |
Size Chart :
| Sr No. | Size(mm) | ||
| OD | ID | Thickness | |
| 1 | 19 | 1 | 3.3~3.6 |
| 2 | 19 | 1.6 | |
| 3 | 19 | 1.8 | |
| 4 | 19 | 2 | |
| 5 | 19 | 2.2 | |
| 6 | 19 | 2.3 | |
| 7 | 19 | 2.4 | |
| 8 | 19 | 2.5 | |
| 9 | 19 | 2.6 | |
| 10 | 19 | 2.8 | |
| 11 | 19 | 3 | |
| 12 | 19 | 3.5 | |
| ………… | |||
For any other sizes we are able to custom-made according to clients’ requirements or drawings.

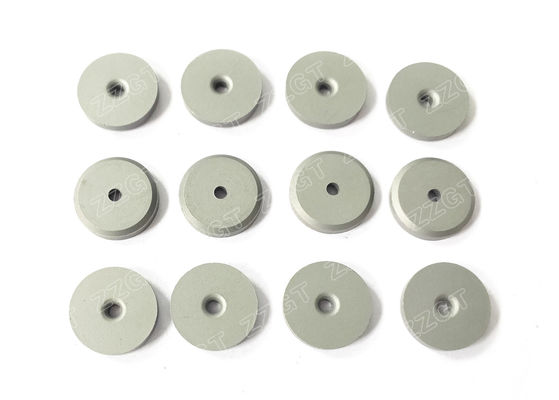

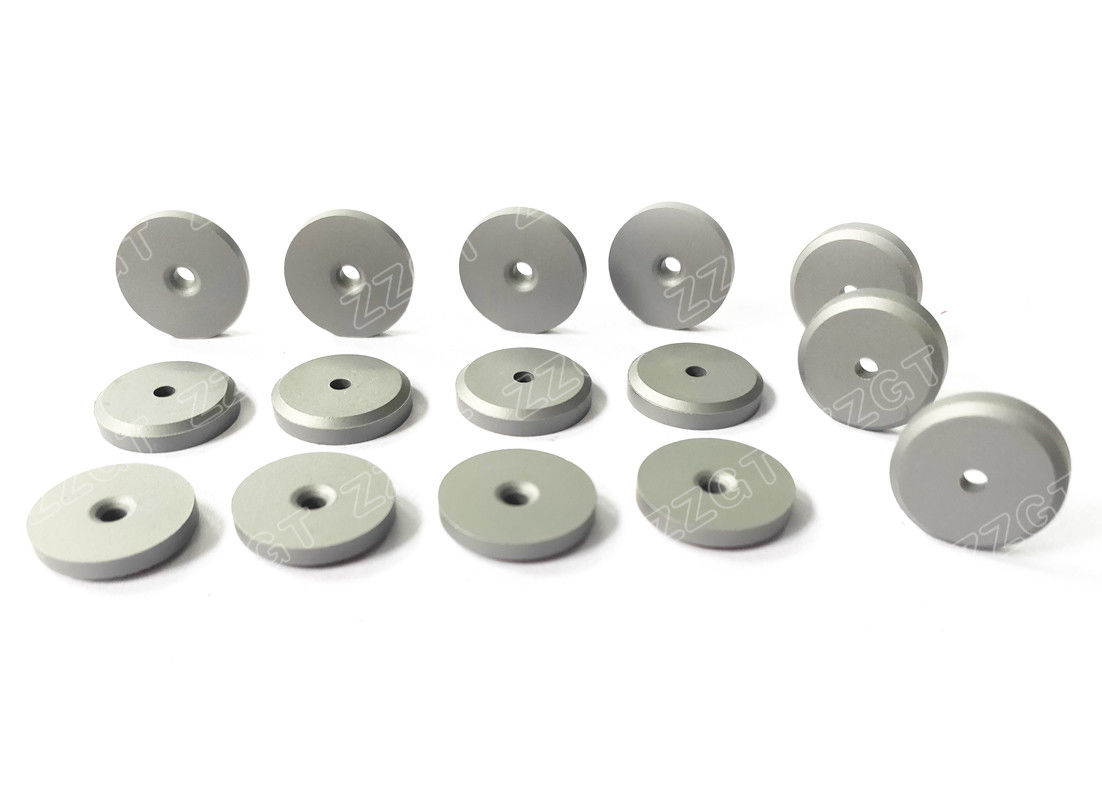

Product Picture:
Application Show (Spraying):
Packing Process:
Packing Details : In cartons,wooden boxes,plastic boxes or customized.
